VISION TOUCH WELLNESS
Power supply
Voltage
Max power consumption (electronic controller only) ~ 15 VA
Climatic conditions
Operating temperature
Storage temperature
Relative ambient humidity
General features
Type of connectable probes (temperature)
Resolution (ambient temperature)
Precision of probe detection (ambient temperature) ± 0,5°C
Reading range
Humidity probe
Precision of humidity probe detection
Range of humidity probe detection
Output features
Description
Output 3-4
11 outputs from 5 to 26
(see connections diagram)
Dimensional features
Dimensions 100N MASTER
Dimensions VISION TOUCH
Insulation and mechanical properties
Degree of protection of display
Material of box
USER AND MAINTENANCE MANUAL
Pag. 8

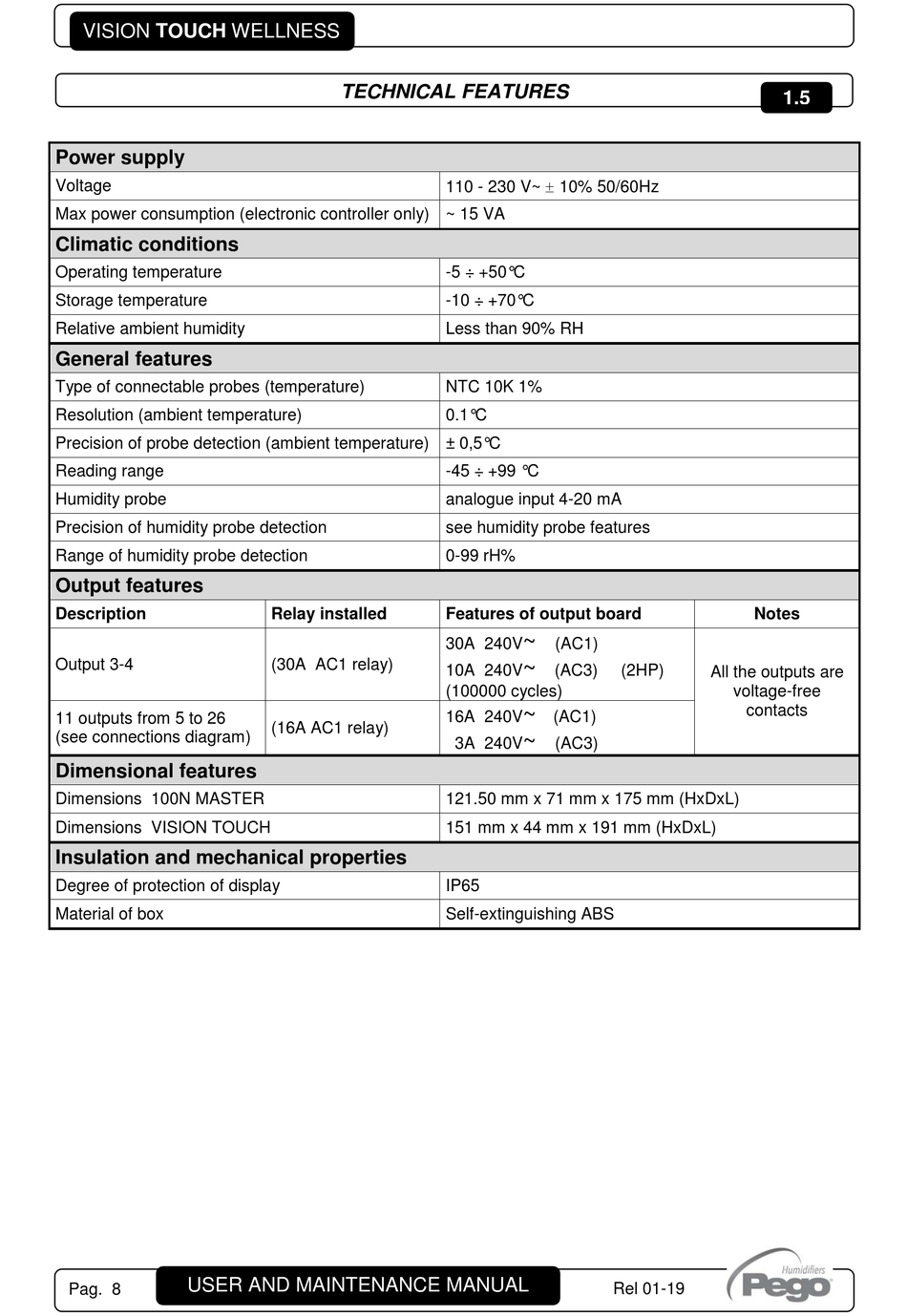

TECHNICAL FEATURES

Relay installed
(30A AC1 relay)
(16A AC1 relay)
110 - 230 V~  10% 50/60Hz
-5 ÷ +50°C
-10 ÷ +70°C
Less than 90% RH
NTC 10K 1%
0.1°C
-45 ÷ +99 °C
analogue input 4-20 mA
see humidity probe features
0-99 rH%
Features of output board
~
30A 240V (AC1)
~
10A 240V (AC3)
(100000 cycles)
~
16A 240V (AC1)
~
3A 240V (AC3)
121.50 mm x 71 mm x 175 mm (HxDxL)
151 mm x 44 mm x 191 mm (HxDxL)
IP65
Self-extinguishing ABS
Rel 01-19
1.5
Notes
(2HP)
All the outputs are
voltage-free
contacts
