ECP 200 BASE 2 / 4
USE AND MAINTENANCE MANUAL
REV. 01-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECP200 BASE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pego ECP200 BASE Series

Summary of Contents for Pego ECP200 BASE Series

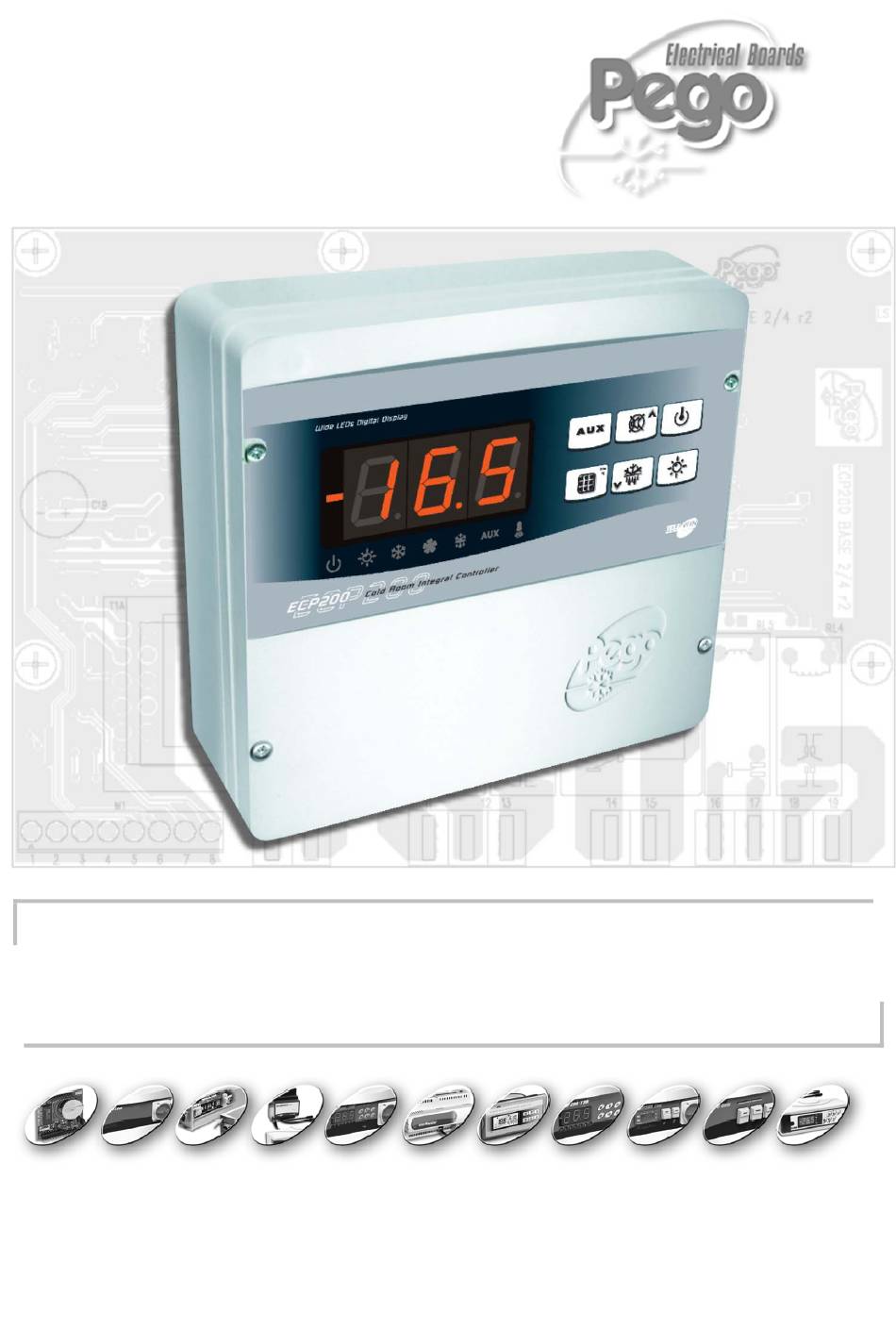

  • Page 1 ECP 200 BASE 2 / 4 USE AND MAINTENANCE MANUAL REV. 01-09...
  • Page 2 ECP200 BASE 2/4...

  • Page 3: Table Of Contents

    ECP200 BASE 2/4 CONTENTS INTRODUCTION CHAP. 1 Page 4 General Page 4 Product ID codes Page 5 Overall dimensions Page 5 Identification data INSTALLATION CHAP. 2 Page 6 Important information for the installer Page 6 Standard assembly kit Page 7 Installing the unit FUNCTIONS CHAP.

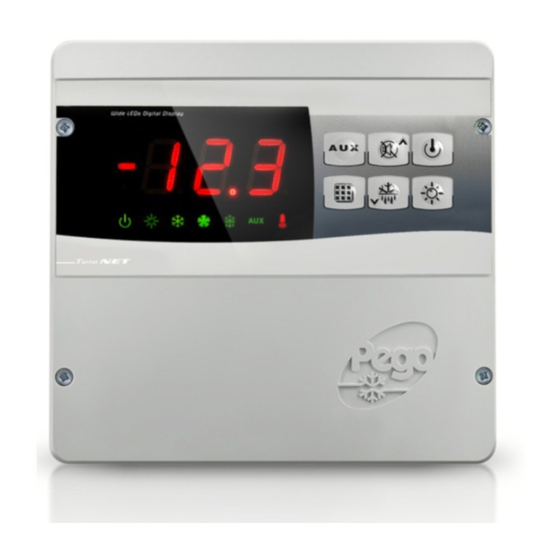

  • Page 4 ECP200 BASE 2/4 CHAPTER 1: INTRODUCTION GENERAL The electronic controllers of the ECP200 BASE series have been designed to control static or ventilated cold rooms. The ECP200 BASE 4 electronic board allows the user to control all the components on a refrigeration unit such as compressor, evaporator fans, defrosting elements and cold room light.
  • Page 5 CHAP. 1 - Introduction ECP200 BASE 2/4 OVERALL DIMENSIONS IDENTIFICATION DATA The unit described in this manual has an ID plate on the side showing all the relevant identification data: • Name of Manufacturer • Code and model of unit electrical board •...

  • Page 6: Installation

    CHAP. 2 - Installation ECP200 BASE 2/4 CHAPTER 2: INSTALLATION IMPORTANT INFORMATION FOR THE INSTALLER 1. Install the device in places where the protection rating is observed and try not to damage the box when drilling holes for wire/pipe seats. 2.
  • Page 7 CHAP. 2 - Installation ECP200 BASE 2/4 INSTALLING THE UNIT Fig. 1: Undo the 4 screws on the front of the panel. Fig. 2: Use the three existing holes to fix the box back panel to the wall: use three screws of a length suitable for the thickness of the wall to which the panel will be attached.

  • Page 8: Functions

    CHAP. 3 - Functions ECP200 BASE 2/4 CHAPTER 3: FUNCTIONS ECP200 BASE PANEL FUNCTIONS Display and adjustment of cold room temperature accurate to 0.1 °C. Display of evaporator temperature from parameter System control activation/deactivation System warnings (probe/sensor errors, minimum and maximum temperature warnings, compressor shutdown) Evaporator fans control Automatic and manual defrost (static, heating element, cycle inversion)

  • Page 9: Technical Characteristics

    CHAP. 4 - Technical characteristics ECP200 BASE 2/4 CHAPTER 4: TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS Power supply 230 V~ ± 10% 50/60 Hz Voltage Max power ~ 7 VA Cold room conditions Working temperature -5 - 60°C Storage temperature -10 - 70°C Relative humidity Less than 90% General characteristics...
  • Page 10 ECP200 BASE 2/4 WARRANTY The electronic controllers in the ECP200 BASE series are covered by a 24-month warranty against all manufacturing defects, valid from date of delivery. If the system malfunctions as a result of tampering, impact or improper installation the warranty will automatically be rendered null and void.

  • Page 11: Parameter Programming

    CHAP. 5 – Parameter programming ECP200 BASE 2/4 CHAPTER 5: PARAMETER PROGRAMMING CONTROL PANEL FRONT KEYPAD key: AUXILIARY RELAY CONTROL (on the version with alarm relay controls the relay manual if parameter AU=1) key: UP / MUTE WARNING BUZZER key: STAND BY (if the system shuts down the LED flashes) key: room temperature SETTING key: DOWN / MANUAL DEFROST key: ROOM LIGHT...
  • Page 12 CHAP. 5 - Programmazione dati ECP200 BASE 2/4 LED DISPLAY 1. Cold room temperature / parameters 2. Stand-by (flashes on stand-by. Outputs are deactivated) 3. Room light (flashes if door switch activated) 4. Cold (indicates activation of compressor) 5. Fans 6.
  • Page 13 CHAP. 5 – Parameter programming ECP200 BASE 2/4 GENERAL To enhance safety and simplify the operator’s work, the ECP200 BASE system has two programming levels; the first level (Level 1) is used to configure the frequently-modified SETPOINT parameters. The second programming level (Level 2) is for general parameter programming of the various controller work modes.
  • Page 14 CHAP. 5 - Programmazione dati ECP200 BASE 2/4 LEVEL 1 PROGRAMMING (User level) To gain access to the Level 1 configuration menu proceed as follows: 1. Press the (t) and (u) keys simultaneously and keep them pressed for a few seconds until the first programming variable appears on the display.
  • Page 15 CHAP. 5 - Parameter programming ECP200 BASE 2/4 LIST OF LEVEL 1 VARIABLES (User level) VARIABLES MEANING VALUE DEFAULT Temperature difference compared to main SETPOINT 0.2 - 10 °C 2°C Defrost interval (hours) 0 - 24 hours 4 hours End-of-defrost setpoint. Defrost is not executed if the temperature read by the defrost sensor is greater than d2 -35 - 45 °C...
  • Page 16 CHAP. 5 - Data programming ECP200 BASE 2/4 LEVEL 2 PROGRAMMING (Installer level) To access the second programming level press the UP (t) and DOWN (u) keys and the LIGHT key simultaneously for a few seconds. When the first programming variable appears the system automatically goes to stand-by. 1.
  • Page 17 CHAP. 5 - Data programming ECP200 BASE 2/4 Compressor safety time for door switch: when the door is opened the evaporator fans shut down and the 0…5 minutes compressor will continue working for time doC, after which it will shut down. FAN shutdown TEMPERATURE The fans will stop if the temperature value -45…+45°C...
  • Page 18 CHAP. 5 – Parameter programming ECP200 BASE 2/4 SWITCHING ON THE ECP200 BASE ELECTRONIC CONTROLLER 5.11 After wiring the electronic controller correctly, power up at 230 V AC; the display panel will immediately emit a beep and all the LEDs will come on simultaneously for a few seconds. COMPRESSOR ACTIVATION/DEACTIVATION CONDITIONS 5.12 The ECP200 BASE controller activates the compressor when cold room temperature...
  • Page 19 CHAP. 5 - Parameter programming ECP200 BASE 2/4 HOT GAS DEFROSTING 5.14 Set parameter d1 =1 to defrost in cycle inversion mode. The compressor relay and defrost relay are activated throughout the defrost phase. To ensure proper control of the system the installer must use the defrost output: this must allow opening of the cycle inversion solenoid valve and closure of the liquid solenoid valve.

  • Page 20: Optional Kits

    CHAP. 6 - Optional kits ECP200 BASE 2/4 CHAPTER 6: OPTIONAL KITS TeleNET MONITORING/SUPERVISION SYSTEM For connections regarding the monitoring/supervision system see APPENDIX TeleNET A.10 (page 32) of this manual and, for the ECP200 BASE4A and ECP200 BASE2A models, jumper JP2 as described in 6.2 on page 21. TeleNET SYSTEM USE AND MAINTENANCE MANUAL...
  • Page 21 CHAP. 6 - Optional kits ECP200 BASE 2/4 ALARM RELAY / TeleNET SWITCHING Fig. 1: Undo the 4 closure screws on the front panel. Fig. 3: Undo the 6 CPU board fixing screws and remove the board from the frontal section of the box in ABS. Fig.

  • Page 22: Troubleshooting

    CHAP. 7 - Troubleshooting ECP200 BASE 2/4 CHAPTER 7: TROUBLESHOOTING TROUBLESHOOTING In the event of any anomalies the ECP200 system warns the operator by displaying alarm codes and sounding the warning buzzer inside the control panel. If an alarm is tripped the display will show one of the following messages.

  • Page 23: Allegati / Appendices

    Allegati / Appendices ECP200 BASE 2/4 ALLEGATI / APPENDICES DICHIARAZIONE DI CONFORMITA’ CE COSTRUTTORE / MANUFACTURER PEGO SRL Via Piacentina,6b 45030 Occhiobello (RO) - ITALY DENOMINAZIONE DEL PRODOTTO / NAME OF THE PRODUCT MOD.: ECP200 BASE 2 - ECP200 BASE 2 A - ECP200 BASE 4 - ECP200 BASE 4 A IL PRODOTTO E’...
  • Page 24 Allegati / Appendices ECP200 BASE 2/4 ECP200 BASE4 WIRING DIAGRAM USE AND MAINTENANCE MANUAL Page 24 Rev. 01-09...

  • Page 25: Ecp200 Base4A Wiring Diagram

    Allegati / Appendices ECP200 BASE 2/4 ECP200 BASE4A WIRING DIAGRAM Opzionale (Vedi capitolo opzioni) USE AND MAINTENANCE MANUAL Page 25 Rev. 01-09...

  • Page 26: Ecp200 Base2 Wiring Diagram

    Allegati / Appendices ECP200 BASE 2/4 ECP200 BASE2 WIRING DIAGRAM USE AND MAINTENANCE MANUAL Page 26 Rev. 01-09...

  • Page 27: Ecp200 Base2A Wiring Diagram

    Allegati / Appendices ECP200 BASE 2/4 ECP200 BASE2A WIRING DIAGRAM Opzionale (Vedi capitolo opzioni) USE AND MAINTENANCE MANUAL Page 27 Rev. 01-09...

  • Page 28: Connection Example (1) - Ecp200 Base4 /Base4A

    Allegati / Appendices ECP200 BASE 2/4 CONNECTION EXAMPLE (1) - ECP200 BASE4 /BASE4A Connection with outputs powered for direct control of functions. USE AND MAINTENANCE MANUAL Page 28 Rev. 01-09...

  • Page 29: Connection Example (2) - Ecp200 Base4 /Base4A

    Allegati / Appendices ECP200 BASE 2/4 CONNECTION EXAMPLE (2) - ECP200 BASE4 /BASE4A Mixed connection with on/off contact to enable towards condensing unit power board and fan, light and defrost outputs powered for direct control. USE AND MAINTENANCE MANUAL Page 29 Rev.

  • Page 30: Connection Example (3) - Ecp200 Base2 /Base2A

    Allegati / Appendices ECP200 BASE 2/4 CONNECTION EXAMPLE (3) - ECP200 BASE2 /BASE2A Connection with outputs powered for direct control of functions. USE AND MAINTENANCE MANUAL Page 30 Rev. 01-09...

  • Page 31: Connection Example (4) - Ecp200 Base2 /Base2A

    Allegati / Appendices ECP200 BASE 2/4 CONNECTION EXAMPLE (4) - ECP200 BASE2 /BASE2A Mixed connection with on/off contact powered to enable towards room power board and light output powered for direct control. USE AND MAINTENANCE MANUAL Page 31 Rev. 01-09...

  • Page 32: Telenet Network Connection Diagram

    Allegati / Appendices ECP200 BASE 2/4 TeleNET NETWORK CONNECTION WIRING DIAGRAM A.10 BEFORE CONNECTING UP COMMUTATE THE DATAPRINTER PLUS (PRINTER) / TeleNET FUNCTION VIA DIP-SWITCH AS INDICATED IN CHAP. 6, PAGE 23. Morsettiera di collegamento TeleNET Terminal block TeleNET connection USE AND MAINTENANCE MANUAL Page 32 Rev.

  • Page 33: Schint230 Optional Kit

    Allegati / Appendices ECP200 BASE 2/4 SCHINT230 OPTIONAL KIT A.11 With the optional SCHINT230 KIT is possible a simple connection with outputs powered for direct control of functions. SCHINT230 optional kit Outputs powered for Power supply Digital input and direct control of functions. 230Vac 50Hz probe connections Connect the ECP BASE terminal block to the SCHINT230 terminal block with the wire kit .

  • Page 34: Schint230 Optional Kit Wiring Diagram

    Allegati / Appendices Allegati / Appendices ECP200 BASE 2/4 SCHINT230 OPTIONAL KIT WIRING DIAGRAM A.12 USE AND MAINTENANCE MANUAL Page 34 Rev. 01-09...
  • Page 35 ECP200 BASE 2/4 NOTE USE AND MAINTENANCE MANUAL Page 35 Rev. 01-09...
  • Page 36 ECP200 BASE 2/4 PEGO S.r.l. Distributor: Via Piacentina, 6/b 45030 OCCHIOBELLO –ROVIGO- Tel : 0425 762906 Fax: 0425 762905 www.pego.it USE AND MAINTENANCE MANUAL Page 36 Rev. 01-09 e-mail: info@pego.it...
