- Analogue outputs test
The "Analogue outputs test" allows to manually force the analogue outputs of the
connected 100N MASTER3, by setting the values manually between 0 and 10V. Access to
this menu put the control unit in "Stand by": the time progress of an ongoing program is not
altered but all output functions are disabled.
The function associated to each digital output can be set in "Parameters" => "Configure
I/O" => "Analogue outputs".

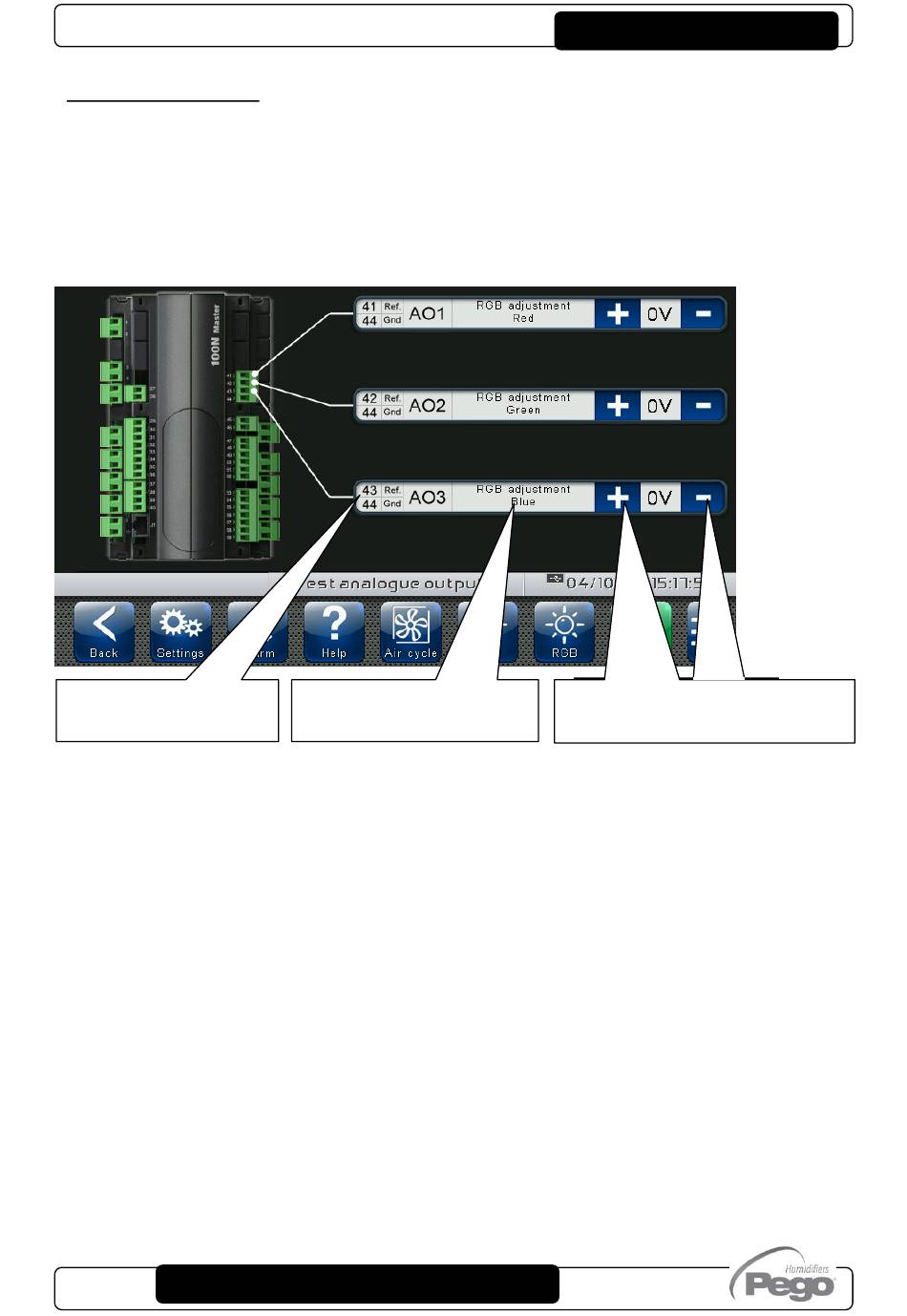

Connection
Output description
Increase (+) / Decrease (-) the
value of an analogue output
terminals
USER AND MAINTENANCE MANUAL
Pag. 63
Rel 01-19
