- Page 1 ELECTRONIC KIT 400HUM2ESXX / 400KHUM2ESXX REV. 01-11 INSTALLATION MANUAL...
- Page 2 TABLE OF CONTENTS INTRODUCTION CHAP. 1 Page 2 Generality CONFIGURATION CHAP. 2 Page 3 Hardware configuration Page 4 Software configuration SETTING DEFAULT VALUES CHAP. 3 Page 5 1st level values Page 5 2nd level values HUM2ESXX CONFIGURATION Page...

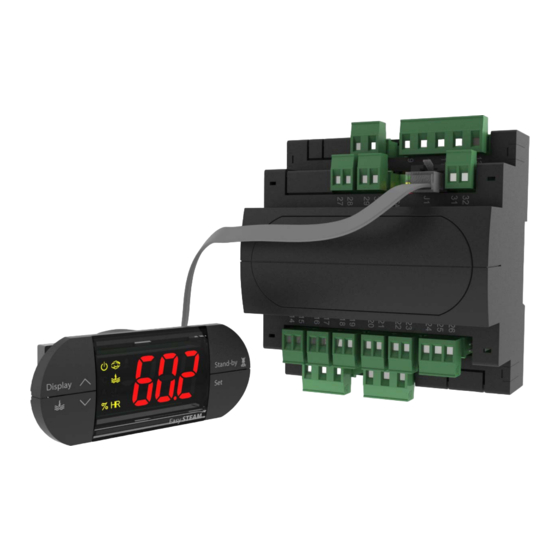

- Page 3 The 400HUM2ESXX electronic kit comes without the display. If needed the display can be added further on. PEGO order code Description 400KHUM2ESXX KIT Master HUM2 + NANO Display + cable + TA...
- Page 4 CHAP.2 CONFIGURATION HARDWARE CONFIGURATION Remove the cover over the front hole of the Master HUM2. The Jumper J2 with sensitivity configuration TA can now be accessed through the hole below. Set the jumper J2 (fig.1) in the position corresponding to the humidifier model according to 1. (fig.1) Jumper J2 has 2 possible positions;...
- Page 5 SOFTWARE CONFIGURATION Software is configured by setting the hidden parameter I1. This parameter allows you to vary the nominal absorbed current value while the machine is operating. Parameter I1 is the fulcrum upon which correct reading of amperometric absorption is developed and ensuing software processing. In order to access this parameter, connect the NANO EasySTEAM display and keep the UP button pressed on the controller keyboard while the machine is without electrical power.
- Page 6 CHAP. 3 SETTING DEFAULT VALUES LEVEL VALUES 1. 1 level default values are the same for all humidifier models. 2. To access the first level programming menu follow the instructions below: - Simultaneously keep keys UP (5) and DOWN (6) pressed until the first programming variable appears on the display.
- Page 7 - To exit the menu once the configuration values are set, simultaneously keep keys (5) and (6) pressed for a few seconds until the cell humidity value appears again (displays 0.0 if ON/OFF). Memorisation of the amendments made to the variables will happen automatically when exiting the configuration menu.
- Page 8 Tel. +39 0425 762906 Fax +39 0425 762905 e.mail: info@pego.it – www.pego.it Dealer: Document code: 400 HUM2ESXX ELECTRONIC KIT rel. 01-11 ITA PEGO s.r.l. reserves the right to make amendments to this use manual at any moment. HUM2ESXX CONFIGURATION Page...
