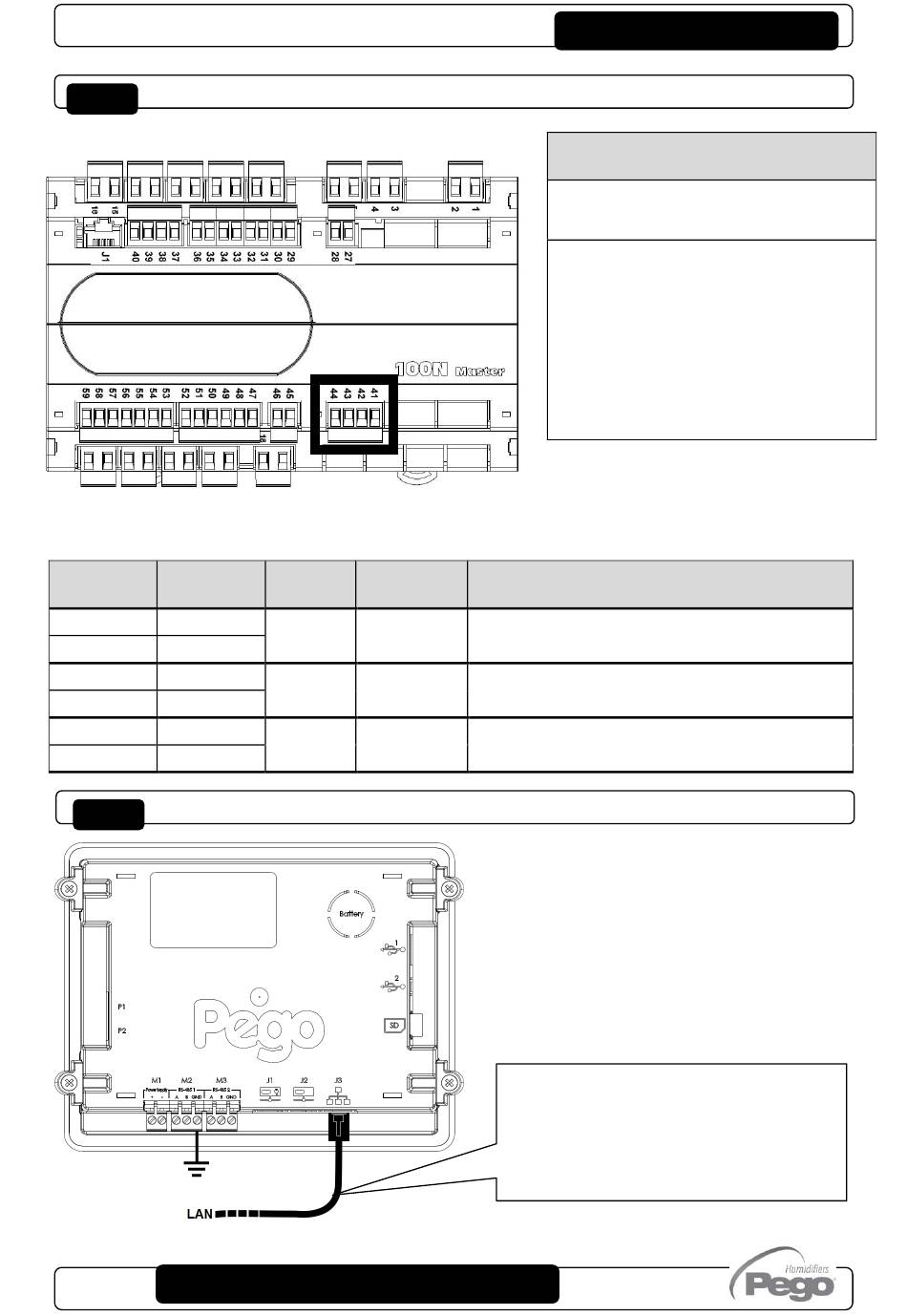

ANALOGUE OUTPUT CONNECTION ON 100N MASTER3
3.5
PIN DESCRIPT.
TERMINALS TERMINALS
41 Ref.
44 Gnd
42 Ref.
44 Gnd
43 Ref.
44 Gnd
3.6
USER AND MAINTENANCE MANUAL
Pag. 17
TYPE OF ANALOGUE
SIGNAL OUTPUT
0-10V AO1
0-10V AO2
0-10V AO3
ETHERNET CONNECTION ON VISION TOUCH
VISION TOUCH WELLNESS
POSSIBLE CONFIGURATIONS
ANALOGUE OUTPUTS AO1
Parameters >Configure I/O >analogue outputs
0 = Disabled
1 = RGB light control - red
2 = RGB light control - green
3 = RGB light control - blue
DEFAULT SETTINGS
ANALOGUE OUTPUTS
1 = RGB light control – red
2 = RGB light control – green
3 = RGB light control – blue
Connect the Ethernet cable with
RJ45 connector to the J3 input of the
Vision Touch console. Connect the
other end of the cable to the existing
LAN or to the PC.
