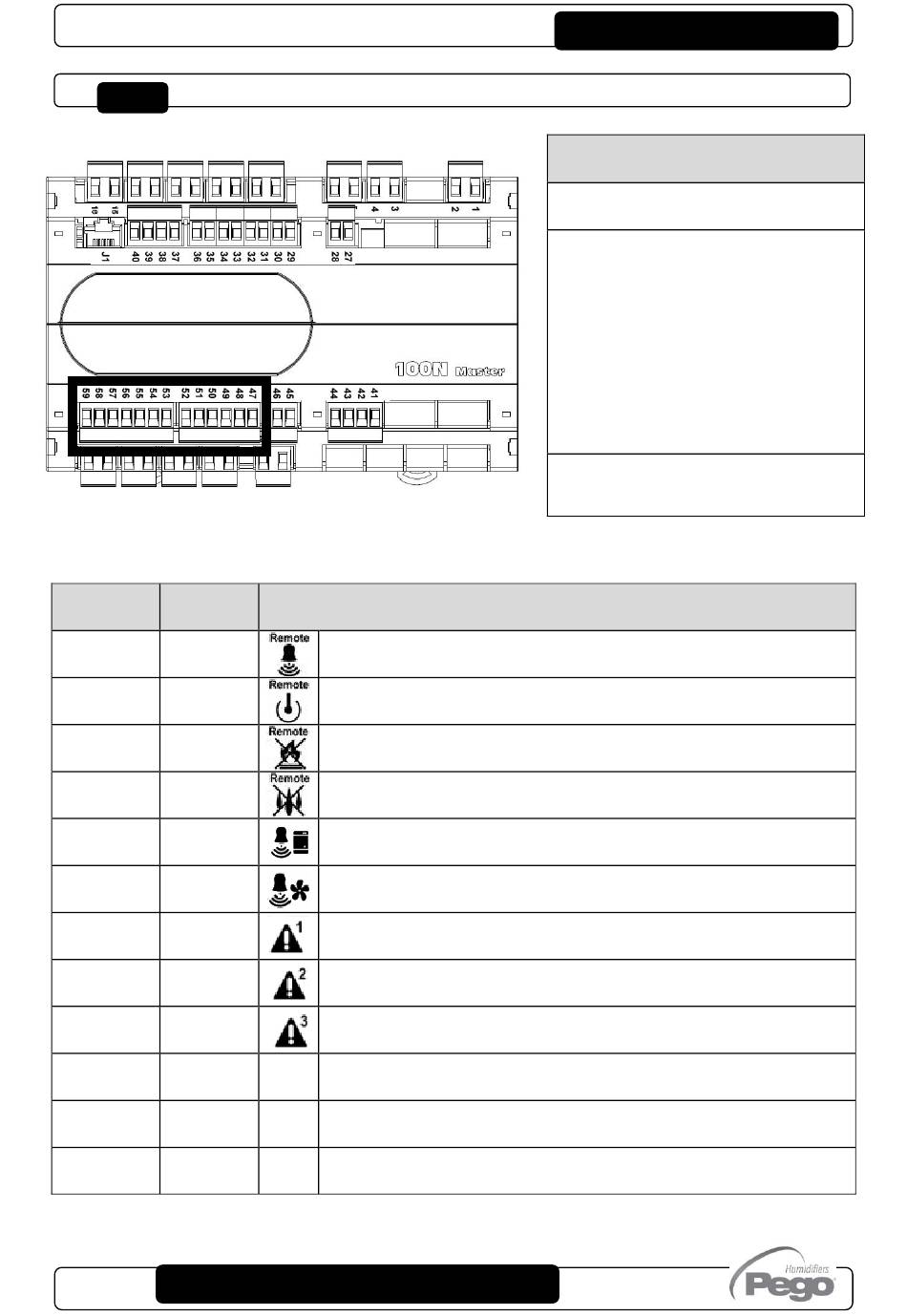

DIGITAL INPUT CONNECTION ON 100N MASTER3
3.3
PIN
DIGITAL
TERMINALS
INPUT
47-59
DI1
48-59
DI2
DI3
49-59
DI4
50-59
51-59
DI5
52-59
DI6
53-59
DI7
54-59
DI8
55-59
DI9
56-59
DI10
57-59
DI11
58-59
DI12
USER AND MAINTENANCE MANUAL
Pag. 15
DEFAULT SETTINGS DIGITAL INPUTS
(Use voltage-free contacts)
-1 = Alarm
2 = Stand-by from remote
3 = Disable hot
4 = Disable humidity
5 = Humidifier alarm
6 = Fans protection
7 = Generic Warning 1
8 = Generic Warning 2
9 = Generic Warning 3
0 = Disabled
0 = Disabled
0 = Disabled
VISION TOUCH WELLNESS
POSSIBLE CONFIGURATIONS
DIGITAL INPUTS DI1
Access menu:
Parameters > Configure I/O > Digital inputs
0 = Disabled
1 = Alarm
2 = Stand-by
3 = Disable hot
4 = Disable humidity
5 = Humidifier alarm
6 = Fans protection
7 = Generic Warning 1
8 = Generic Warning 2
9 = Generic Warning 3
Positive values = Contact N.O.
Negative values = Contact N.C.
(function Not active with contact N.C.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
(function Not active with contact N.O.)
Rel 01-19
÷
DI12
