VISION TOUCH WELLNESS

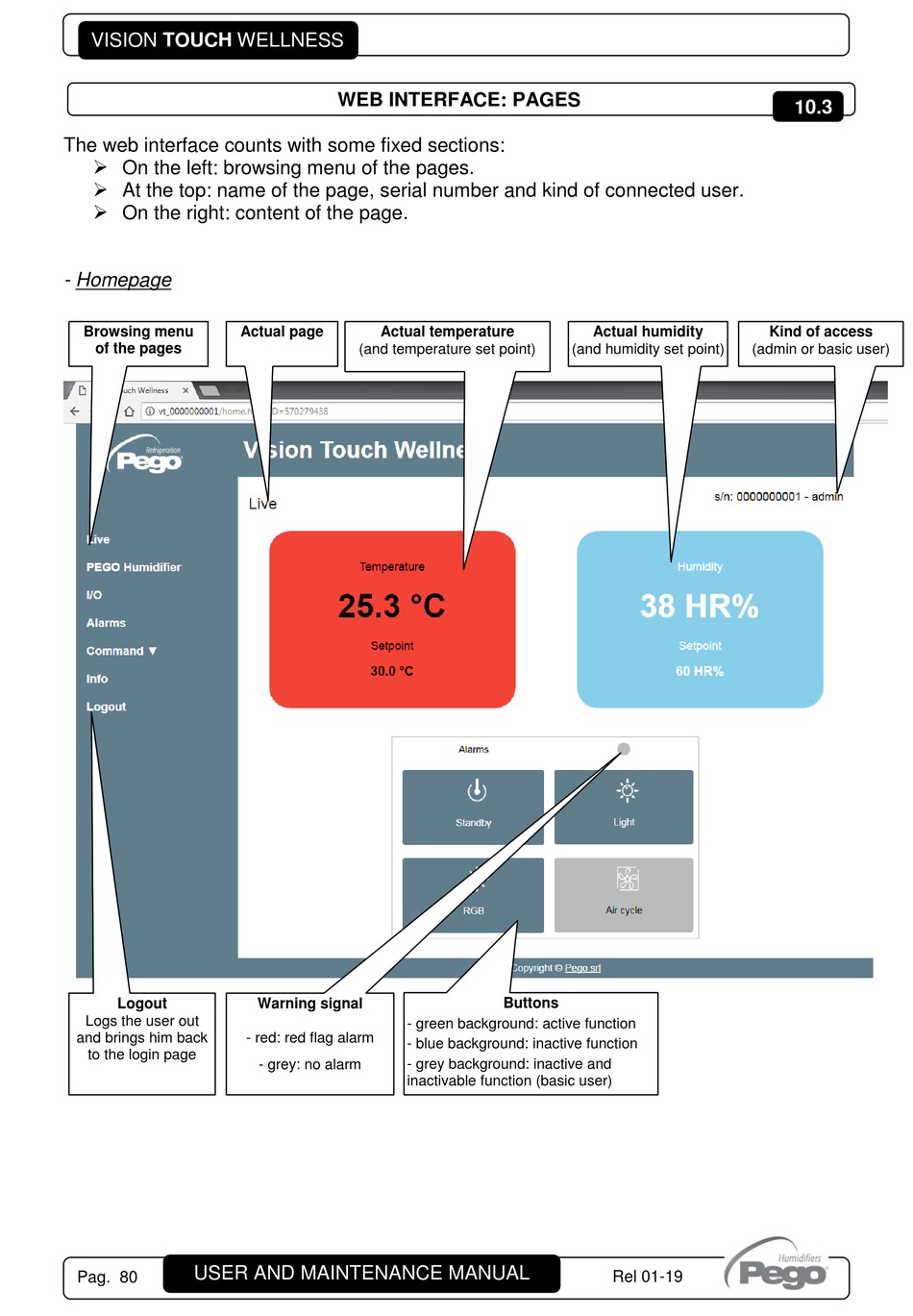

The web interface counts with some fixed sections:
 On the left: browsing menu of the pages.
 At the top: name of the page, serial number and kind of connected user.
 On the right: content of the page.
- Homepage
Browsing menu
of the pages
Logout
Logs the user out
and brings him back
to the login page
USER AND MAINTENANCE MANUAL
Pag. 80
WEB INTERFACE: PAGES
Actual page Actual temperature
(and temperature set point)
Warning signal
- green background: active function
- red: red flag alarm
- blue background: inactive function
- grey background: inactive and
- grey: no alarm
inactivable function (basic user)
Actual humidity
(and humidity set point)
Buttons
Rel 01-19
10.3
Kind of access
(admin or basic user)
