CAP. 4 - Technical features

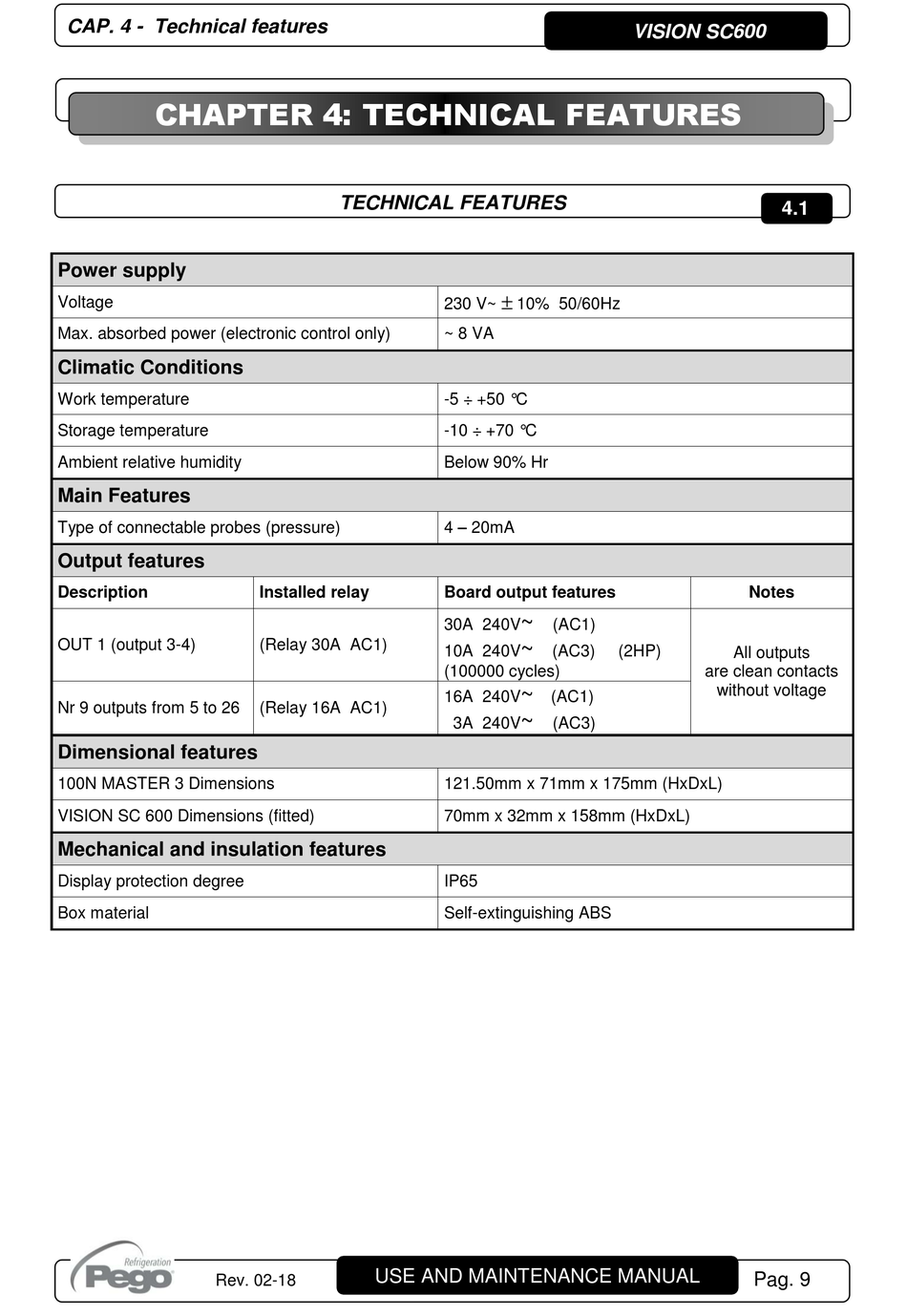

CHAPTER 4: TECHNICAL FEATURES
Power supply
Voltage
Max. absorbed power (electronic control only)
Climatic Conditions
Work temperature
Storage temperature
Ambient relative humidity
Main Features
Type of connectable probes (pressure)
Output features
Description
OUT 1 (output 3-4)
Nr 9 outputs from 5 to 26
Dimensional features
100N MASTER 3 Dimensions
VISION SC 600 Dimensions (fitted)
Mechanical and insulation features
Display protection degree
Box material
Rev. 02-18

TECHNICAL FEATURES

Installed relay
(Relay 30A AC1)
(Relay 16A AC1)
USE AND MAINTENANCE MANUAL

230 V~ 10% 50/60Hz
~ 8 VA
-5 ÷ +50 °C
-10 ÷ +70 °C
Below 90% Hr
4 – 20mA
Board output features
~
30A 240V (AC1)
~
10A 240V (AC3)
(100000 cycles)
~
16A 240V (AC1)
~
3A 240V (AC3)
121.50mm x 71mm x 175mm (HxDxL)
70mm x 32mm x 158mm (HxDxL)
IP65
Self-extinguishing ABS
VISION SC600
4.1
Notes
(2HP)
All outputs
are clean contacts
without voltage
Pag. 9
