VISION TOUCH WELLNESS

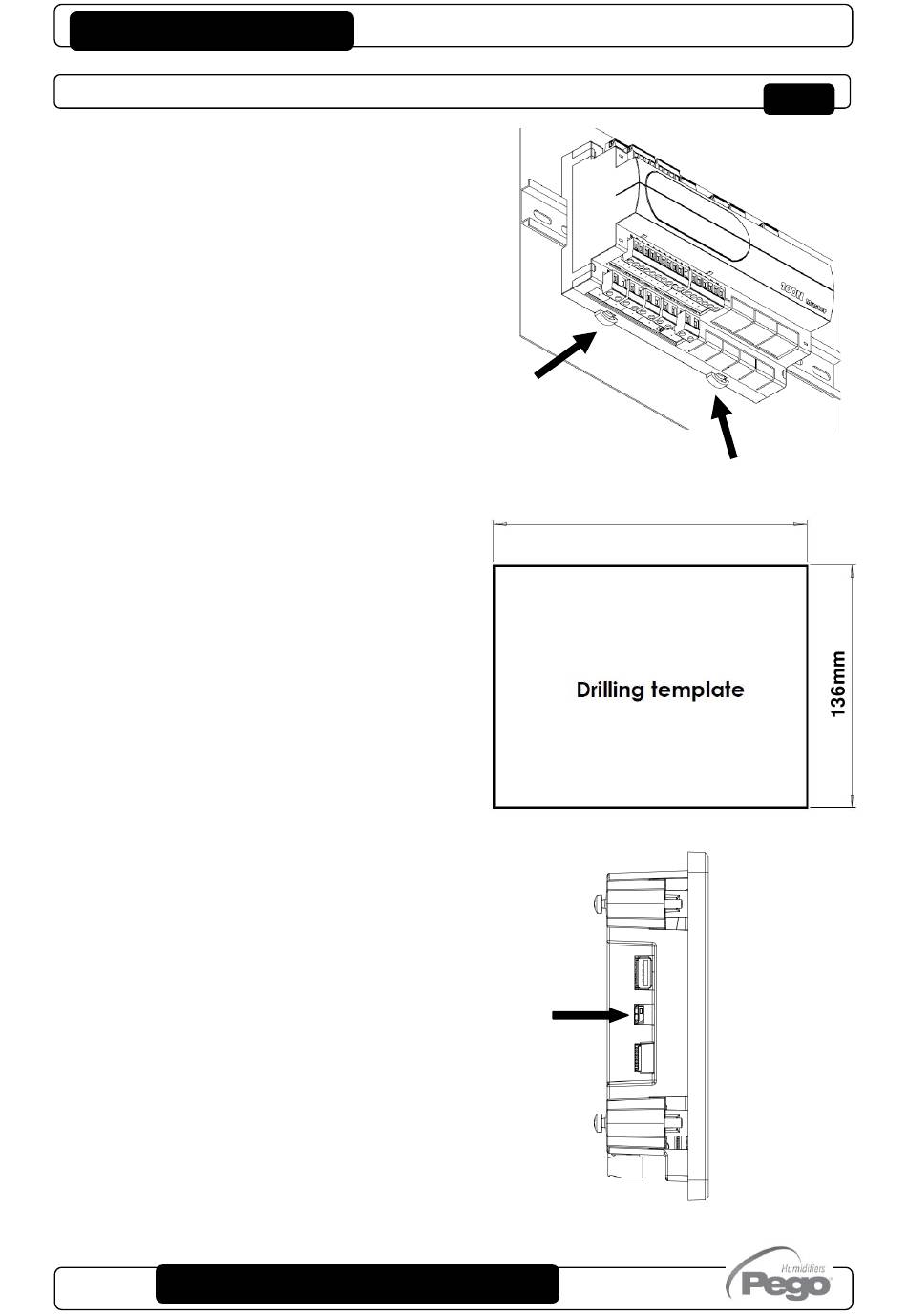

Fig. 1: Install the 100N MASTER3
module on the DIN guide and
close the bottom clamps to hold
it in place.
Fig. 2: VISION TOUCH console drilling
template.
Fig. 3: Configure properly the side
switch (if present) to reverse the
viewing angle of the display. This
allows you to mount the VISION
TOUCH at any height.
When
mounted
position, rotate the display by
180° in order to have the signal
leds at the top.
USER AND MAINTENANCE MANUAL
Pag. 10
INSTALLATION AND ASSEMBLY
in
the
low
177mm
Rel 01-19
2.3
