CHAPTER 5: USER INTERFACE
This section illustrates the features and instructions for using the display, the light
indicators and the buttons making up the user interface of the VISION TOUCH
WELLNESS, and therefore represent an essential requirement to correctly program and
configure the controller.
5.1

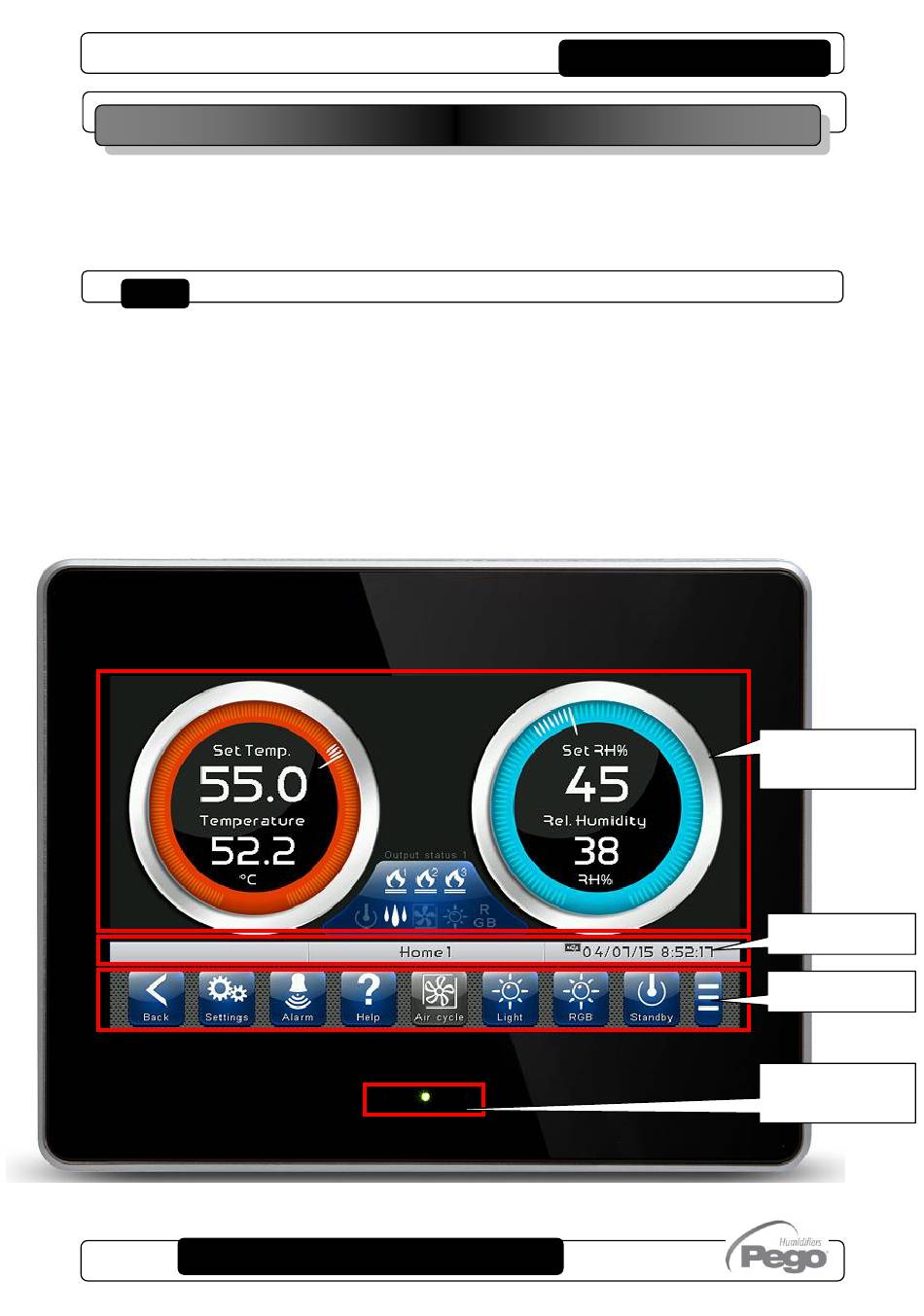

The display is divided into 3 main parts:
•
Main display: interactively displays the various home pages and menu items.
•
Status bar: it is divided into 3 parts and displays the following data:
in the middle: description of current visualization of main display.
-
- on the right: current date/time, presence of USB key, or access as installer.
•
Button bar: views the main operating buttons and their status.
At the bottom in the middle there are two LEDs:
Green LED: Flashing = controller in stand-by / On fixed = Controller powered
Red LED: Flashing = controller in Alarm
USER AND MAINTENANCE MANUAL
Pag. 21

CONSOLE FUNCTIONAL ZONES

VISION TOUCH WELLNESS
Rel 01-19
Main display
Status bar
Button bar
Indicator
LEDs
