VISION TOUCH WELLNESS
CHAPTER 3: ELECTRICAL CONNECTIONS
Following are the electrical connections of the controller divided by type. The
configurations of the inputs and outputs shown below are set by default but can be
changed to suit your needs. The connection between the console and 100N MASTER3
has two possible variants based on the distance between the two components.
POWER SUPPLY AND CONNECTION CONSOLE / 100N MASTER3

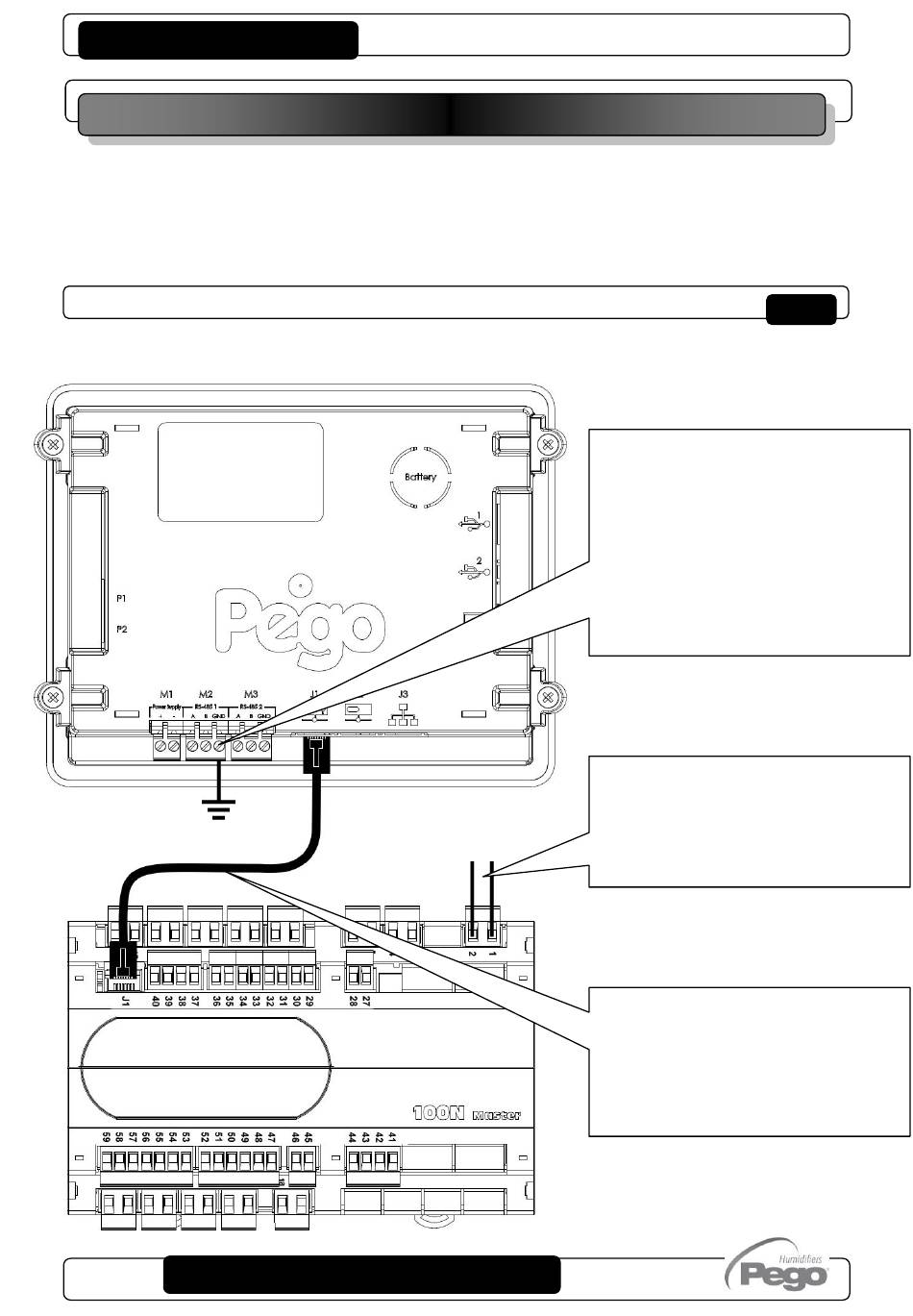

1) Connection between the console and 100N MASTER3 with distance within 10m:
USER AND MAINTENANCE MANUAL
Pag. 12
Connect the ground to the GND
terminal of M2 in the console
(functional ground).
This connection helps to limit the
effects of the electromagnetic
noise on the control system.
The earth connection must be
made in a manner consistent with
applicable regulations.
Connect the power to terminals 1
and 2 of 100N MASTER3.
Switching power supply:
Power
115÷230Vac ±10% 50/60 Hz
supply
Demand: 20 VA max.
.
Use the supplied telephone cord
and connect the 8-pin Plugs to
J1in the console and to J1 in the
100N MASTER
(it includes communication and
power).
Rel 01-19
3.1
