VISION TOUCH WELLNESS
ANALOGUE INPUT CONNECTION ON 100N MASTER3
PIN DESCRIPT.
TERMINALS TERMINALS
27 RH
28 V+
29
30
31
32
33
34
35
36
USER AND MAINTENANCE MANUAL
Pag. 16

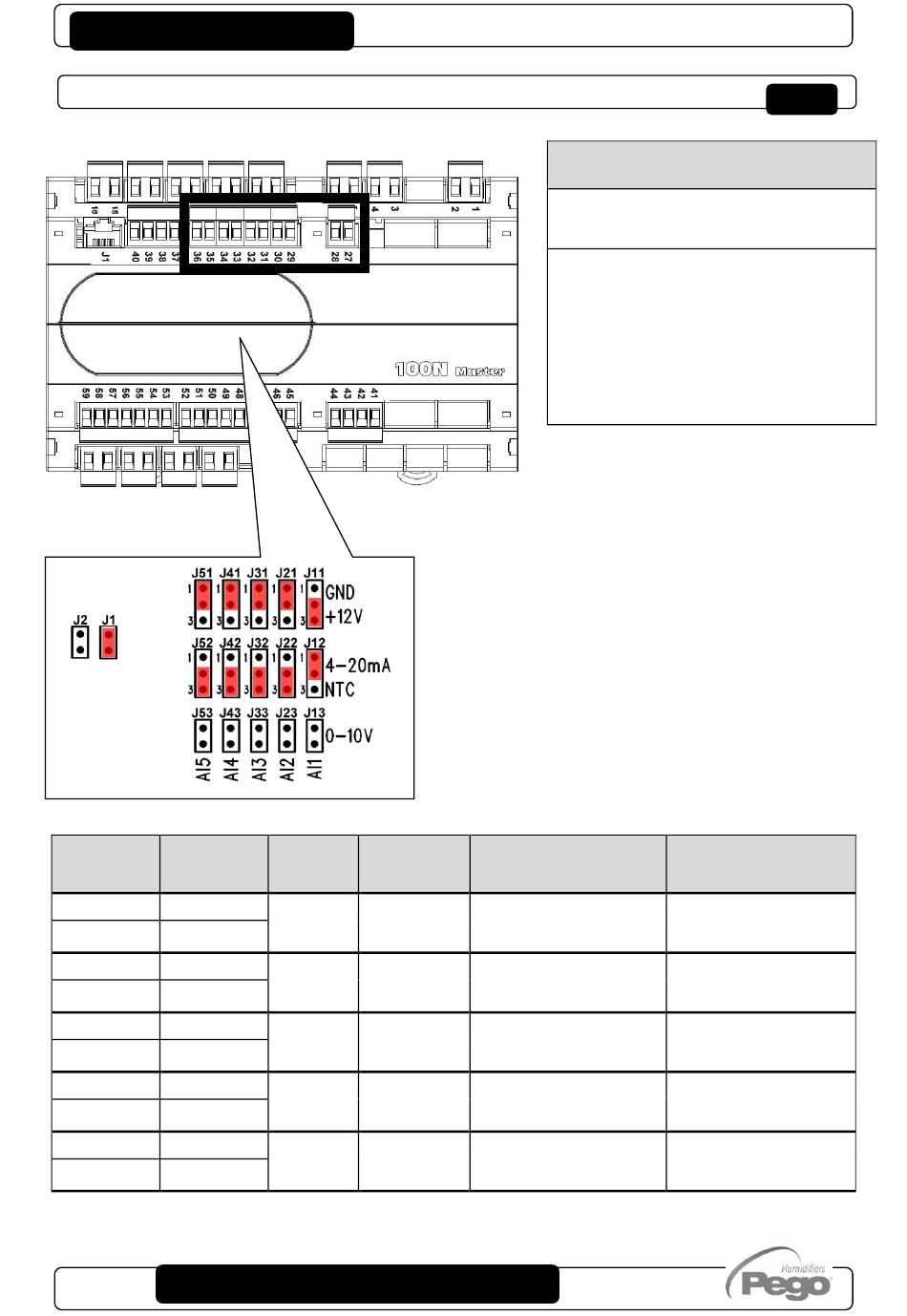

The selection of the desired function for each analogue
input is done by the configuration of the dedicated
parameter in the "Parameters > Configure I/O >
analogue inputs" menu combined with the correct
setting of the Hardware configuration jumpers on the
100N MASTER3 under the removable front cover (see
the side image).
In particular, the configuration is as follows:
For NTC probes: J*1=1-2, J*2=2-3, J*3=open
For 4-20mA probes: J*1=2-3, J*2=1-2, J*3=open
*= number analogue input
TYPE OF ANALOGUE
SIGNAL INPUT
4-20mA AI1
NTC AI2
NTC AI3
NTC AI4
NTC AI5
POSSIBLE CONFIGURATIONS
ANALOGUE INPUTS AI1
Parameters >Configure I/O >Analogue inputs
0 = Disabled
1 = Ambient temperature (NTC)
2 = Ambient humidity probe (4-20mA)
DEFAULT SETTINGS
ANALOGUE INPUTS
2 = Ambient humidity
probe
1 = Ambient temperature
0 = Disabled
0 = Disabled
0 = Disabled
Rel 01-19
3.4
÷
AI5
Access menu:
DEFAULT SETTINGS
BRIDGES ON
100N MASTER3
J11 = 2-3
J12 = 1-2
J13 = open
J21 = 1-2
J22 = 2-3
J13 = open
J31 = 1-2
J32 = 2-3
J33 = open
J41 = 1-2
J42 = 2-3
J43 = open
J51 = 1-2
J52 = 2-3
J53 = open
