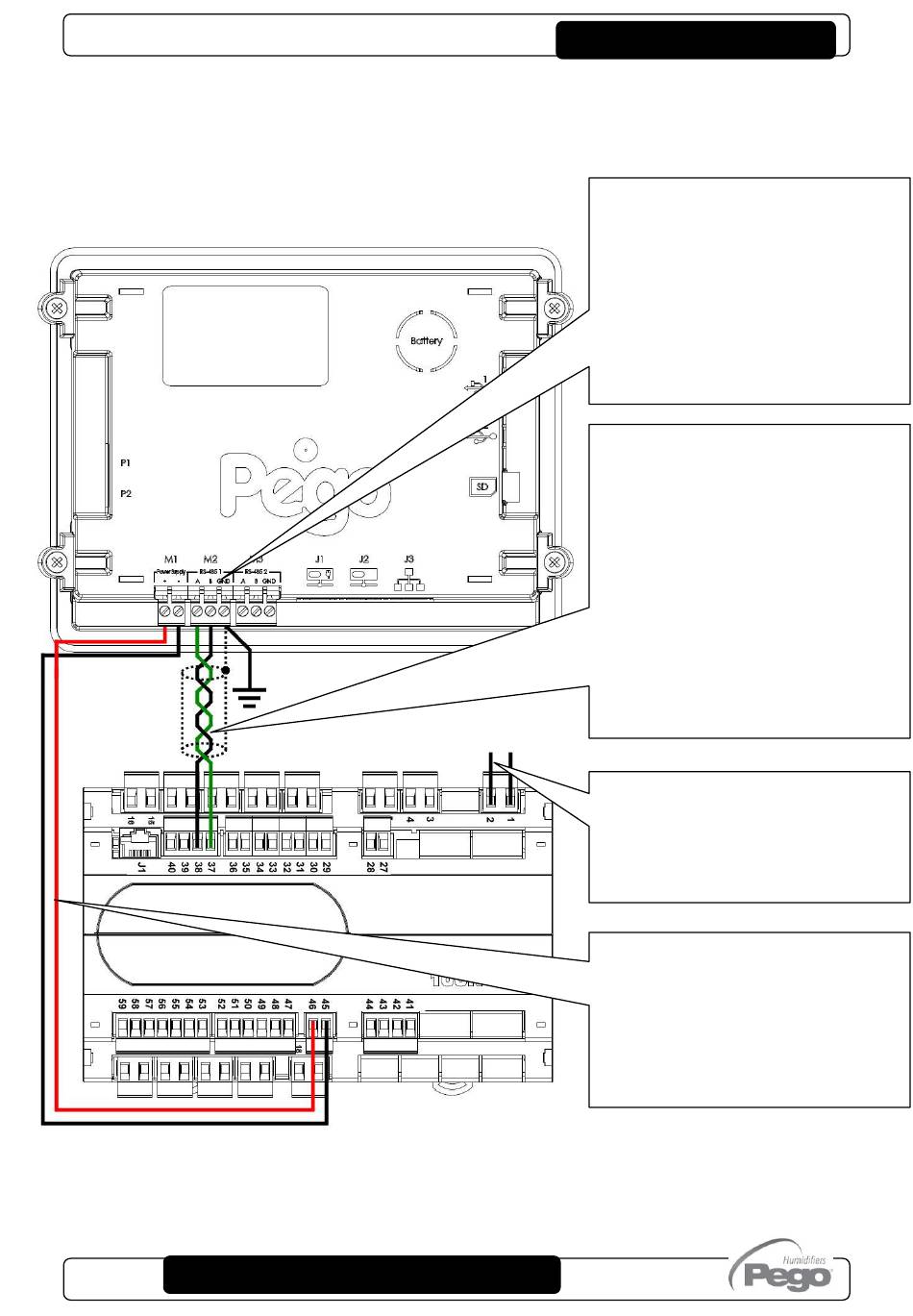

2) Connection between the console and 100N MASTER3 with distance within
500m:
Connect the ground to the GND
terminal of M2 in the console
(functional ground).
This connection helps to limit the
effects of the electromagnetic
noise on the control system.
The ground connection must be
made in a manner consistent with
applicable regulations.
Connect terminal (1) of M2 in the
console to terminal 37 of 100N
MASTER3 and term (B) of M2 in
the console to terminal 38 of
100N MASTER3.
Connect the braid of the shielded
cable to the (GND) terminal of
M2in the console. Use twisted
cable suitable for the transmission
of RS485 signals with minimum
2
section of 0.5mm
(e.g. Belden
8762 cable). Avoid coupling with
Power
power cables.
supply
Connect the power to terminals 1
and 2 of 100N MASTER3.
Switching power supply:
115÷230Vac ±10% 50/60 Hz
Demand: 20 VA max.
.
Connect terminal (-) of M1 in the
console to terminal 45 of 100N
MASTER3 and term (+) of M1 in
the console to terminal 46 of
100N MASTER3.
Avoid coupling with power cables.
USER AND MAINTENANCE MANUAL
Pag. 13
Rel 01-19
