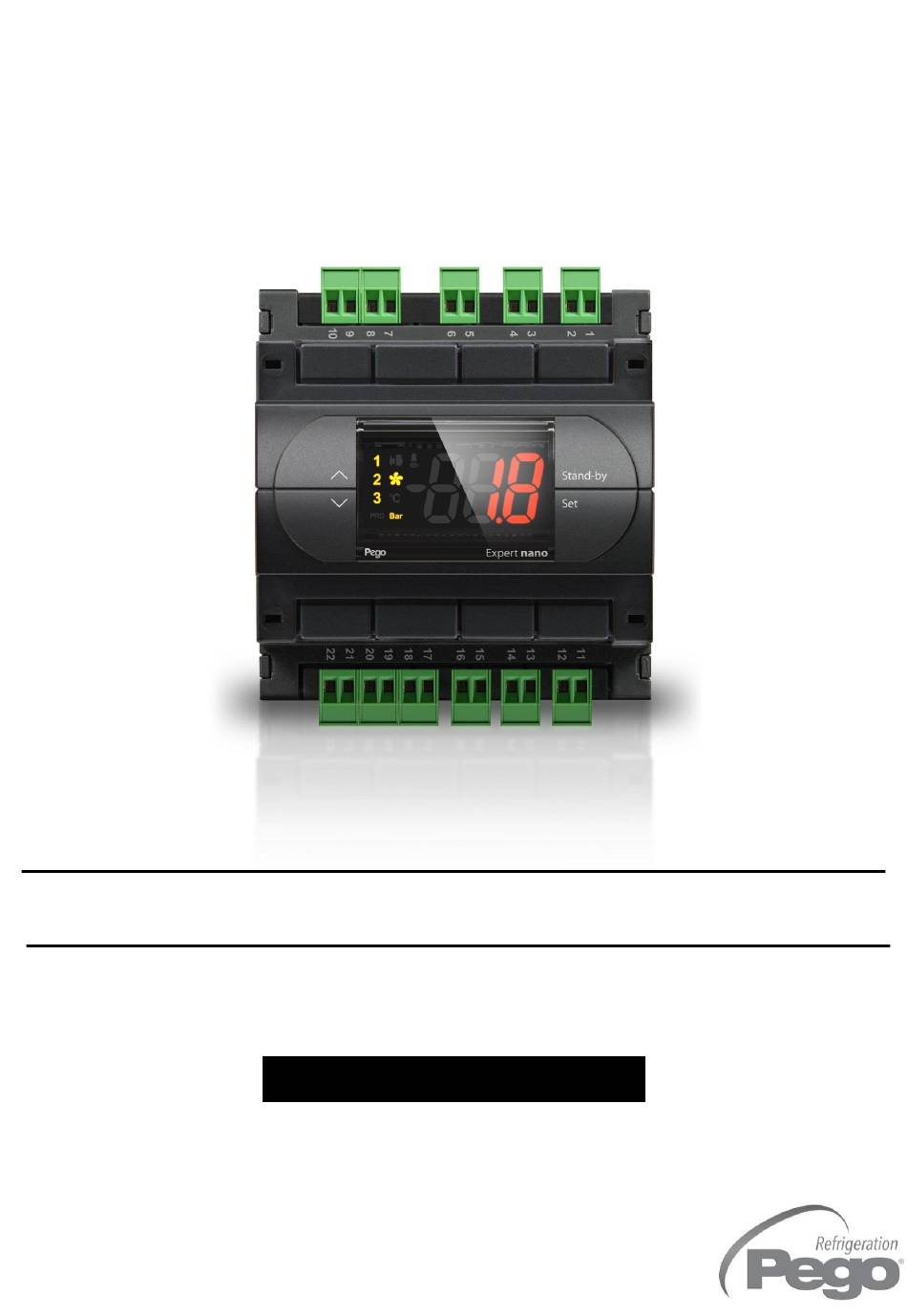

- Page 1 Chapter. 1 – Introduction DIN NANO FSC 200NDINFSC Electronic regulator on DIN bar to manage condenser fans User and maintenance manual ENGLISH READ AND KEEP REV. 03-18 ELECTRICAL BOARDS FOR REFRIGERATING INSTALLATIONS Page 1 USER AND MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
DIN NANO FSC Contents CONTENTS INTRODUCTION CHAP. 1 Page 3 General Page 3 Product identification codes Page 4 Overall dimensions Page 4 Identification data INSTALLATION CHAP. 2 Page 5 General rules for the installer Page 5 Standard equipment for assembly and use Page 6 Installation of the board TECHNICAL CHARACTERISTICS... -
Page 3: Page
View of the pressure transducer reading in Bar or in °C (depending on the type of selected refrigerant gas). 3-digit LED display with sign, decimal point and system status icons. RS485 serial connection with Modbus-RTU or Telenet protocol. PEGO programming criteria that guarantees immediate start-up. Supply voltage 230Vac. PRODUCT IDENTIFICATION CODES 200NDINFSC01... -
Page 4: Page
Chapter 1 – Introduction DIN NANO FSC OVERALL DIMENSIONS Dimensions in mm. IDENTIFICATION DATA The device described in this manual has a plate on one side bearing the identification data: • Name of Manufacturer • Code and model of the device •... -
Page 5: General Rules For The Installer
Chapter. 3 – Technical Characteristics DIN NANO FSC CHAPTER 2: INSTALLATION GENERAL RULES FOR THE INSTALLER 1. Install the device in an area that ensures the correct degree of protection, and take all due care when drilling holes in the box for the cable glands and/or hoses; 2. -
Page 6: Installation Of The Board
Chapter 1 – Introduction DIN NANO FSC INSTALLATION OF BOARD Fig. 1: Install the module on the DIN guide and close the bottom clamp to hold it in place. Make all the electrical connections with reference to the diagrams of the relative model (see the relative tables in the ANNEXES). -
Page 7: Technical Characteristics
Chapter. 3 – Technical Characteristics DIN NANO FSC CHAPTER 3: TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS Power supply 230 V~ 10% 50/60Hz Voltage Max power consumption (electronic controller ~ 5 VA only) Climatic conditions Operating temperature -5 ÷ +50 °C Storage temperature -10 ÷... -
Page 8: Warranty
The intervention service in warranty can be refused when the equipment is modified or transformed. Under no circumstances Pego S.r.l. will be liable for any loss of data and information, costs of goods or substitute services, damage to property, people or animals, loss of sales... -
Page 9: Control Panel
Chapter. 6 – Options DIN NANO FSC CHAPTER 5: DATA PROGRAMMING CONTROL PANEL (6) (7) (10) (11) (14) (13) (12) FRONT KEYPAD UP KEY Increases value / Scrolls up through parameters Acquires an alarm. DOWN KEY Decreases value / Scrolls down through parameters. STAND-BY If pressed for more than 1 second, the Stand-by state will alternate with the normal operating status, and vice versa. - Page 10 Chapter 5 – Data Programming DIN NANO FSC DISPLAY LED Shows the values / parameters "OUTPUT Nr.1” ICON ON=analogue output between 0.1 and 3.3V. "OUTPUT Nr.2" ICON ON=analogue output between 3.4 and 6.6V. "OUTPUT Nr.3" ICON ON = analogue output > 6.6V. "PRG"...
-
Page 11: Combination Of Keys
Chapter. 6 – Options DIN NANO FSC COMBINATION OF KEYS LEVEL 1 PROGRAMMING Pressing both keys together for more than 3 seconds enables access to the Level 1 programming menu. EXIT PROGRAMMING Pressing both keys together for more than 3 seconds in any programming menu exits the menu concerned. -
Page 12: List Of Level 1 Variables
Chapter 5 – Data Programming DIN NANO FSC VIEWING AND CONFIGURATION OF SET POINT The SETPOINT is set in Bar if the adjustment is made by a pressure sensor (if Pt = 0). In the case in which the adjustment is made by means of temperature sensor (NTC) SETPOINT is expressed in ° C (if Pt = 1). The procedure for changing the SET is the following: 1. - Page 13 Chapter. 6 – Options DIN NANO FSC 0 = R404 11 = R449A 1 = R134 12 = R290 2 = R22 13 = R32 3 = R407A 14 = R448A Type of refrigerant GAS in use. 4 = R407F 15 = R452A The setting of this parameter is essential 5 = R407H...
-
Page 14: Level 2 Programming
Chapter 5 – Data Programming DIN NANO FSC LEVEL 2 PROGRAMMING (Installer level) To access Level 2 programming, press and hold the UP key (), DOWN key () and STAND-BY key for over 3 seconds. When the first programming variable appears: 1. - Page 15 Chapter. 6 – Options DIN NANO FSC 0,5 … 2,5 bar if Pt=0 0,5 Bar always < r0 Offset Inverter fans Value always less than the (r0) value 0,9 … 10,0 °C if Pt=1 or (Pt=0 and mOd=1) 0,9 °C always <...
- Page 16 Chapter 5 – Data Programming DIN NANO FSC Correction for the compressor SET -5,0 … 5,0 Bar 0,0 Bar during night operation (energy saving) During night operation the Compressor set is: -20,0 … 20,0 °C 0,0 °C Compressor Set = Set + NSC Network address for connection to the 0 ÷...
-
Page 17: Level 3 Programming
Chapter. 6 – Options DIN NANO FSC LEVEL 3 PROGRAMMING (Installer level) 5.10 To access Level 3 programming, press and hold the UP key () and STAND-BY key for over 3 seconds. When the first programming variable appears: 1. Select the variable you want to change with the key () or with the key (). After selecting the required variable, it is possible to: 2. -
Page 18: Operating Mode
Chapter 5 – Data Programming DIN NANO FSC OPERATING MODE 5.12 The condenser fans are controlled via a 0-10V analogue output and sideband-type adjustment. The LED icon (11) turns on to identify the fan condenser control. The regulation probe (terminal 23 /24) can be of two types: Flow pressure probe 4-20mA (parameter Pt = 0). -
Page 19: Energy Saving Mode
Chapter. 6 – Options DIN NANO FSC Adjustment probe value DECREASING (Graph nr.2): With adjustment probe values equal or higher than point (D), you will have a (iHv) analogue output. Between points (D) and (E), the analogue output will have a value proportional to the value of the adjustment probe starting from the maximum value of (iHv) up to the minimum value of the (iLv) parameter. -
Page 20: Low Noise Mode
Chapter 5 – Data Programming DIN NANO FSC T (°C) Setpoint of condensing tA (External ambient temperature) time LOW NOISE MODE (mOd = 2) 5.12.3 By connecting a room temperature probe it is possible to anticipate and counteract the effects of the variation of the external climatic conditions on the setting (system pressure / condensing temperature). -
Page 21: Fixed Speed Mode
Chapter. 6 – Options DIN NANO FSC Graph. nr.3 As you can see in Chart 3, the variation of the output follows the same trend shown in the previous sections (for simplicity's sake, the fan initial start-up BOv boost is not shown in the chart): however, it is possible to see that varying the minimum fan speed actually changes the entire operating curve, according to the external temperature. -
Page 22: Night / Day Function
Chapter 5 – Data Programming DIN NANO FSC NIGHT / DAY FUNCTION 5.13 The day/night mode is activated by setting parameter dnE = 1. During the night the pressure Set-point is therefore modified as: Set-point (night) = Set-point (day) + nSC Night operation may be activated: from the digital input, setting (In1)=±1, (In2)=±1 or (In3)=±1);... -
Page 23: Telenet Monitoring/Supervision System
Chapter. 6 – Options DIN NANO FSC CHAPTER 6: OPTIONS TELENET MONITORING/SUPERVISION SYSTEM In order to connect the board to the TeleNET network, follow the diagram below. Configure the instrument with reference to the TeleNET manual. IMPORTANT: During configuration of the “Module”, select "TWMT instrument " or "TWMP instrument ". In detail: Ad address: shows regulation temperature probe value (TWMT) / regulation pressure probe value (TWMP) / converted regulation temperature probe value (TWMT) - Page 24 DIN NANO FSC Chapter 7 - Diagnostics CHAPTER 7: DIAGNOSTICS DIAGNOSTICS The controller DIN NANO FSC, in the case of any anomalies, will warn the operator through alarm codes shown on the display. The code of the last alarm triggered will be stored and can be displayed as only-read within the first level ALL variable.
-
Page 25: Eu Declaration Of Conformity
DEL FABBRICANTE: THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE EXCLUSIVE RESPONSIBILITY OF THE MANUFACTURER: PEGO S.r.l. Via Piacentina 6/b, 45030 Occhiobello (RO) – Italy – DENOMINAZIONE DEL PRODOTTO IN OGGETTO / DENOMINATION OF THE PRODUCT IN OBJECT MOD.: 200NDINFSC01 IL PRODOTTO DI CUI SOPRA E’... -
Page 26: Connection Diagram
Inside the circuit board, there are bridges already configured for the correct reading of the digital and analogue inputs of the board. Their setting must not be changed under any circumstances. Manufacturer settings of the bridges for the 200NDINFSC: J31=1-2 J32=1-2 J21=1-2 J22=1-2 If 4-20mA:... - Page 27 Annexes DIN NANO FSC REMARKS USER AND MAINTENANCE MANUAL Rev. 03-18 Page 27...
- Page 28 Tel. +39 0425 762906 Fax +39 0425 762905 e.mail: info@pego.it – www.pego.it AFTER-SALES ASSISTANCE CENTRE Tel. +39 0425 762906 e.mail: tecnico@pego.it Distributor: PEGO s.r.l. reserves the right to make amendments to this user manual at any moment. USER AND MAINTENANCE MANUAL Page 28 Rev. 03-18...
