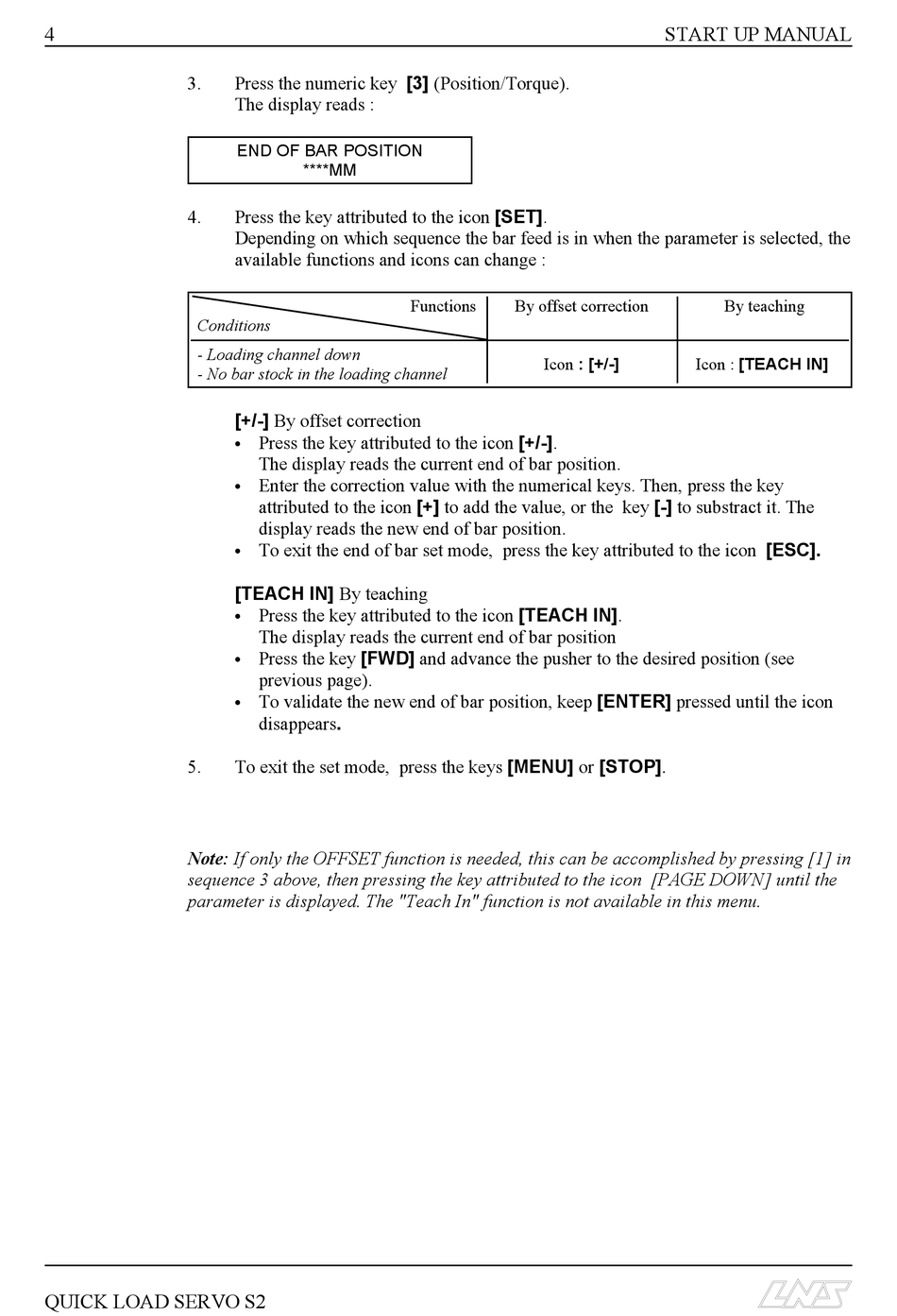

End Of Bar Position - LNS QUICK LOAD SERVO S2 Startup Manual

4
3.
4.
Conditions
- Loading channel down
- No bar stock in the loading channel
5.
Note: If only the OFFSET function is needed, this can be accomplished by pressing [1] in
sequence 3 above, then pressing the key attributed to the icon [PAGE DOWN] until the
parameter is displayed. The "Teach In" function is not available in this menu.
QUICK LOAD SERVO S2
Press the numeric key [3] (Position/Torque).
The display reads :

END OF BAR POSITION

****MM
Press the key attributed to the icon [SET].
Depending on which sequence the bar feed is in when the parameter is selected, the
available functions and icons can change :
[+/-] By offset correction
C Press the key attributed to the icon [+/-].
The display reads the current end of bar position.
Enter the correction value with the numerical keys. Then, press the key
C
attributed to the icon [+] to add the value, or the key [-] to substract it. The
display reads the new end of bar position.
C To exit the end of bar set mode, press the key attributed to the icon [ESC].
[TEACH IN] By teaching
C Press the key attributed to the icon [TEACH IN].
The display reads the current end of bar position
Press the key [FWD] and advance the pusher to the desired position (see
C
previous page).
C To validate the new end of bar position, keep [ENTER] pressed until the icon
disappears.
To exit the set mode, press the keys [MENU] or [STOP].
Functions By offset correction
Icon : [+/-]
START UP MANUAL
By teaching
Icon : [TEACH IN]
