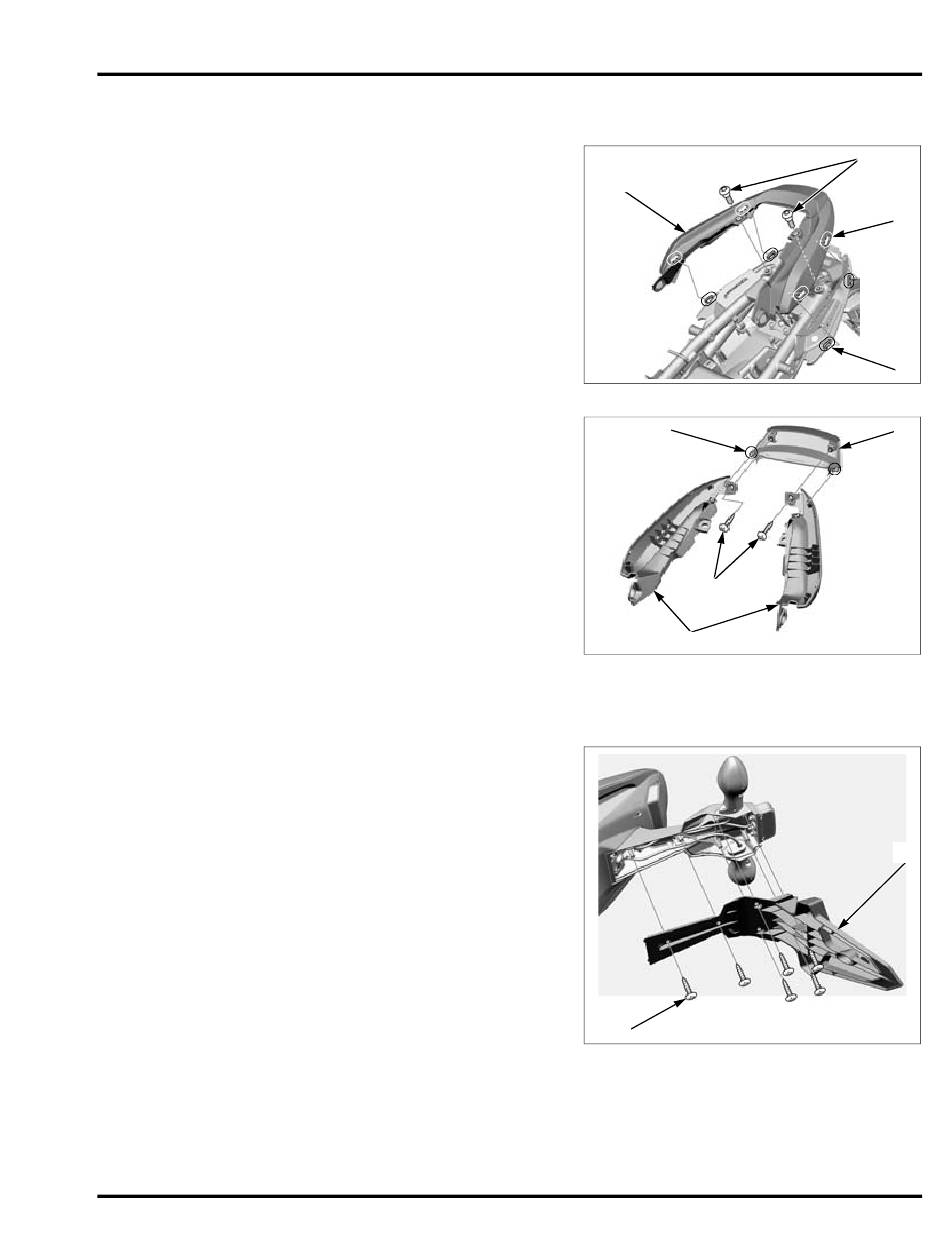

REAR COWL

REMOVAL/INSTALLATION
Remove the body cover (page 2-12).
Remove the two socket bolts [1].
Remove the rear cowl [2] by releasing the tabs [3] from
the slots [4] of the rear fender B.
Installation is in the reverse order of removal.
DISASSEMBLY/ASSEMBLY
Remove the two tapping screws [1].
Remove the rear side cowls [2] from the rear center
cowl [3] by releasing the tabs [4].
Assembly is in the reverse order of disassembly.

REAR FENDER A

REMOVAL/INSTALLATION
EXCEPT U MODEL
Remove the following:
– Tapping screws [1]
– Rear fender A [2]
Installation is in the reverse order of removal.
FRAME/BODY PANELS/EXHAUST SYSTEM
[2]
[4]
[1]
[2]
[1]
[1]
[3]
[4]
[3]
[2]
2-13
