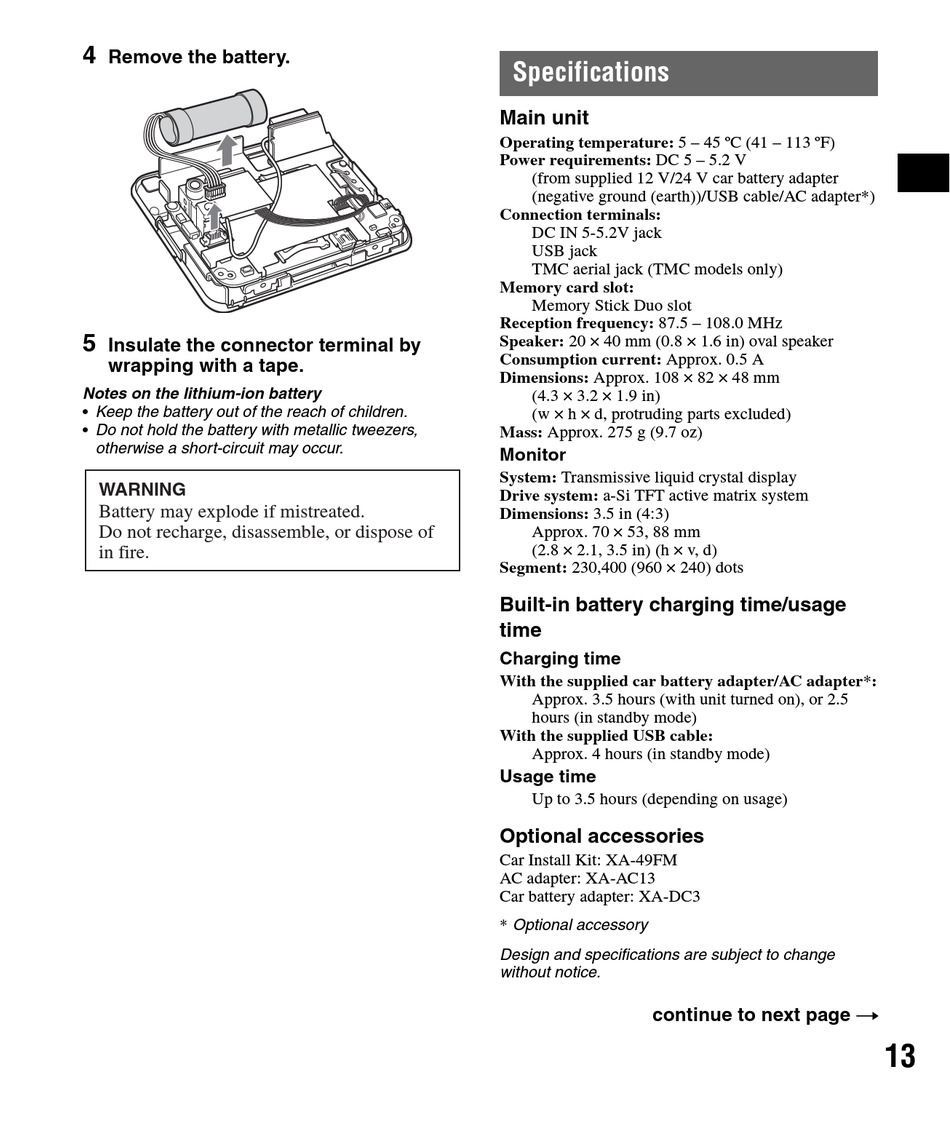

4
Remove the battery.
5
Insulate the connector terminal by
wrapping with a tape.
Notes on the lithium-ion battery
• Keep the battery out of the reach of children.
• Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of
in fire.

Specifications

Main unit
Operating temperature: 5 – 45 ºC (41 – 113 ºF)
Power requirements: DC 5 – 5.2 V
(from supplied 12 V/24 V car battery adapter
(negative ground (earth))/USB cable/AC adapter*)
Connection terminals:
DC IN 5-5.2V jack
USB jack
TMC aerial jack (TMC models only)
Memory card slot:
Memory Stick Duo slot
Reception frequency: 87.5 – 108.0 MHz
Speaker: 20 × 40 mm (0.8 × 1.6 in) oval speaker
Consumption current: Approx. 0.5 A
Dimensions: Approx. 108 × 82 × 48 mm
(4.3 × 3.2 × 1.9 in)
(w × h × d, protruding parts excluded)
Mass: Approx. 275 g (9.7 oz)
Monitor
System: Transmissive liquid crystal display
Drive system: a-Si TFT active matrix system
Dimensions: 3.5 in (4:3)
Approx. 70 × 53, 88 mm
(2.8 × 2.1, 3.5 in) (h × v, d)
Segment: 230,400 (960 × 240) dots
Built-in battery charging time/usage
time
Charging time
With the supplied car battery adapter/AC adapter*:
Approx. 3.5 hours (with unit turned on), or 2.5
hours (in standby mode)
With the supplied USB cable:
Approx. 4 hours (in standby mode)
Usage time
Up to 3.5 hours (depending on usage)
Optional accessories
Car Install Kit: XA-49FM
AC adapter: XA-AC13
Car battery adapter: XA-DC3
* Optional accessory
Design and specifications are subject to change
without notice.
continue to next page t
13
