H1P 115/130 Axial Piston Single Pumps

Filtration

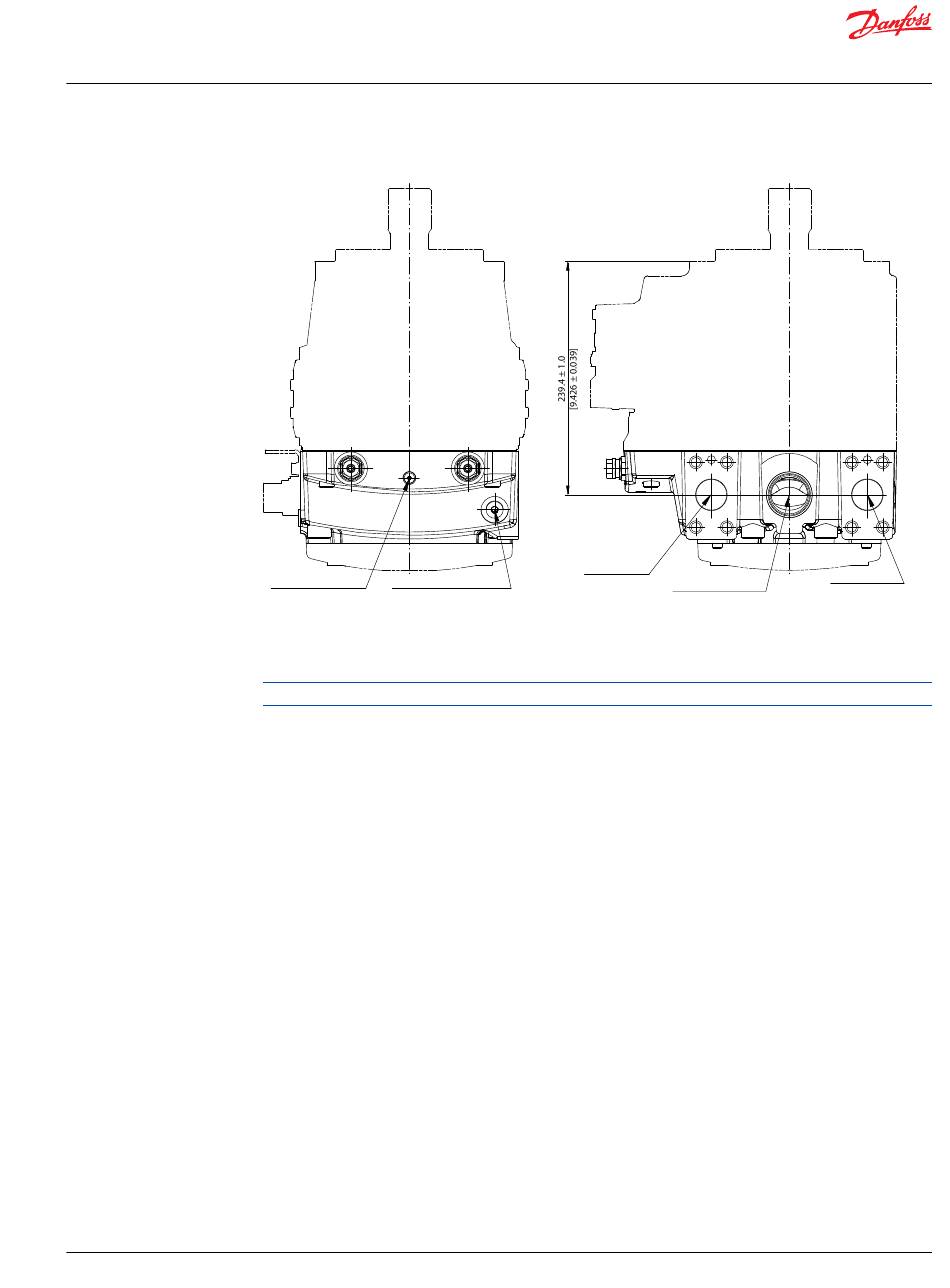

H1P 115/130 suction filtration, option L

© Danfoss | May 2018
Charge pressure port System B gage port "MB"
Port ISO 11926-1 – / -24 Port ISO 11926-1 –
5
16
∅ 28 max. Clearance Dia for Fitting
Please contact Danfoss representative for specific installation drawings.
System port "B"
∅ 31.5 – 450 bar
Split flange boss
/ -18
9
16
per ISO 6162
M12 x 1.75
20 min.
full thread depth
System port "A"
Charge inlet port "S"
∅ 31.5 – 450 bar
Port ISO 11926-1 – 1 / -12
5
Split flange boss
8
∅ 69 max. clearance dia for fitting
per ISO 6162
M12 x 1.75
20 min.
full thread depth
