Technical Information
H1P 115/130 Axial Piston Single Pumps
Dimensions

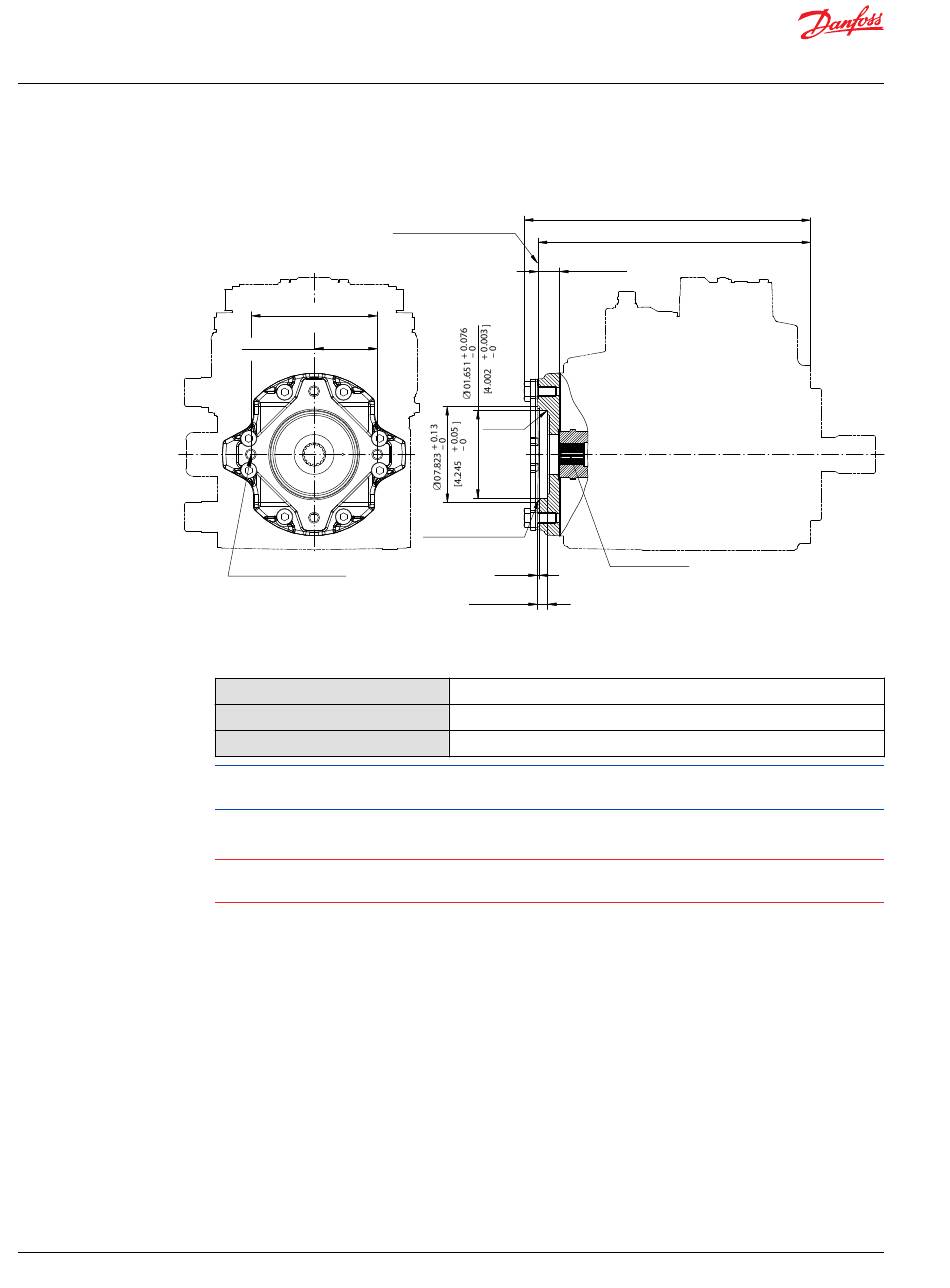

H1P 115/130 Auxiliary mounting - Option H5 (SAE B-B, 15 teeth)

Option H5, ISO 3019-1, flange 101-2 (SAE B-B, 15 teeth)
50 | © Danfoss | May 2018
Mounting flange surface
Flange 101 - 2 per ISO 3019-1
to be paint free
2x 146.0 ± 0.35
[5.748 ± 0.014]
4x 73.0 ± 0.175
[2.874 ± 0.007]
Thread : M12x1.75-6H THD
Depth : 25.0 [0.984] min.
4x
Specifications
Option
Spline
Maximum torque
For definitions of maximum and rated torque values, refer to H1 Axial Piston Pumps Basic Information,
BC00000057, the section "Shaft Torque Ratings and Spline Lubrication".
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
25.3 + 1.0
– 0
[0.996 + 0.039
– 0
R 0.8 max.
[0.031]
O-ring seal required
ref 94.92 [3.737] I.D.
x 2.62 [0.103] cross section
1.956
[0.077]
11.4 ± 0.25
[0.449 ± 0.010]
H5
15 teeth, 16/32 pitch
693 N•m [6130 lbf•in]
330.386 ± 2.0
[13.007 ± 0.079]
314.73 ± 2.0
[12.391 ± 0.079]
]
Spline data
Number of teeth : 15
Pitch fraction : 16/32
Pressure angle : 30°
Pitch-∅ : 23.813 [0.938]
Typ of fit : Fillet root side
per : Ansi B92.1-1996 class 6
BC00000198en-US0901
P003 389E
