Technical Information
H1P 115/130 Axial Piston Single Pumps
Dimensions

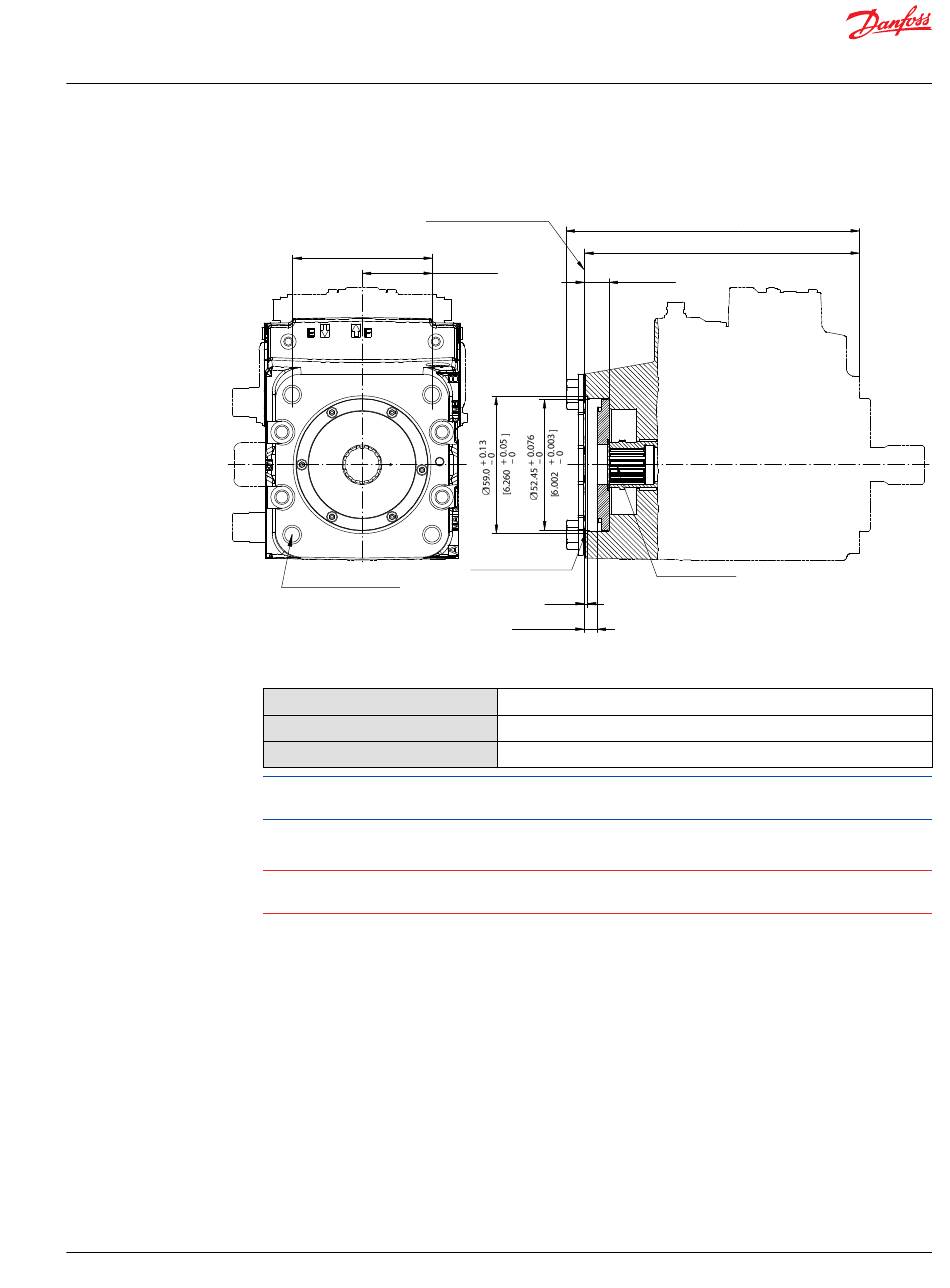

H1P 115/130 Auxiliary mounting - Option H4 (SAE D, 13 teeth)

Option H4, ISO 3019-1, flange 152-4 (SAE D, 13 teeth)
© Danfoss | May 2018
Mounting flange surface
Flange 152 - 4 per ISO 3019-1
to be paint free
4x 161.6 ± 0.35
[6.362 ± 0.014]
8x 80.8 ± 0.175
[3.181 ± 0.007]
Thread : M20x2.5-6H THD
Depth : 30.0 [1.181] min.
4x
Specifications
Option
Spline
Maximum torque
For definitions of maximum and rated torque values, refer to H1 Axial Piston Pumps Basic Information,
BC00000057, the section "Shaft Torque Ratings and Spline Lubrication".
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
27.48 + 1.0
– 0
[1.082 + 0.039
– 0
O-ring seal required
ref 150.0 [5.906] I.D.
x 3.0 [0.118] cross section
2.5
[0.098]
14.0 ± 0.25
[0.551 ± 0.010]
H4
13 teeth, 8/16 pitch
2206 N•m [19 525 lbf•in]
338.107 ± 2.0
[13.311 ± 0.079]
316.915 ± 2.0
[12.477 ± 0.079]
]
Spline data
Number of teeth : 13
Pitch fraction : 8/16
Pressure angle : 30°
Pitch-ø : 41.275 [1.625]
Typ of fit : Fillet root side
per : Ansi B92.1-1996 class 6
BC00000198en-US0901 | 49
P003 391E
