H1P 115/130 Axial Piston Single Pumps

Dimensions

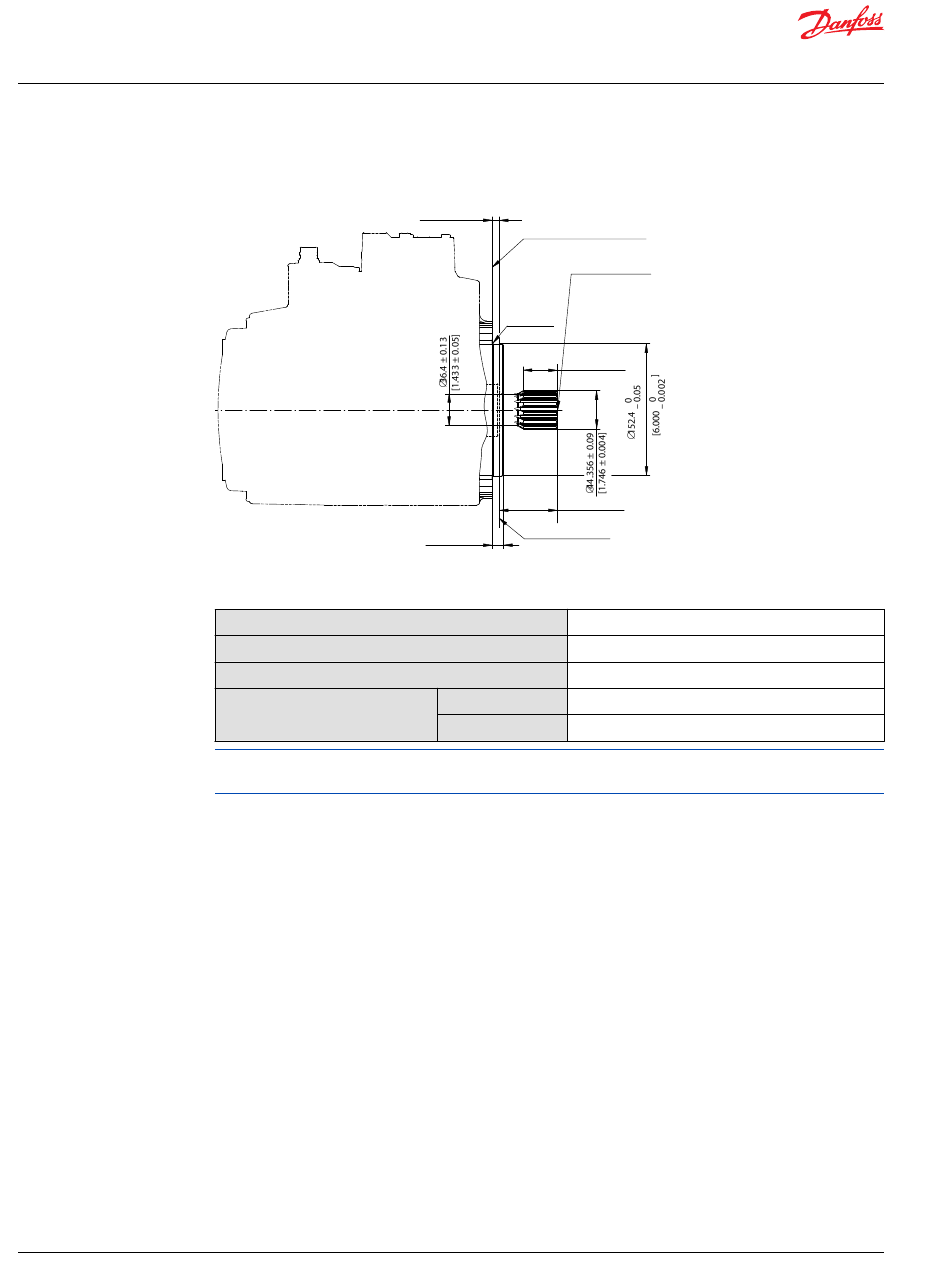

H1P input shaft - Option G3 (SAE D, 13 teeth)

42 | © Danfoss | May 2018
Option G3, ISO 3019-1, outer dia 44 mm-4 (SAE E, 13 teeth)
Specifications
Option
Spline
Min. active spline length for the specified torque ratings
Torque rating
For definitions of maximum and rated torque values, refer to H1 Axial Piston Pumps Basic Information,
BC00000057, the section "Shaft Torque Ratings and Spline Lubrication".
8.05 ± 0.8
[0.317 ± 0.031]
Mounting flange surface
Flange 152 - 4 per ISO 3019-1
to be paint free
Spline data
Number of teeth : 13
Pitch fraction
Pressure angle
Pitch-∅
R 0.8 max.
Typ of fit
per
[0.031]
39.5 ± 1.0
[1.555 ± 0.039]
67.0 ± 1.0
[2.638 ± 0.039]
Coupling must not
12.45 ± 0.25
protrude beyond
[0.49 ± 0.01]
this Point
G3
13 teeth, 8/16 pitch
39.5 mm [1.555 in]
1442 N•m [12 800 lbf•in]
Rated
2206 N•m [19 500 lbf•in]
Maximum
: 8/16
: 30°
: 41.275 [1.625]
: Fillet root side
: Ansi B92.1-1996 class 5
P003 384E
