Technical Information
H1P 115/130 Axial Piston Single Pumps
Dimensions

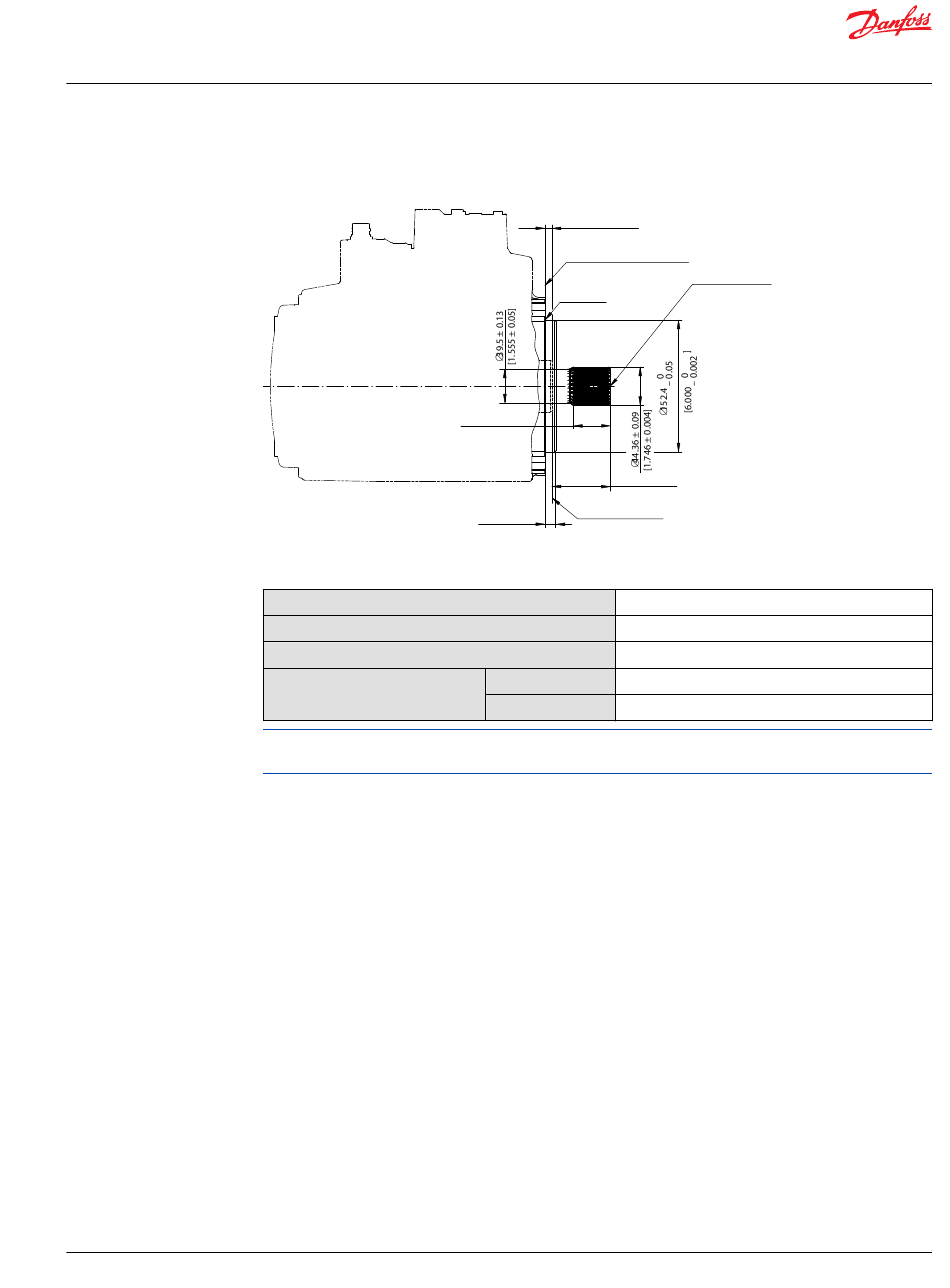

H1P input shaft - Option G2 (SAE D, 27 teeth)

© Danfoss | May 2018
Option G2, ISO 3019-1, outer dia 44 mm-4 (SAE E, 27 teeth)
Specifications
Option
Spline
Min. active spline length for the specified torque ratings
Torque rating
For definitions of maximum and rated torque values, refer to H1 Axial Piston Pumps Basic Information,
BC00000057, the section "Shaft Torque Ratings and Spline Lubrication".
8.05 ± 0.8
[0.317 ± 0.031]
Mounting flange surface
Flange 152 - 4 per ISO 3019-1
to be paint free
R 0.8 max.
[0.031]
42.0 ± 1.0
[1.654 ± 0.039]
67.0 ± 1.0
[2.638 ± 0.039]
Coupling must not
12.45 ± 0.25
protrude beyond
[0.49 ± 0.01]
this Point
G2
27 teeth, 16/32 pitch
42.0 mm [1.654 in]
1615 N•m [14 300 lbf•in]
Rated
3000 N•m [26 550 lbf•in]
Maximum
Spline data
Number of teeth : 27
Pitch fraction : 16/32
Pressure angle : 30°
Pitch-∅ : 42.863 [1.688]
Typ of fit : Fillet root side
per : Ansi B92.1-1996 class 5
P003 385E
BC00000198en-US0901 | 43
