H1P 115/130 Axial Piston Single Pumps
Filtration
H1P 115/130 filtration, option M

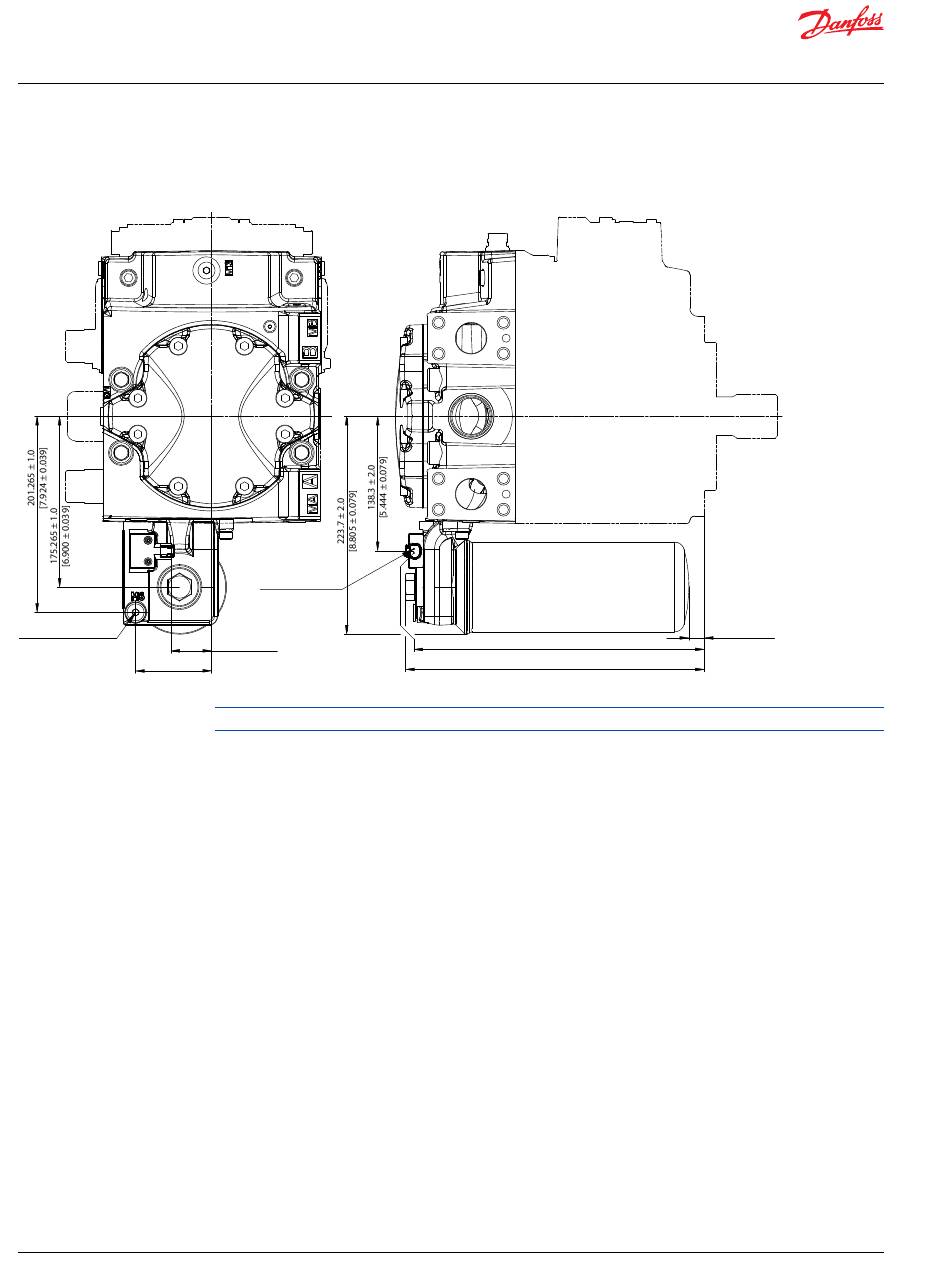

Integral full flow charge pressure filtration with filter bypass sensor, option M
Charge gage port "M6"
Port ISO 11926-1 –
/
-18
9
16
before filter
77.749 ± 1.0
[3.061 ± 0.039]
68 |
©
Danfoss | May 2018
Connector :
Deutsch DTM04-2P
to be paint free
41.619 ± 1.0
[1.639 ± 0.039]
Please contact Danfoss representative for specific installation drawings.
298.1 ± 1.0
[11.739 ± 0.039]
306.916 ± 1.0
[12.083 ± 0.039]
15.9 ± 1.0
[0.627 ± 0.039]
P003 404E
