H1P 115/130 Axial Piston Single Pumps
Dimensions

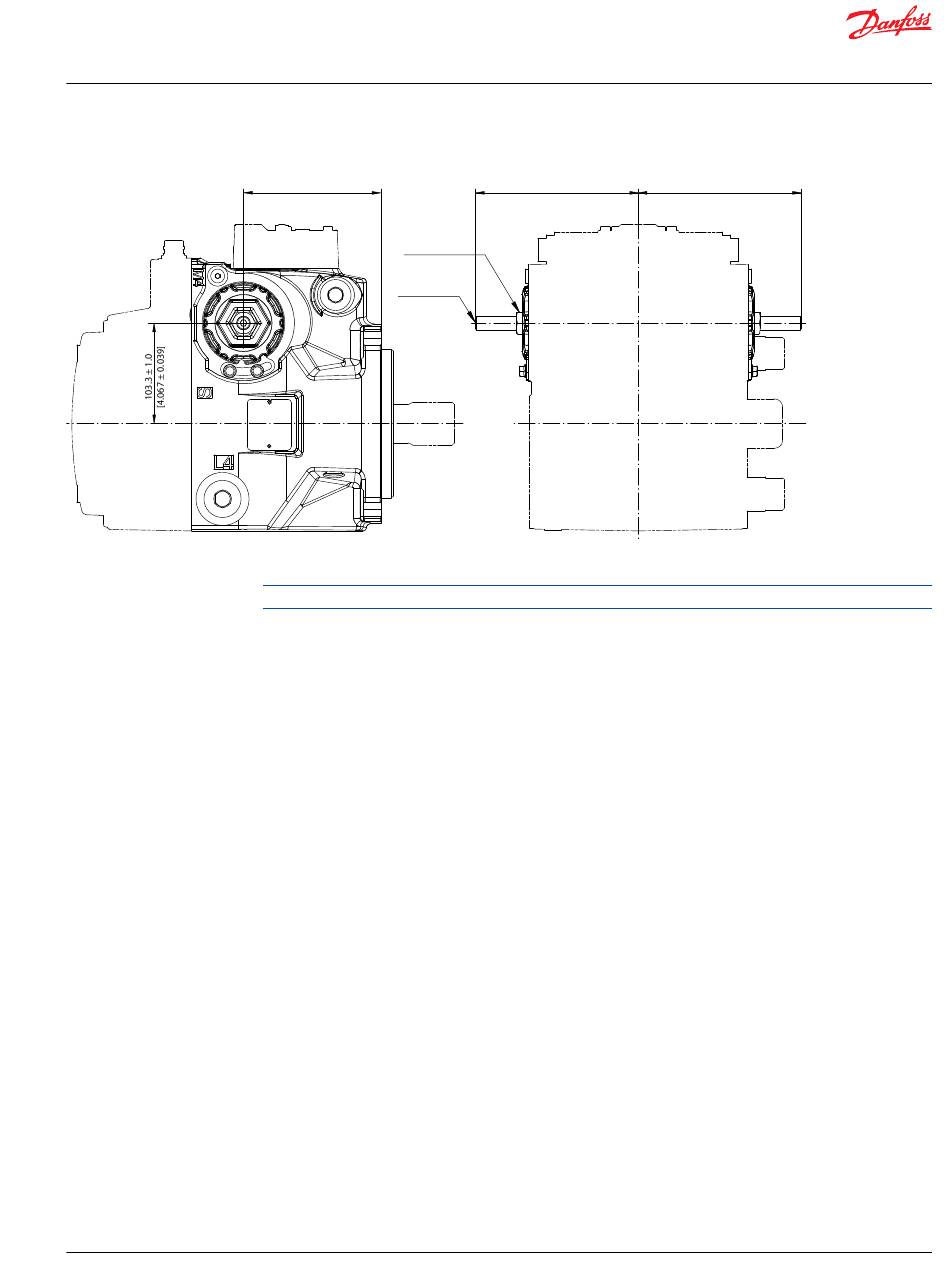

H1P 115/130 displacement limiter, option B and D
140.86 ± 1.0
167.0 ± 2.0
167.0 ± 2.0
[5.546 ± 0.039]
[6.575 ± 0.079]
[6.575 ± 0.079]
Wrench size 22
(external hex)
Wrench size 6
(internal hex)
P003 401E
Please contact Danfoss representative for specific installation drawings.
©
Danfoss | May 2018
BC00000198en-US0901 | 53
