Technical Information
H1P 115/130 Axial Piston Single Pumps
Controls

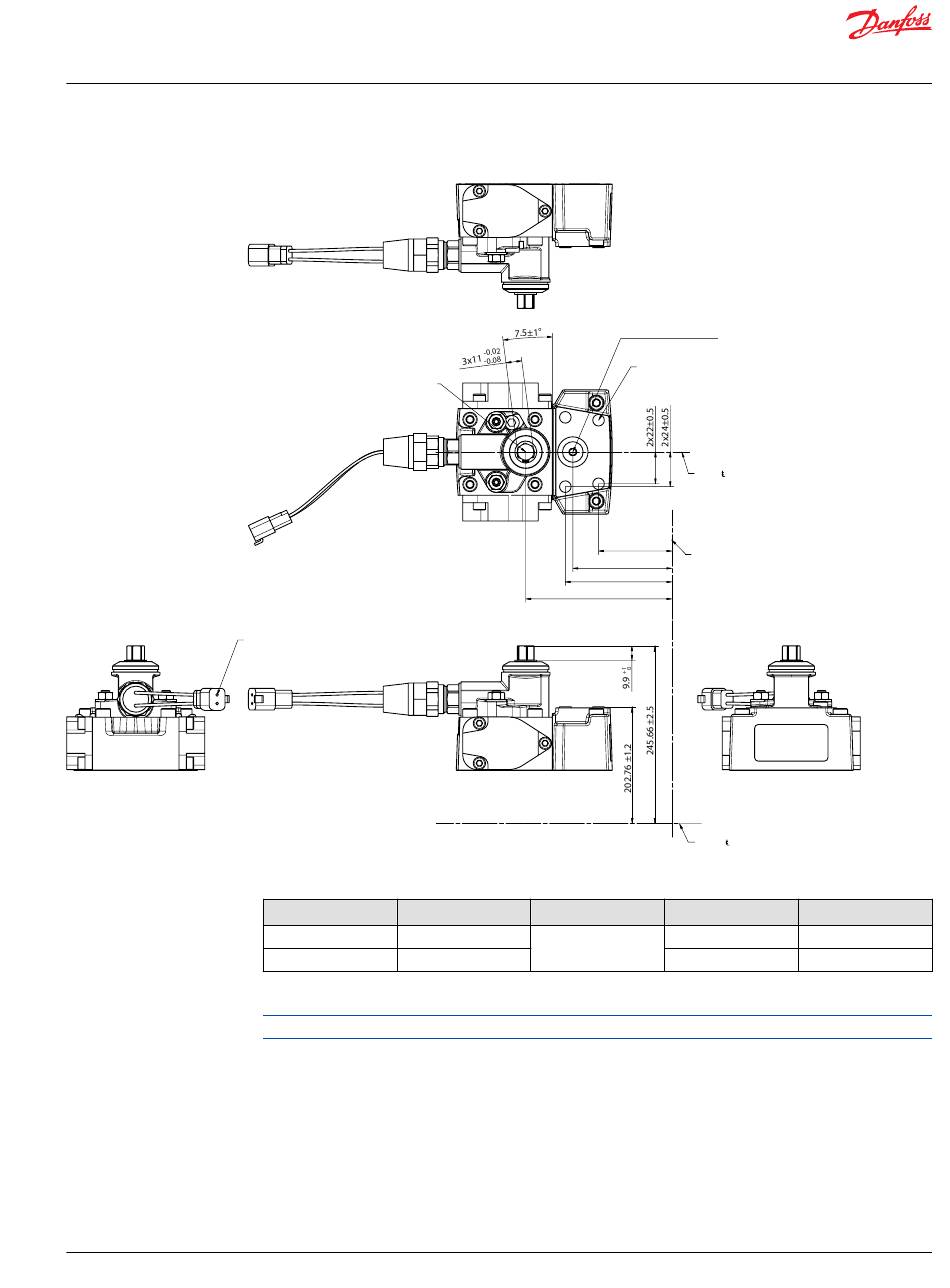

H1P 115/130 Manual Displacement Control (MDC) with NSS, option M2
©
Danfoss | May 2018
Control handle shaft
Neutral Start Switch connector:
Deutsch DT04-2P
paint free
Neutral Start Switch connector:
Pin
Assignment
1
Supply
2
Ground
Please contact Danfoss representative for specific installation drawings.
Case gauge port M14
ISO 11926-1 -7/16-20
4x M6x1-6H thd.
9 min. full thd. depth
paint free
Shaft
52.9±0.8
Mounting flange
70.7±0.8
75.9±0.8
103.3±0.8
Shaft
Pin
OR
1
2
70111500-D11
Assignment
Ground
Supply
BC00000198en-US0901 | 61
