Connector; Case Gauge Port M14; Lever - Danfoss H1 Series Technical Information

Technical Information
H1P 115/130 Axial Piston Single Pumps
Control Options
© Danfoss | May 2018
Neutral Start Switch data
Max. continuous current with switching
Max. continuous current without switching
Max. voltage
Electrical protection class

Connector

Connector
1 2
P003 480
Connector ordering data
Description
Mating connector
Wedge lock
Socket contact (16 and 18 AWG)
Danfoss mating connector kit

Case Gauge Port M14

The drain port should be used when the control is mounted on the unit's bottom side to flush residual
contamination out of the control.

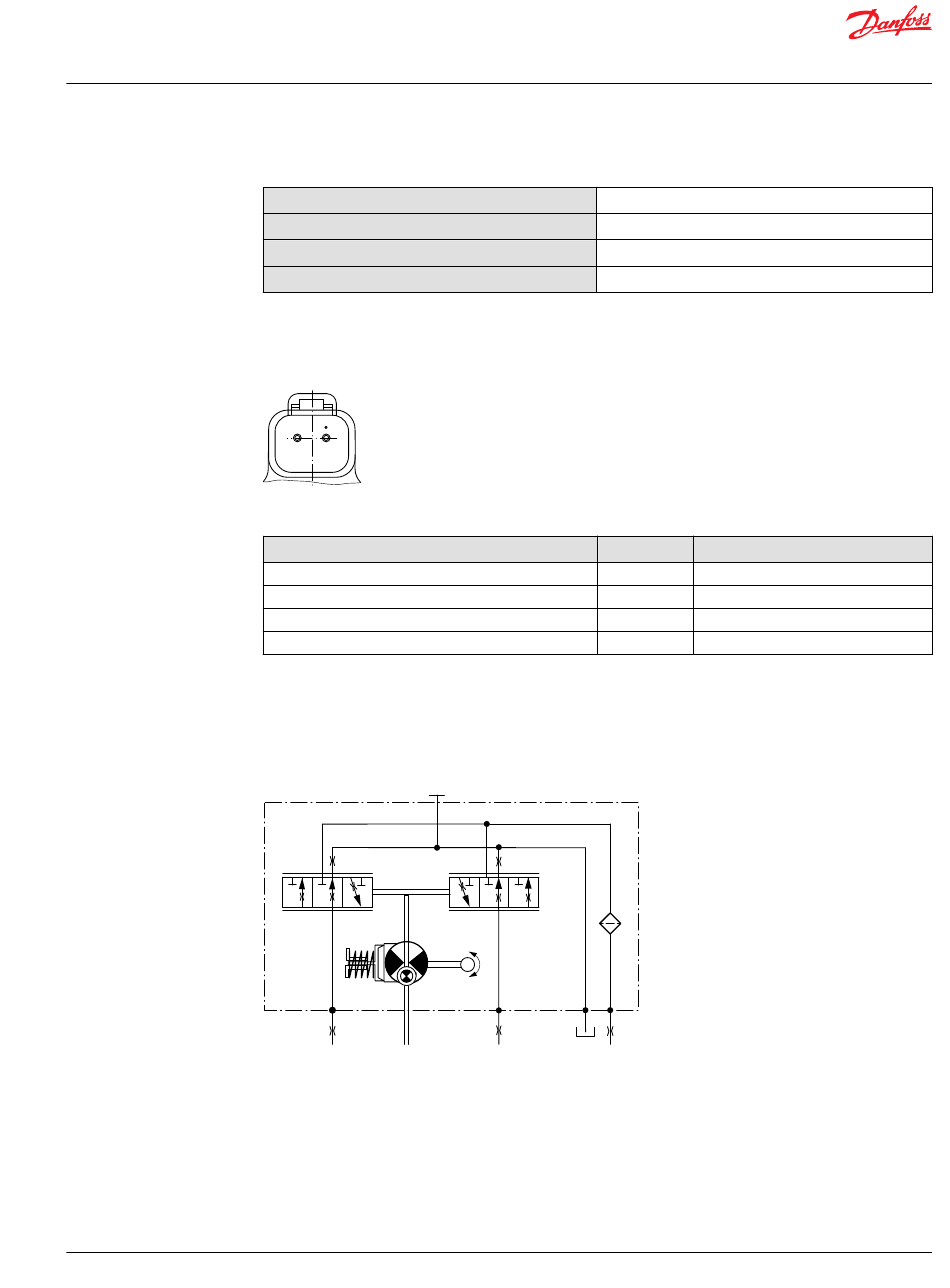

MDC schematic diagram
M14
M5

Lever

MDC-controls are available with an integrated lever.
8.4 A
20 A
36 V
DC
IP67 / IP69K with mating connector
Quantity
1
1
2
1
M4 M3
P005 701
Ordering data
DEUTSCH DT06-2S
DEUTSCH W2S
DEUTSCH 0462-201-16141
K29657
