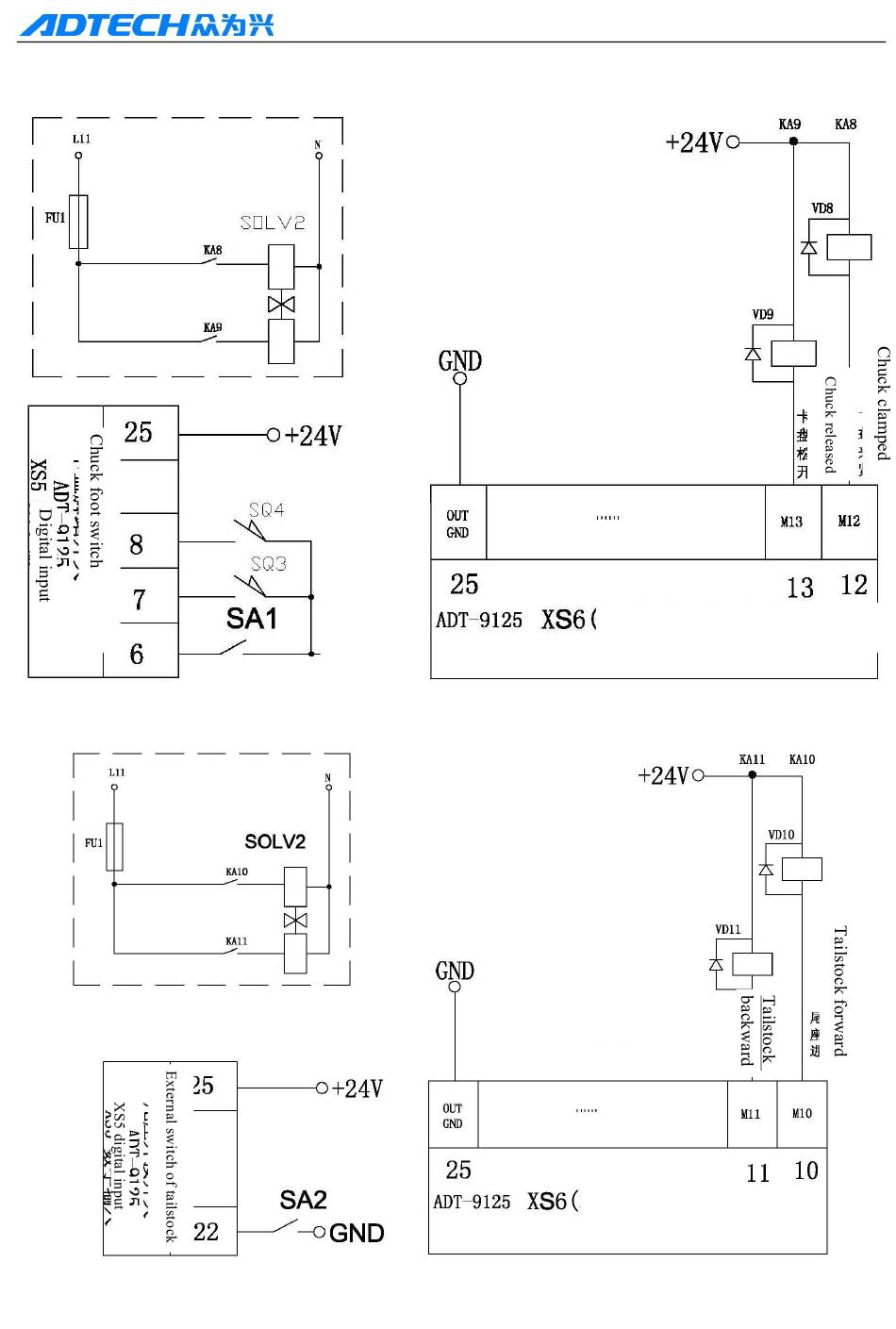

13.19.7 CHUCK CONTROL WIRING DIAGRAM
13.19.8 TAILSTOCK CONTROL WIRING DIAGRAM
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
Clamping
signal
Release signal
Note:
1. KA center relay, DC24V
2. VD Freewheeling diode
(machine tool output terminal board)
Note:
1. KA center relay,
DC24V
2. VD Freewheeling diode
(machine tool output terminal
board)
98
