13.14. Programmable I/O port

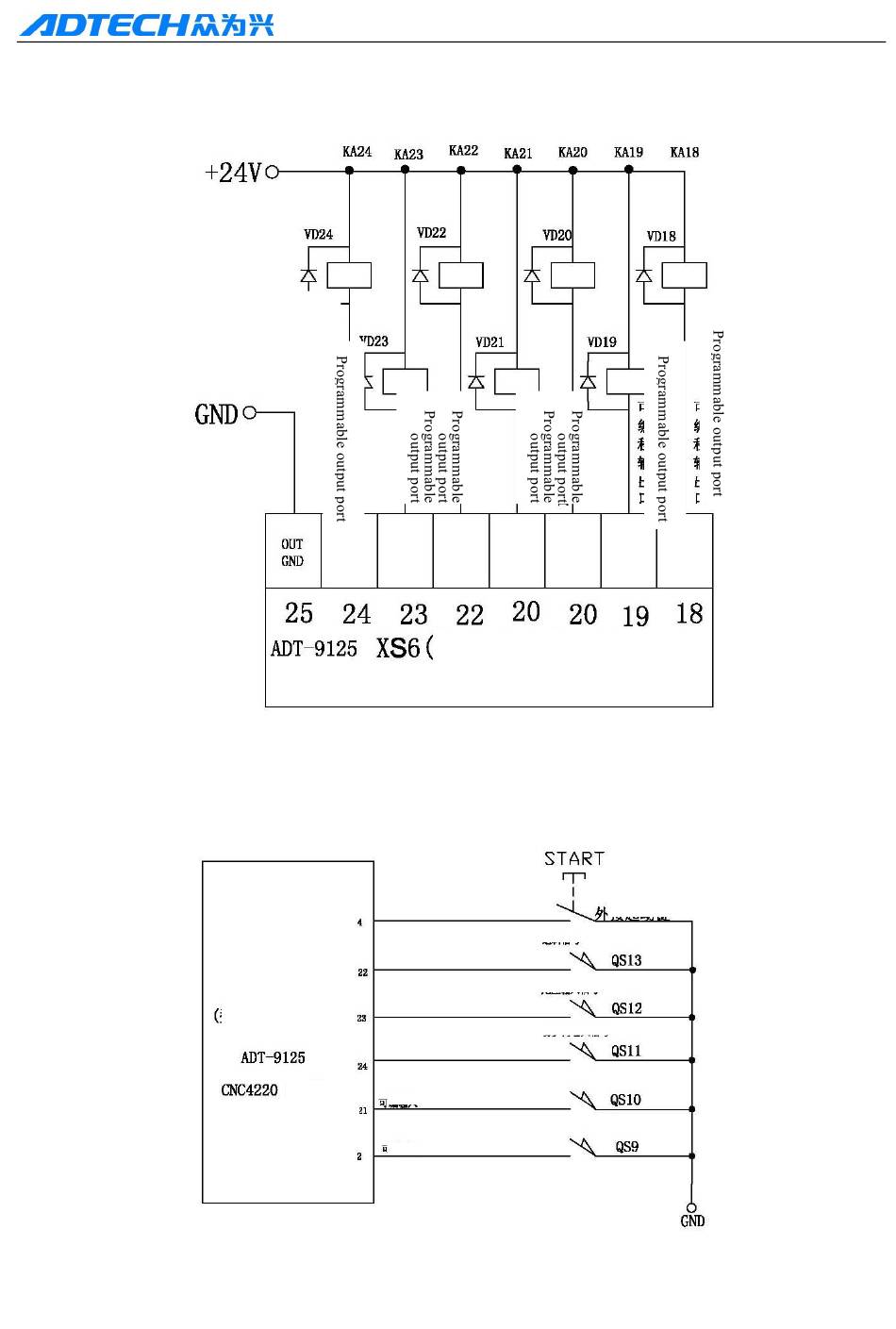

13.14.1 WIRING DIAGRAM OF PROGRAMABLE I/O PORT

Note:
1. KA center relay, DC24V
2. VD Freewheeling diode
13.14.2 WIRING DIAGRAM OF PROGRAMABLE INPUT AND
CERTAIN CONTROL PORTS
(Digital input
terminal board)
XS5
Programmable input
interface
Programmable input
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
(machine tool output terminal board)
Feeding signal
Tailstock input signal
Protection door input signal
External
start key
84
