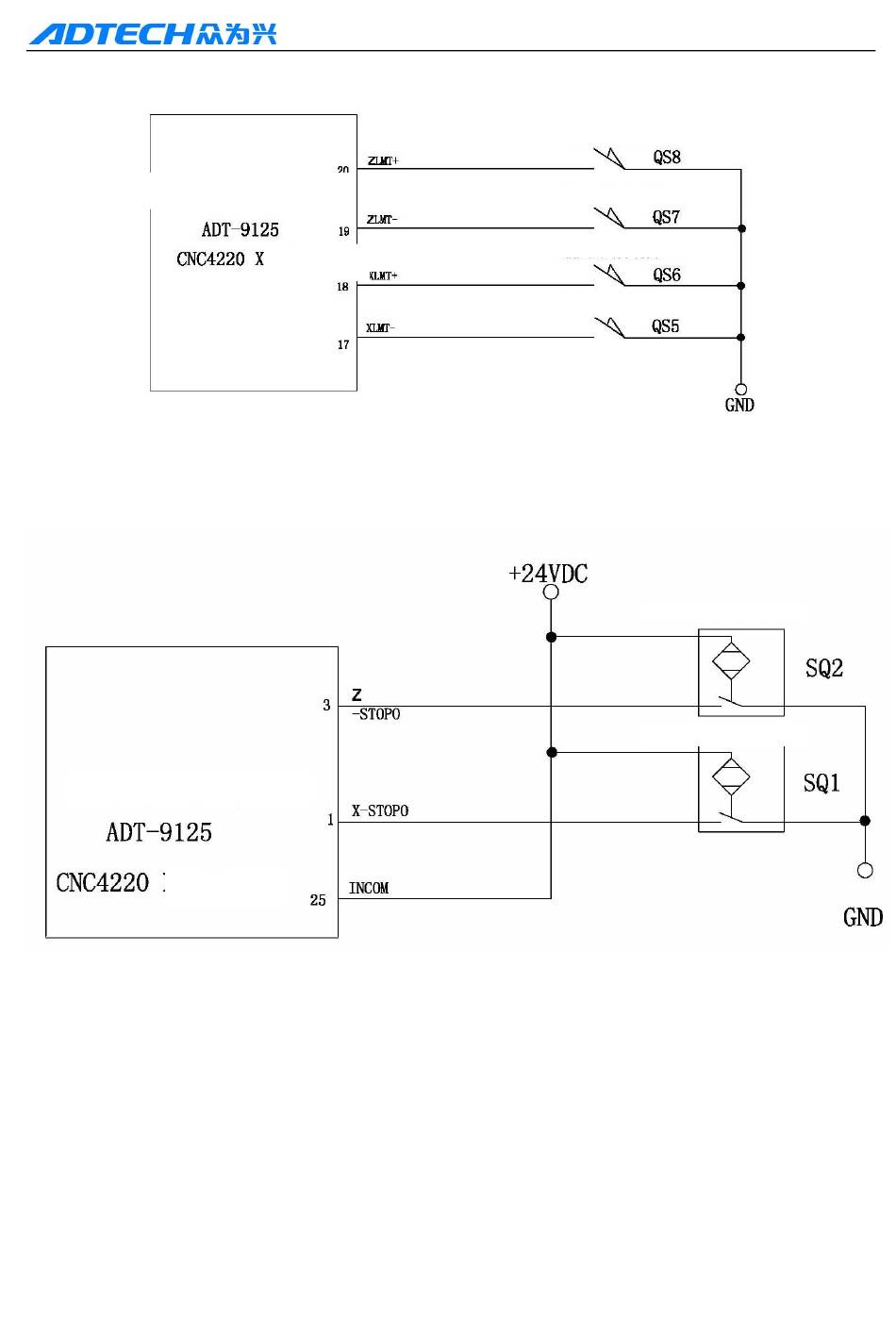

13.19.4 HARD LIMIT WIRING DIAGRAM

(Digital input wiring board)

13.19.5 MECHANICAL ORIGIN WIRING DIAGRAM

(Digital input terminal board)
XS5 interface
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
XS5 interface
Axis Z positive limit travel switch
xis Z negative limit travel switch
Axis X positive limit travel switch
xis X negative limit travel switch
Axis Z origin approach switch
Axis X origin approach switch
