CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st

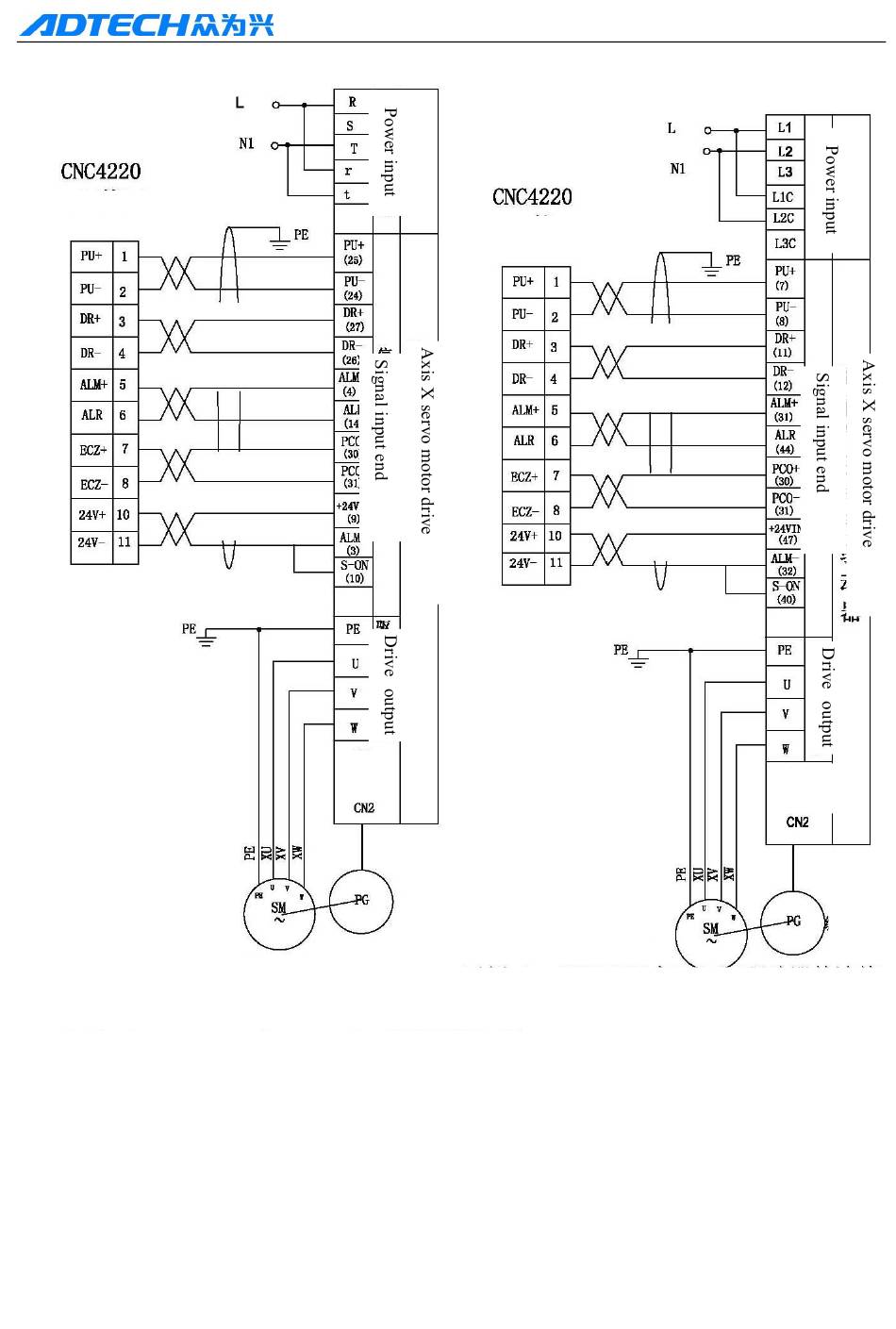

The wiring diagrams of some drives are shown below.
XS1 interface
XS1 interface
Drive
Drive
Axis X servo motor Encoder
Axis X servo motor Encoder
Example 2: Connection of CNC4220 and SGDM drive
Example 1: Connection of CNC4220 and JaBao QS5 drive
