(Green)
Note:
1. KA center relay, DC24V
2. VD freewheeling diode

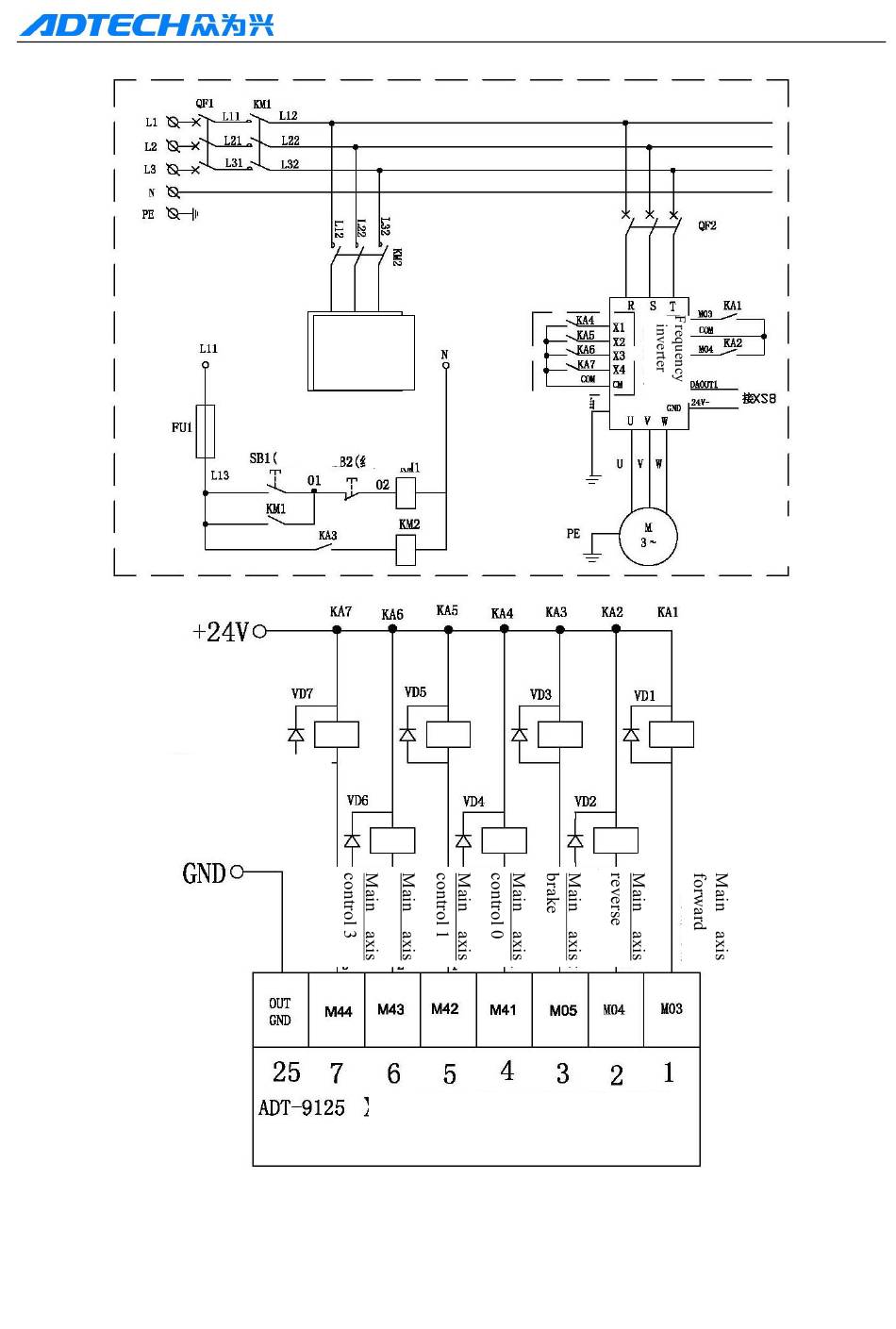

CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
YA
electromagne
tic brake
Multi-section
control main
axis
(Red)
(machine tool output terminal board)
Frequency
inverter main axis
72
Table of
Contents
Previous
Page
Next
Page
1
...
70
71
72
73
74
75
76
77
