Description Of Editing Keypad - Adtech ADT-CNC4220 User Manual

Single
segment

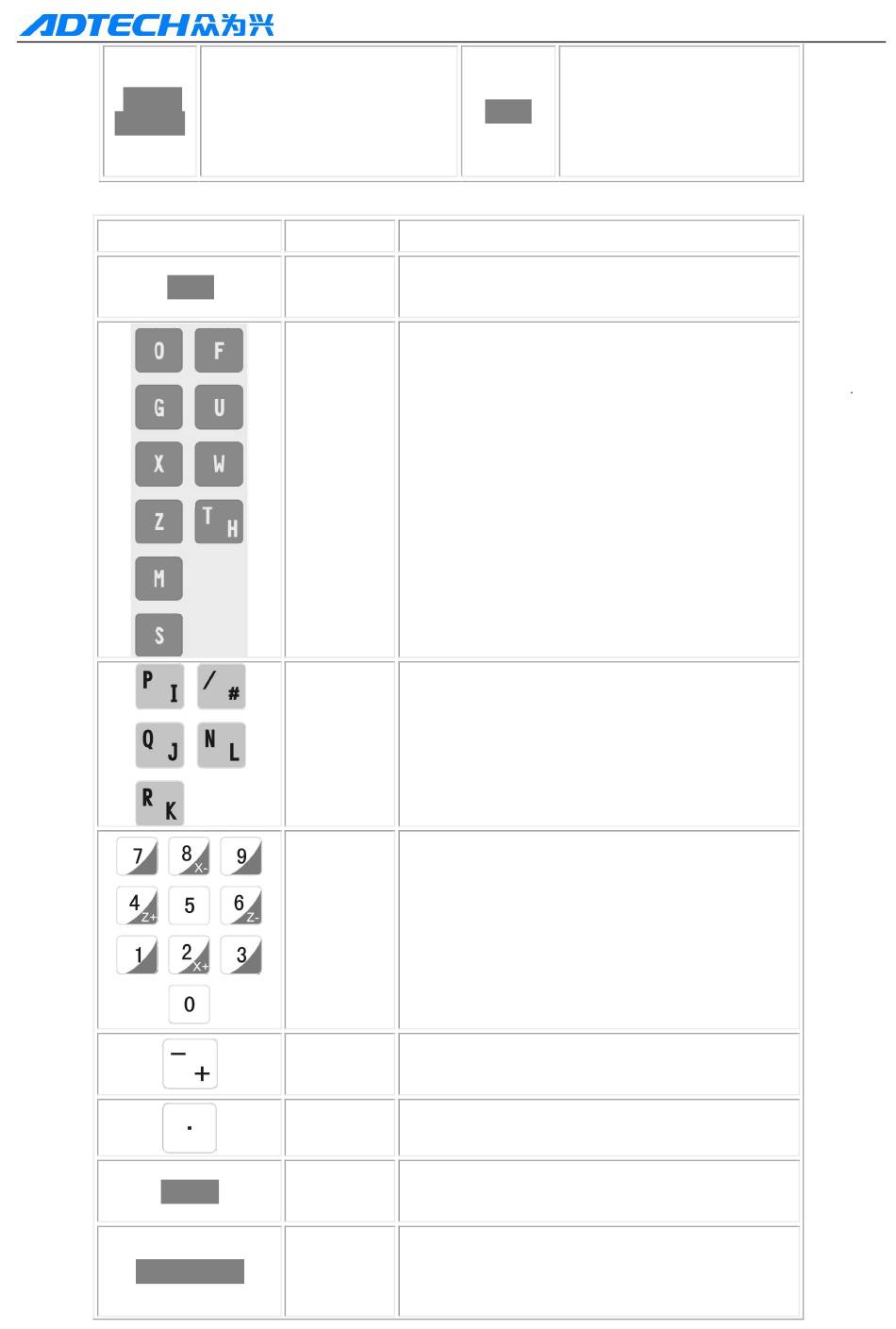

1.1. Description of editing keypad

Keys
Reset
Cancel
Insert/Delete
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
To indicate the single
segment mode
Name
Reset key
Address
keys
Double
address
key
Number
keys
Minus
sign key
Radix
point
Cancel
key
Editing
keys
Reset
Function description
System reset, feeding, output stop, etc.
Input address
Press the keys repeatedly to switch between
the letters
Input numbers
The number keys 8, 2, 6 and 4 are X-, X+, Z-
and Z+ in manual mode and single step
mode respectively; the direction key 5 is the
quick switch in manual mode
Input the minus sign
Input radix point
Clear the contents in input line
Insert or delete programs or fields while
editing
To indicate the reset
mode
