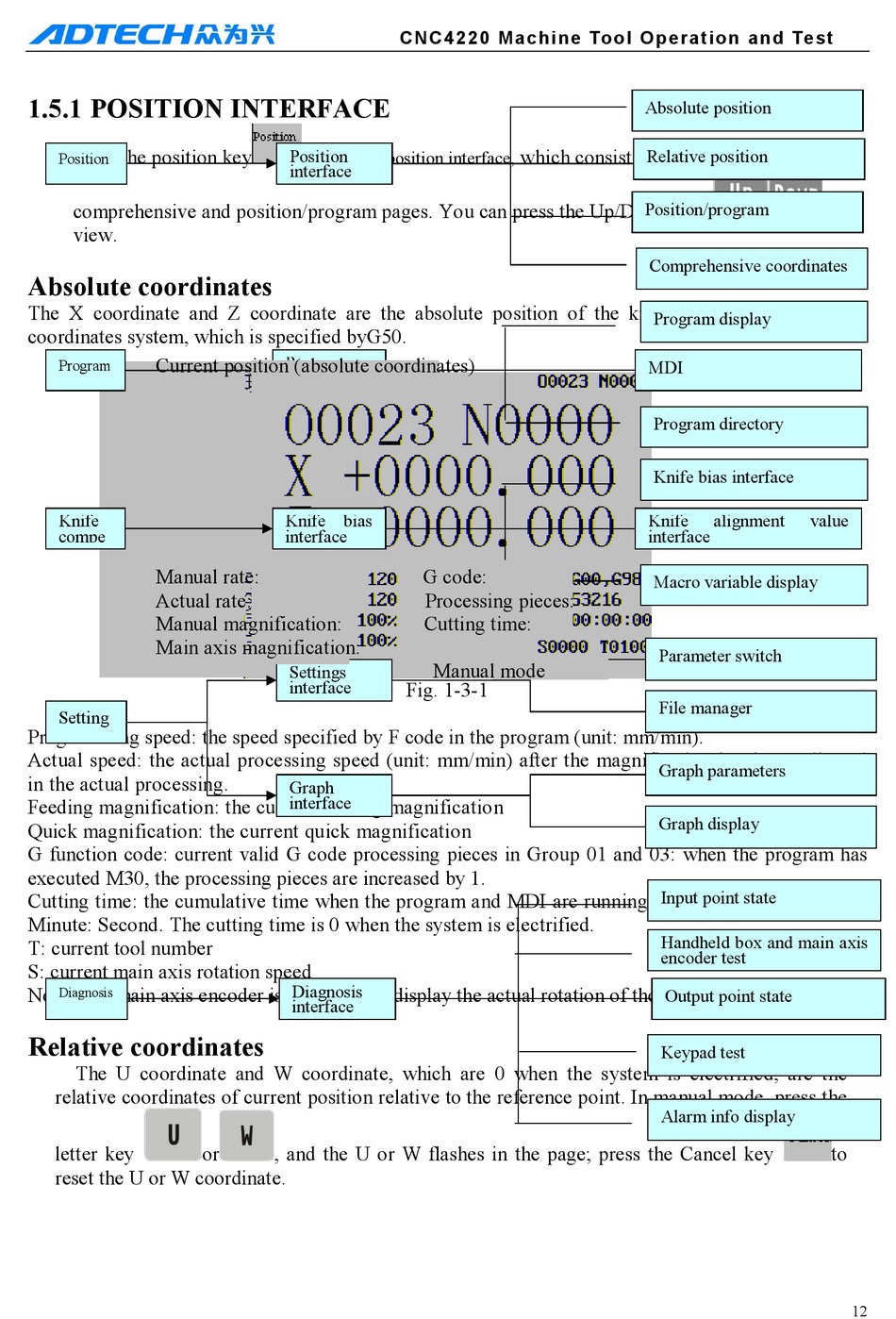

1.5.1 POSITION INTERFACE

Press the position key
Position
comprehensive and position/program pages. You can press the Up/Down key
view.
Absolute coordinates
The X coordinate and Z coordinate are the absolute position of the knife in current work piece
coordinates system, which is specified by G50.
Current position (absolute coordinates)
Program
Knife
compe
nsation
Manual rate:
Actual rate:
Manual magnification:
Main axis magnification:
Setting
Programming speed: the speed specified by F code in the program (unit: mm/min).
s
Actual speed: the actual processing speed (unit: mm/min) after the magnification has been adjusted
in the actual processing.
Feeding magnification: the current feeding magnification
Quick magnification: the current quick magnification
G function code: current valid G code processing pieces in Group 01 and 03: when the program has
executed M30, the processing pieces are increased by 1.
Cutting time: the cumulative time when the program and MDI are running; the time format is: Hour:
Minute: Second. The cutting time is 0 when the system is electrified.
T: current tool number
S: current main axis rotation speed
Note: The main axis encoder is necessary to display the actual rotation of the main axis. Diagnosis
Relative coordinates
The U coordinate and W coordinate, which are 0 when the system is electrified, are the
relative coordinates of current position relative to the reference point. In manual mode, press the
letter key
reset the U or W coordinate.
Position
to enter the position interface,
interface
Program
interface
Knife bias
interface
Settings
interface
Graph
interface
Diagnosis
interface
or , and the U or W flashes in the page; press the Cancel key
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
which consists of absolute, relative,
G code:
Processing pieces:
Cutting time:
Manual mode
Fig. 1-3-1
Absolute position
Relative position
Position/program
Comprehensive coordinates
Program display
MDI
Program directory
Knife bias interface
Knife alignment value
interface
Macro variable display
Parameter switch
File manager
Graph parameters
Graph display
Input point state
Handheld box and main axis
encoder test
Output point state
Keypad test
Alarm info display
to
to
