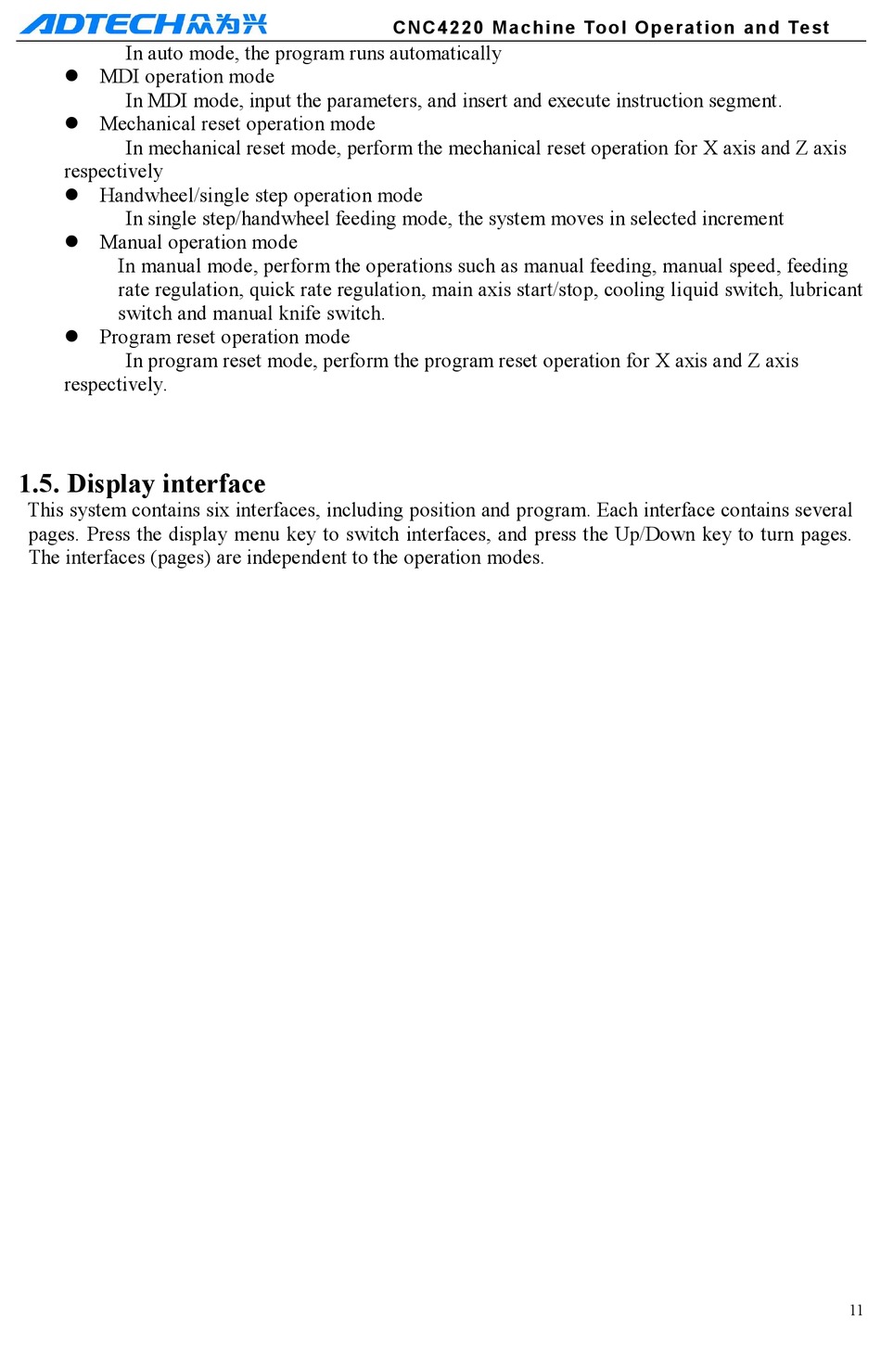

In auto mode, the program runs automatically
 MDI operation mode
In MDI mode, input the parameters, and insert and execute instruction segment.
 Mechanical reset operation mode
In mechanical reset mode, perform the mechanical reset operation for X axis and Z axis
respectively
 Handwheel/single step operation mode
In single step/handwheel feeding mode, the system moves in selected increment
 Manual operation mode
In manual mode, perform the operations such as manual feeding, manual speed, feeding
rate regulation, quick rate regulation, main axis start/stop, cooling liquid switch, lubricant
switch and manual knife switch.
 Program reset operation mode
In program reset mode, perform the program reset operation for X axis and Z axis
respectively.

1.5. Display interface

This system contains six interfaces, including position and program. Each interface contains several
pages. Press the display menu key to switch interfaces, and press the Up/Down key to turn pages.
The interfaces (pages) are independent to the operation modes.
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
