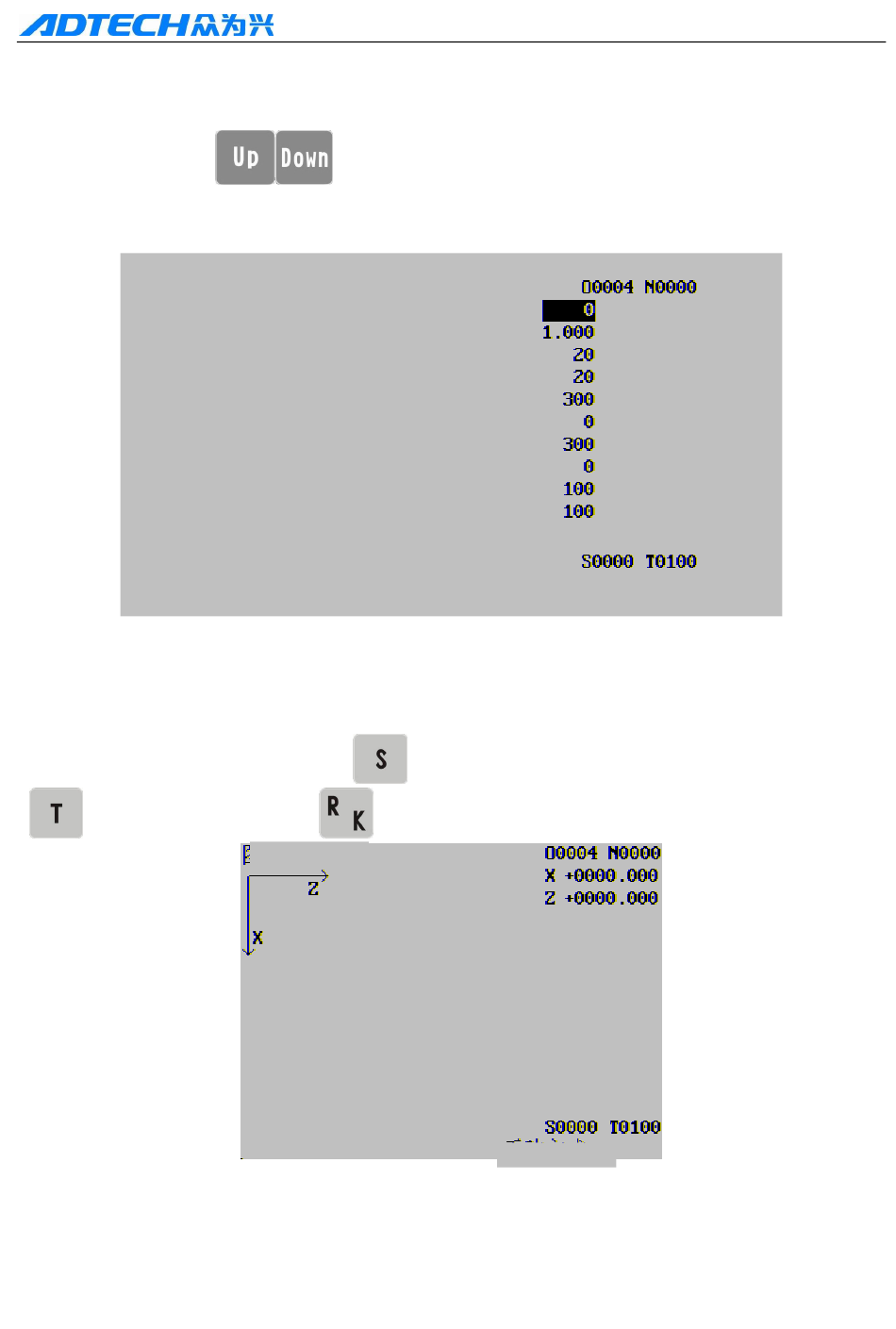

1.5.8 GRAPH INTERFACE

The graph interface contains graph parameters and graph display pages, and you can press
the Up/Down key

1.5.9 GRAPH PARAMETERS

In graph parameters page, you can select coordinates system of graph, scaling and range.
Graph parameters
Coordinates selection(0:XZ,1:ZX)
Scaling
Graph center X (work piece coordinates)
Graph center Z (work piece coordinates)
Maximum X
Minimum X
Maximum Z
Minimum Z
X origin bias of graph
Z origin bias of graph
Data =

1.5.10 GRAPH DISPLAY

In graph display page, the motion track (referring to absolute coordinates) of the processing
program is displayed. Press the S key
to stop and press the R key
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
to view.
+
Fig. 1-3-13
in this page to start drawing, press the T key
to clear.
Graph
Start drawing S * End drawing T
Fig. 1-3-14
Manual mode
Manual mode
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
