1.5.4 PROGRAM DIRECTORY

The contents in program directory page:
(a) System version number: display the current version number of the system
(b) Saved programs: the saved programs number (including sub-programs); remaining: the
programs number that still can be saved
(c) Occupied memory: the memory occupied by the saved programs; Remaining: available
memory
(d) Program directory: display the numbers saved programs in sequence

1.5.5 KNIFE COMPENSATION INTERFACE

Press the Knife compensation key
to display knife bias and macro variable.

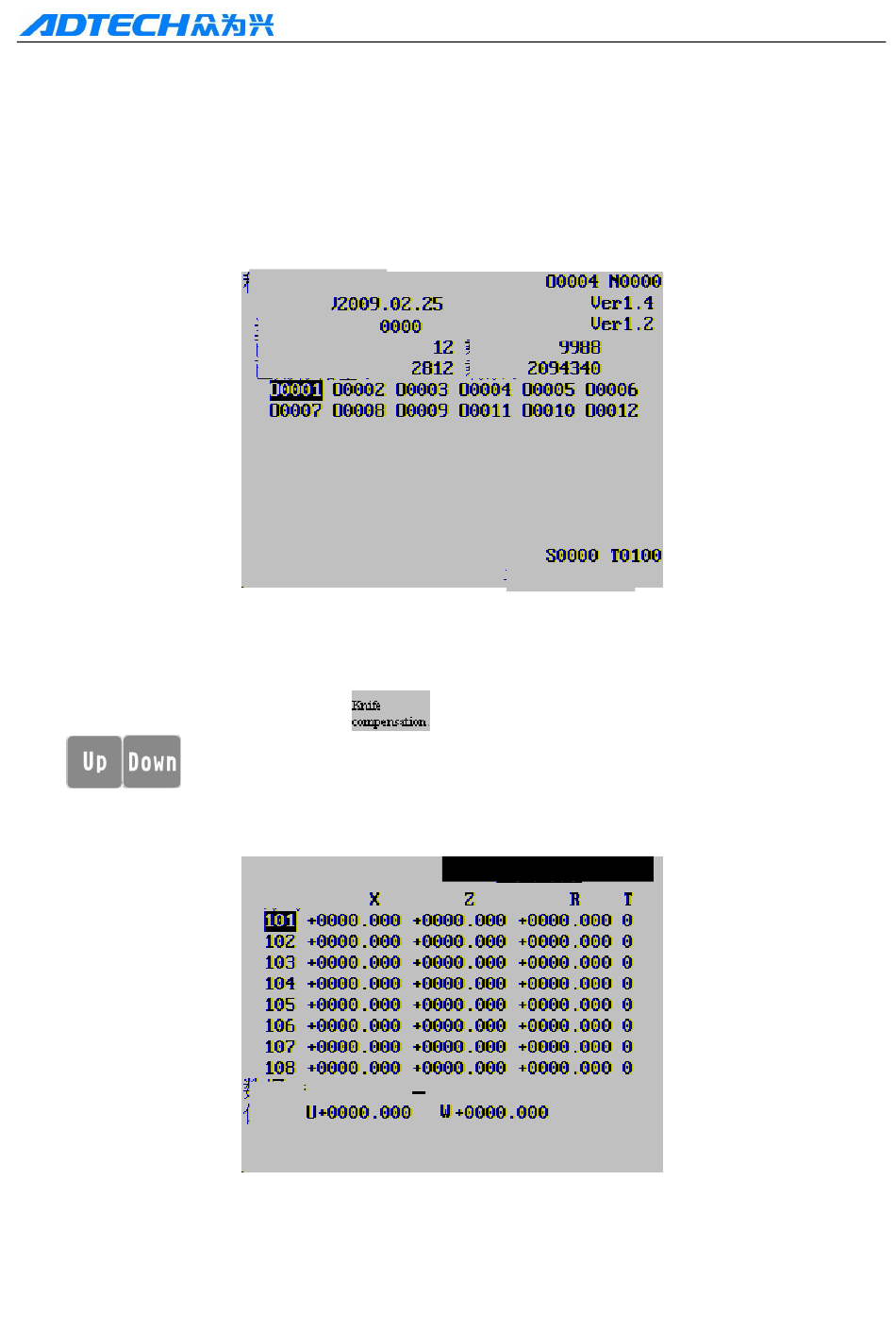

Knife bias display
Program directory
Version:
Current work area:
Saved programs:
Used storage:
Measurement value
S/N
Data =
Position:
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
Hardware version:
Library version:
Remaining:
Remaining:
Manual mode
Fig. 1-3-7
to enter the bias interface, and press the Up/Down key
Fixed knife alignment
Fig. 1-3-8
