Magnification
Knife replacing
Chuck
Cooling
Main axis/positive
Main axis/stop
Main axis/negative
Single section
Edit
Auto
MDI
Reset
Single step
Manual

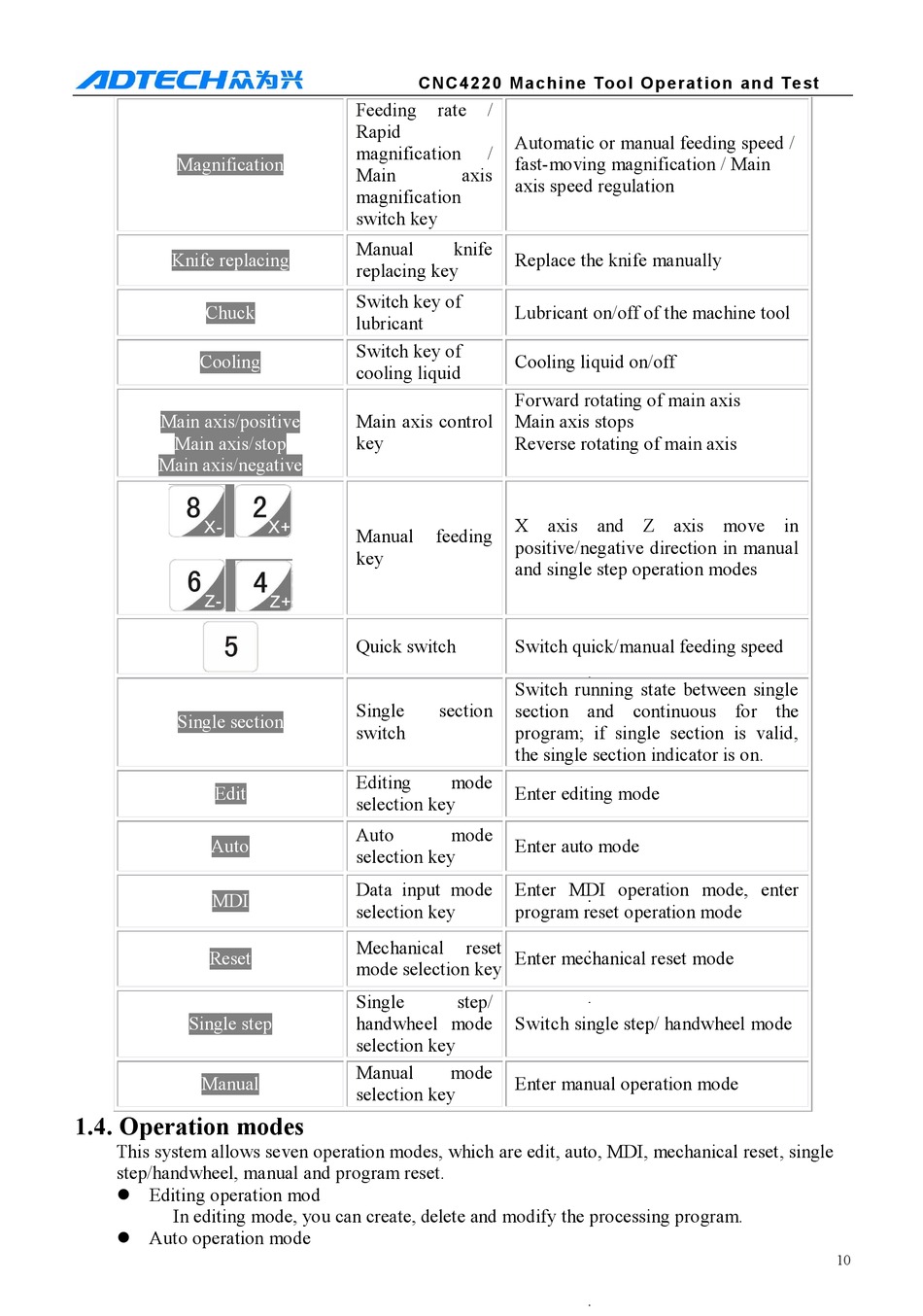

1.4. Operation modes

This system allows seven operation modes, which are edit, auto, MDI, mechanical reset, single
step/handwheel, manual and program reset.
 Editing operation mod
In editing mode, you can create, delete and modify the processing program.
 Auto operation mode
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
Feeding rate /
Rapid
Automatic or manual feeding speed /
magnification /
fast-moving magnification / Main
Main axis
axis speed regulation
magnification
switch key
Manual knife
Replace the knife manually
replacing key
Switch key of
Lubricant on/off of the machine tool
lubricant
Switch key of
Cooling liquid on/off
cooling liquid
Forward rotating of main axis
Main axis control Main axis stops
key Reverse rotating of main axis
X axis and Z axis move in
Manual feeding
positive/negative direction in manual
key
and single step operation modes
Quick switch Switch quick/manual feeding speed
Switch running state between single
Single section section and continuous for the
switch program; if single section is valid,
the single section indicator is on.
Editing mode
Enter editing mode
selection key
Auto mode
Enter auto mode
selection key
Data input mode Enter MDI operation mode, enter
selection key program reset operation mode
Mechanical reset
Enter mechanical reset mode
mode selection key
Single step/
handwheel mode Switch single step/ handwheel mode
selection key
Manual mode
Enter manual operation mode
selection key
