Program interface
Press the Program key
directory pages in non-editing operation mode. Press the Up/Down key

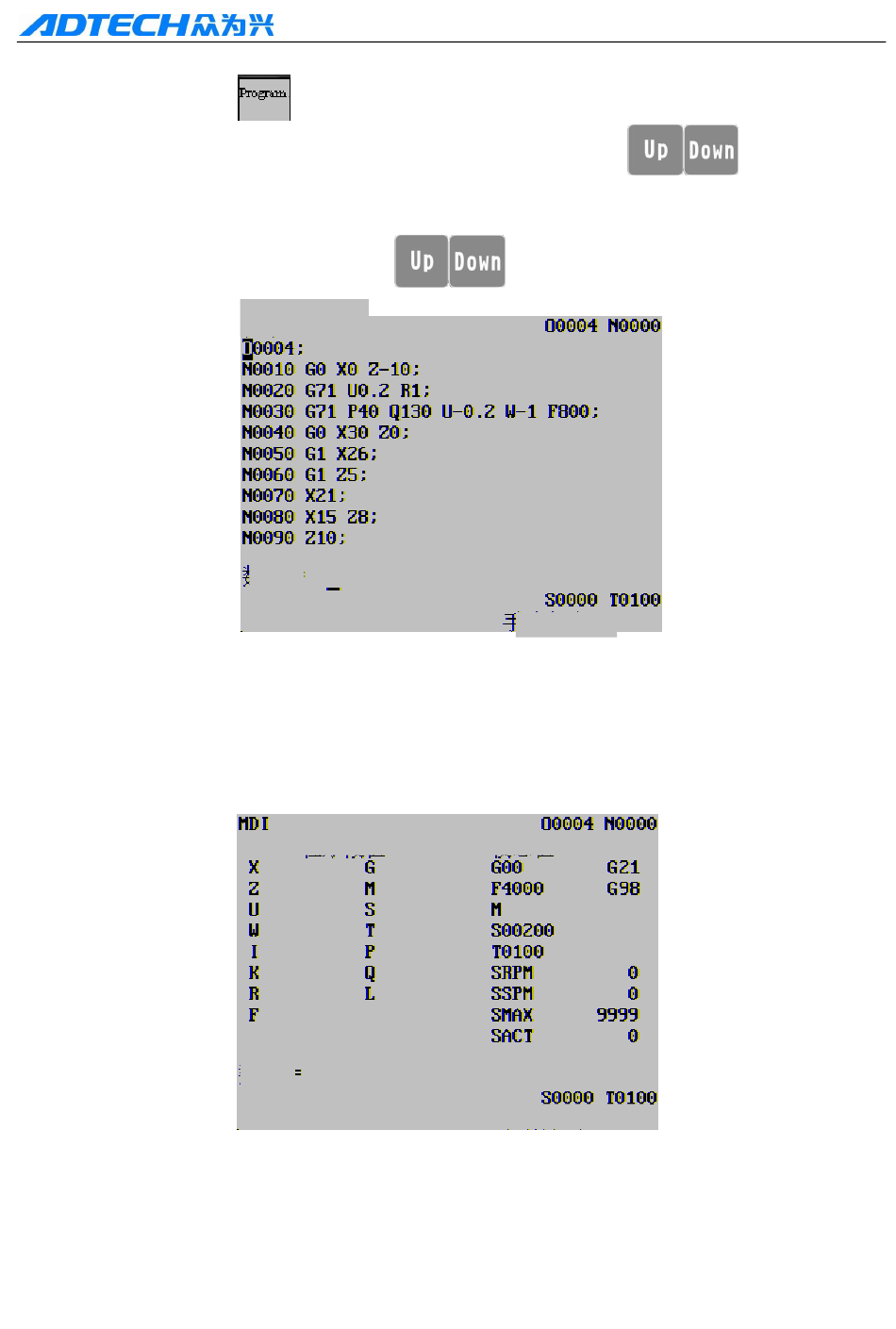

1.5.2 PROGRAM DISPLAY

In the program page, display the contents of the program, including current program section. In
editing mode, press the Up/Down key

1.5.3 MDI

In MDI page, display the current instruction states of G, M, S, T and F, and display the contents
of current program section in auto and MDI modes.
CNC 4 2 2 0 M a c hi ne Too l Op e ra t ion an d Te st
to enter the interface, which consists of program, MDI and program
Program
Data
Fig. 1-3-5
Program section value
Data
to view the contents of the program.
Manual mode
Mode state value
Manual mode
Fig. 1-3-6
to view.
