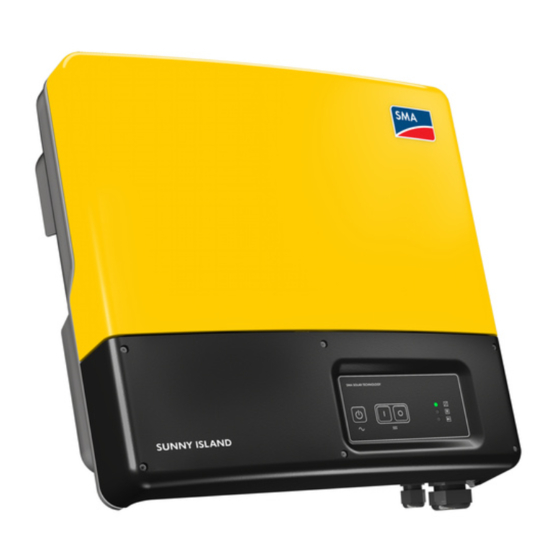

SMA Sunny Island 2012 Technical Description

Stand-alone grid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

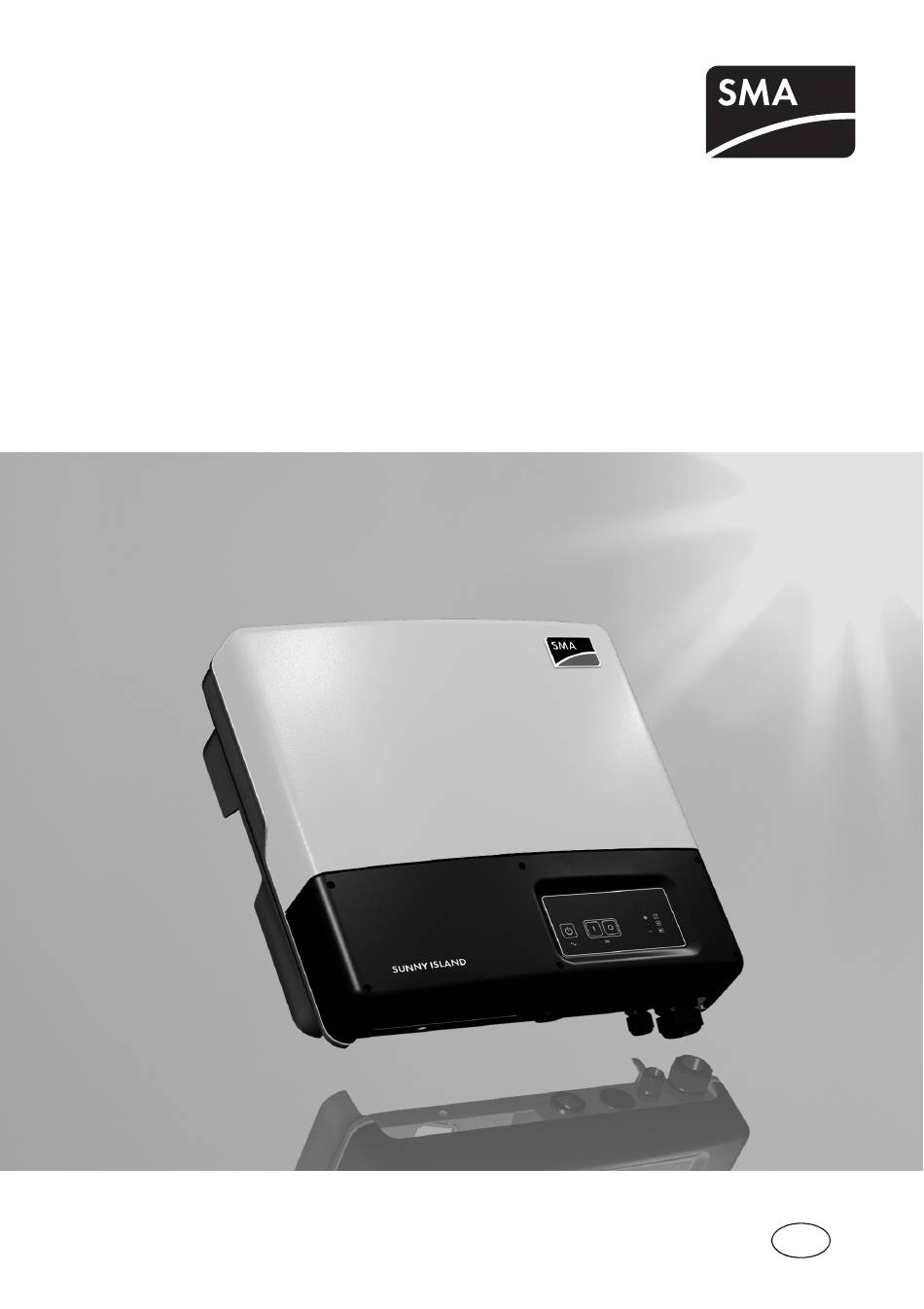

Stand-alone grid inverter
Sunny Island 2012/2224
Technical Description
EN
SI2012_2224-TEN082311 | 98-2005110 | Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sunny Island 2012 and is the answer not in the manual?

Questions and answers

Gemechu Akessa
May 25, 2025

battery sempol mode sembol oloyes red light wat the peroblem!

0
1 comments:
Mr. Anderson
May 26, 2025

The red light indicates a fault. When a fault occurs, the device goes into standby mode, and a fault notice appears on the display. The user must acknowledge and clear the fault before restarting the Sunny Island.

This answer is automatically generated

0

Related Manuals for SMA Sunny Island 2012

Summary of Contents for SMA Sunny Island 2012

  • Page 1 Stand-alone grid inverter Sunny Island 2012/2224 Technical Description SI2012_2224-TEN082311 | 98-2005110 | Version 1.1...
  • Page 2 Overview of the menu area: Submenu 2 Submenu 1 Main menu...

  • Page 3: Table Of Contents

    Sunny Island 2012/2224 ........
  • Page 4 Table of Contents SMA Solar Technology AG Opening and Closing......36 Opening the Sunny Island ......37 Closing the Sunny Island .
  • Page 5 SMA Solar Technology AG Table of Contents 8.2.1 Display Messages ..........73 8.2.2...
  • Page 6 Table of Contents SMA Solar Technology AG 10.4.5 Show Status ..........113 10.4.6...
  • Page 7 SMA Solar Technology AG Table of Contents 13.1.8 Operation Together With Sunny Boys ......144 13.1.9...
  • Page 8 19.4 SMA Products (Optional)......196 Technical Data ....... . . 197 20.1...

  • Page 9: Notes On This Manual

    1 Notes on this Manual This technical description explains the functioning, correct installation and operation of a stand- alone grid system. It describes the Sunny Island 2012 / 2224 inverter as well as the Sunny Remote Control 1 display. Information on the following topics can be found in the respectively labeled sections: - Installation: Chapter 2 "System Overview"...

  • Page 10: Target Group

    SMA Solar Technology AG Notes on this Manual Do not use the stand-alone grid system devices for purposes other than those indicated in this technical description. Use of the devices for other purposes can void the warranty as well as damage both the devices and the system.

  • Page 11: Syntax

    SMA Solar Technology AG Notes on this Manual Notice! "NOTICE!" designates a safety warning about a condition which can lead to property damage if the warning is ignored. Information "Notice" designates information which is important for the optimal operation of the product.

  • Page 12: System Overview

    DC fuse WARNING! The Sunny Island 2012 / 2224 has no internal DC fuse. Install an external DC fuse between the Sunny Island and the battery (see chapter 7.2 "DC connection" (Page 43)). SI2012_2224-TEN082311...
  • Page 13 Always use the MMC/SD card for saving data and events. This way, in case of a failure, the SMA Solar Technology AG can help you quickly. The Sunny Island monitors the set voltage and frequency limits on the grid and generator. If these limits are not observed, it disconnects from the external source without interruption and changes to stand-alone grid operation.
  • Page 14 SMA Solar Technology AG System Overview SI2012_2224-TEN082311 Technical Description...
  • Page 15 SMA Solar Technology AG System Overview 1-phasig 1-phasig parallel 3-phasig Technical Description SI2012_2224-TEN082311...

  • Page 16: Safety Instructions

    SMA Solar Technology AG Safety Instructions 3 Safety Instructions Please follow all operating and safety instructions in this manual. Failure to follow these instructions could result in damage to the device and personal hazard. DANGER! Risk of lethal electric shock when opening the devices.

  • Page 17: Unpacking

    Ensure that all parts are included in the delivery (see section 4.1 "Scope of delivery" (Page 18)). If something is missing or if the devices have been damaged during shipment, contact the SMA Solar Technology AG immediately. Further information is provided in section .21 "Contact"...

  • Page 18: Scope Of Delivery

    4.1.1 Sunny Island 2012/2224 The following elements are included: 2x E 2x D Sunny Island 2012/2224 and lid. Wall bracket Battery temperature sensor 3-pin print terminals (for connecting relays 1 & 2) 4-pole print terminals for connecting battery temperature sensors silicone tube 10 mm x 0.5 m...

  • Page 19: Sunny Remote Control 1

    SMA Solar Technology AG Unpacking 4.1.2 Sunny Remote Control 1 The following elements are included: Sunny Remote Control 1 (SRC-1) Screws and dowels CAT5e-FTP patch cables (2 x RJ45 plugs, 5 m) MMC/SD card Technical Description SI2012_2224-TEN082311...

  • Page 20: Name Plate/Firmware Version

    SMA Solar Technology AG Unpacking 4.2 Name Plate/Firmware Version 4.2.1 Sunny Island 2012/2224 You can identify the Sunny Island by the type plate and firmware version. The following diagram shows the type plate of the Sunny Island 2224. • The name plate is located outside on the right side of the housing.

  • Page 21: Sunny Remote Control 1

    SMA Solar Technology AG Unpacking 4.2.2 Sunny Remote Control 1 You can identify the display by the name plate. The type plate is located on the rear side of the Sunny Remote Control 1. Technical Description SI2012_2224-TEN082311...

  • Page 22: Installation

    SMA Solar Technology AG Installation 5 Installation Take note of the required installation conditions specified in the sections below before mounting, installing and commissioning the Sunny Island. 5.1 Required Tools and Resources The following tools and materials are recommended for mounting and installing the island grid...

  • Page 23: Sunny Island 2012/2224

    SMA Solar Technology AG Installation Material (not included in delivery) Heat shrink tubing 5.2 Sunny Island 2012/2224 5.2.1 Dimensions Housing: 185 mm 445 mm 470 mm Technical Description SI2012_2224-TEN082311...

  • Page 24: Choosing A Mounting Location

    SMA Solar Technology AG Installation 5.2.2 Choosing a Mounting Location DANGER! Death hazard due to fire or explosions The temperature of the enclosure can reach 60 C during operation. Do not install the device • on flammable construction materials, •...

  • Page 25: Observe Minimum Clearances

    SMA Solar Technology AG Installation 5.2.3 Observe minimum clearances The following minimum clearances to walls, other devices or objects must be observed to guarantee sufficient heat dissipation. All external cables are connected through the underside of the housing. This requires a minimum clearance of at least 50 cm.

  • Page 26: Mounting Position

    SMA Solar Technology AG Installation 5.2.4 Mounting Position NOTICE! Short-circuit due to condensation If the device is in operation while lying flat, water can accumulate due to condensation. • Operate the device only while it hangs vertically on a wall.

  • Page 27: Mounting The Sunny Island With A Wall Mounting Bracket

    SMA Solar Technology AG Installation 5.2.5 Mounting the Sunny Island with a Wall Mounting Bracket Use the wall bracket as a drilling template. 315.9 mm 260 mm 170 mm Number of drilled holes used • When mounting onto a wall, use at least two of the horizontal holes and the lowest one in the middle.
  • Page 28 SMA Solar Technology AG Installation Mount the wall bracket. Transporting the Sunny Central For the transportation and the installation of the Sunny Island use the handles at the sides of its enclosure. Hang the device onto the wall bracket with its attachment plate somewhat displaced to the left.
  • Page 29 SMA Solar Technology AG Installation Check on both sides to see that the device sits correctly. Secure the enclosure so it cannot be accidentally lifted up. Shove the Sunny Island toward the right on the wall bracket until it snaps into place with the safety stud on its back side.
  • Page 30 SMA Solar Technology AG Installation Optional anti-theft protection Protect the device against theft. Secure the Sunny Island with a lock onto the wall mounting bracket. The lock must meet the following specifications: • Size: A: 6 mm - 10 mm in diameter B: 21 mm - 35 mm C: 20 mm –...

  • Page 31: Sunny Remote Control 1

    SMA Solar Technology AG Installation 5.3 Sunny Remote Control 1 5.3.1 Dimensions The external display has the following dimensions: 5.3.2 Choosing a Mounting Location • The installation location must be easily accessible. Using the display, you can control the Sunny Island and with it the island grid system.

  • Page 32: Wall Mounting

    SMA Solar Technology AG Installation 5.3.3 Wall Mounting Mount the Sunny Remote Control 1 on the wall. Proceed as follows: Allow enough room for installing a communications cable and a MMC/SD card. Determine the position of the two holes to be drilled using the Sunny Remote Control's mounting plate.

  • Page 33: Installing Batteries

    175 Ah per Sunny Island 2224 (24 V) at C • 350 Ah per Sunny Island 2012 (12 V) at C If an AC-coupled PV plant is to be connected to the system, the SMA Solar Technology AG recommends a battery capacity of at least: •...
  • Page 34 SMA Solar Technology AG Installation Batteries must be accommodated in protected rooms, and sufficient ventilation of the installation location must be ensured. In the case of batteries which are connected to one Sunny Island exclusively, there is no need for protection against direct or indirect contact, due to the safety low- voltage.
  • Page 35 SMA Solar Technology AG Installation Refer to the following table for the preferred values for the finishing charge rates and charge voltages for the battery types which may be used in the system, unless the battery manufacturer has determined other values:...

  • Page 36: Opening And Closing

    SMA Solar Technology AG Opening and Closing 6 Opening and Closing Enclosure lid Only remove the lower enclosure lid from the Sunny Island when you want to mount, install or maintain it. A = upper enclosure cover B = lower enclosure cover...

  • Page 37: Opening The Sunny Island

    SMA Solar Technology AG Opening and Closing 6.1 Opening the Sunny Island NOTICE! The components in the Sunny Island (e.g., communications interface) can be damaged by an electrostatic discharge! • When working on the Sunny Island and when handling the components observe all ESD safety regulations.

  • Page 38: Closing The Sunny Island

    SMA Solar Technology AG Opening and Closing Information The cover screws can be loosened but not removed, which keeps them from getting lost. 6.2 Closing the Sunny Island Ensure that all cables are properly laid and that all tools have been removed from within the Sunny Island's enclosure (see chapter 7 "Sunny Island Electrical Connection"...

  • Page 39: Sunny Island Electrical Connection

    SMA Solar Technology AG Sunny Island Electrical Connection 7 Sunny Island Electrical Connection DANGER! Risk of lethal electric shock due to wrong connection • Only qualified personnel should install the devices' connections. • Install line safety switches (max. 25 A) before the Sunny Island as seen from the grid side.

  • Page 40: At A Glance

    SMA Solar Technology AG Sunny Island Electrical Connection 7.1 At a Glance The following figure provides an overview of all connections of the Sunny Island: DC connections Additional protective earth conductor Additional connection terminals (battery current sensor, battery temperature sensor, etc.)
  • Page 41 SMA Solar Technology AG Sunny Island Electrical Connection Cable conduits in the enclosure. All cables are fed through the feed-troughs on the bottom side of the device (see following figure) and connected to the appropriate connection terminals on the Sunny Island.
  • Page 42 SMA Solar Technology AG Sunny Island Electrical Connection Obtain an overview of the different components and connection areas of the Sunny Island (see section 7.1 "At a Glance" (Page 40)). Detailed installation descriptions of the connections are provided in the following sections: - DC connection Chapter 7.2 "DC connection"...

  • Page 43: Dc Connection

    DC area (see chapter 7.3.1 "Grounding" (Page 47)). Calculating the Required Grounding Conductor Cross-Section The SMA Solar Technology AG cannot state generally valid values for the cross-section of the conductor required for the external grounding of the battery. The conductor dimensions depend on the type and size of the battery connected, the external fuse (DC side) and the material used for the grounding conductor.

  • Page 44: Connecting The Battery

    SMA Solar Technology AG Sunny Island Electrical Connection t = disconnection time in seconds = max. battery current (short circuit) in Amperes S = cross section of the conductor in mm² A grounding conductor of 10,000 mm² cross-section is thus adequate for short-circuit currents up to 16 A.

  • Page 45: Connecting The Sunny Island

    SMA Solar Technology AG Sunny Island Electrical Connection 7.2.3 Connecting the Sunny Island There is a "DC —" and a "DC +" connection provided for each ring cable lug (max. 95 mm²) for the battery feed cables in the Sunny Island.

  • Page 46: Ac Connection

    SMA Solar Technology AG Sunny Island Electrical Connection 7.3 AC Connection Connect the Sunny Island through a sub-distribution to the inland grid (loads, PV generator (Sunny Boy)) and to any other external sources (generator, grid). Information The sub-distribution unit must be equipped with appropriate circuit breakers. Be sure to observe all the applicable regional standards and guidelines.

  • Page 47: Grounding

    SMA Solar Technology AG Sunny Island Electrical Connection 7.3.1 Grounding Information In stand-alone configurations, the (protective) ground of the Sunny Island and its individual components must be wired as a TN grid only. All valid standards and guidelines must be taken into account! CAUTION! Danger of injury due to leakage current against PE.

  • Page 48: Ac1 (Loads/Sunny Boys)

    SMA Solar Technology AG Sunny Island Electrical Connection 7.3.2 AC1 (Loads/Sunny Boys) Connect, with three conductors via the subdistribution, for example, loads, PV generators (Sunny Boy) and wind power plants (Windy Boy), to the Sunny Island's AC1 connection. DANGER! Death hazard due to residual currents •...
  • Page 49 SMA Solar Technology AG Sunny Island Electrical Connection Fasten the protective earth (PE) cable onto the spring type terminal. Use a slot screwdriver (see figure below). Stick the screwdriver into the spring type terminal's slit. Push the screwdriver upward. The spring type terminal is now open.

  • Page 50: Ac2 (Gen/Grid)

    SMA Solar Technology AG Sunny Island Electrical Connection Connection in a 3-Phase System • In a 3-phase system, always connect the master to phase L1, slave 1 to phase L2 and slave 2 to phase L3. This circuitry results in a right rotating field.

  • Page 51: Sunny Remote Control 1

    SMA Solar Technology AG Sunny Island Electrical Connection Connection in a 3-Phase System • In a 3-phase system, always connect the master to phase L1, slave 1 to phase L2 and slave 2 to phase L3. This circuitry results in a right rotating field.
  • Page 52 SMA Solar Technology AG Sunny Island Electrical Connection Dismantle the preinstalled cable conduit on the enclosure floor. Remove the feed-through element completely from the mounting opening. Lay the cable equipped with RJ45 plugs through one of the openings in the inner rubber element.

  • Page 53: Communication

    SMA Solar Technology AG Sunny Island Electrical Connection 7.5 Communication 7.5.1 Communication with Sunny Island The Sunny Island can be connected in parallel or in a 3-phase system with up to two other Sunny Islands in order to increase the overall power. The devices communicate through CATe-FTP patch cables (with two RJ45 plugs each).
  • Page 54 SMA Solar Technology AG Sunny Island Electrical Connection Upon delivery of a Sunny Island, the "SyncIn" socket is terminated. Master (first Sunny Island): A terminator is plugged into the "SyncIn" socket. Insert the communication cable's RJ45 plug in the "SyncOut" socket. The plug snaps audibly into place.
  • Page 55 SMA Solar Technology AG Sunny Island Electrical Connection Slave 2 (third Sunny Island): Remove the terminator from the "SyncIn" socket. Plug the RJ45 plug of the communication cable from the slave 1 device in the "SyncIn" socket of the slave 2. The plug snaps audibly into place.

  • Page 56: Communication With External Devices

    Sunny Island Electrical Connection 7.5.2 Communication With External Devices You can connect SMA communication devices (e.g., Sunny Boy Control, Sunny WebBox) or a PC with the appropriate software to a communication interface. A detailed wiring diagram can be found in the communication device manual, the software, or on the Internet at www.SMA.de.
  • Page 57 SMA Solar Technology AG Sunny Island Electrical Connection When installing the communications interface proceed as follows: Lay the interface's communication cable in one of the free openings of the cable conduit seal's inner rubber element. Plan a sufficient lead length from the enclosure opening to the "ComOut"...
  • Page 58 The parameter "250.06 ComBaud" must be set correspondingly. Setting the Baudrate If Sunny Boys are connected to the communications bus, then the baud rate must be set to 1200 bps (factory setting). The Sunny Island uses the SMA-Net protocol for communication. SI2012_2224-TEN082311 Technical Description...

  • Page 59: Additional Connections

    SMA Solar Technology AG Sunny Island Electrical Connection 7.6 Additional Connections 7.6.1 Battery Temperature Sensor The battery temperature sensor measures the temperature of the connected battery. This is necessary since the optimum charging voltage for a battery largely depends on the temperature. Further information is provided in section 12.4 "Charge Control"...
  • Page 60 SMA Solar Technology AG Sunny Island Electrical Connection When connecting the battery temperature sensor proceed as follows: Pierce the rubber plugs with a pointed tool. Fit the cables with wire sleeves. Introduce both cables from the outside through the opening.

  • Page 61: Battery Current Sensor

    SMA Solar Technology AG Sunny Island Electrical Connection 7.6.2 Battery Current Sensor In addition to the internal measurement, the Sunny Island provides the possibility to measure the battery current via a shunt. You need this function if you intend to operate additional DC generators and DC loads in your island grid system.
  • Page 62 SMA Solar Technology AG Sunny Island Electrical Connection Installation notice The battery current sensor must be looped around the negative pole of the battery. In addition, the contact of that battery current sensor which is connected to the Sunny Island (1) must be connected to the terminal "BatCur+"...

  • Page 63: Multi-Function Relays 1 And 2

    SMA Solar Technology AG Sunny Island Electrical Connection Plug one wire into each of the "BatCur" contacts of the 4-pole terminal included. Tighten the screws of the contact. Observe the correct polarity of the leads (see also the installation notice above).
  • Page 64 SMA Solar Technology AG Sunny Island Electrical Connection Operating principles of the relays The relays are changeover contacts; they can be used as normally closed contacts (NCC) or as normally open contacts (NOC). The relay functions are listed as NO contact functions, in other words, the contact is closed if the relay is activated by selecting the function.
  • Page 65 SMA Solar Technology AG Sunny Island Electrical Connection Load shedding The Sunny Island can automatically switch off loads to protect the batteries from deep discharge. To do this, an external (AC or DC) power contactor must be installed between the Sunny Island and the loads (see also chapter 19.3 "Accessories (Optional)"...

  • Page 66: Batvtgout Power Supply

    SMA Solar Technology AG Sunny Island Electrical Connection 7.6.4 BatVtgOut Power Supply The battery voltage is conducted to the outside at these terminals. It is fused at both poles by PTC thermistors (max. 0.75 A) and can fluctuate depending on the battery status. This connection can, for example, be used to supply a DC contactor for load shedding.
  • Page 67 SMA Solar Technology AG Sunny Island Electrical Connection Proceed as follows when connecting the digital input: Pierce the rubber plugs with a pointed tool. Fit the cables with wire sleeves. Introduce both cables from the outside through the opening. Plug one wire into each of the "DigIn"...

  • Page 68: Configuring A System With Several Sunny Islands

    SMA Solar Technology AG Sunny Island Electrical Connection 7.7 Configuring a System with Several Sunny Islands The Sunny Island can be configured for various system combinations: • Single-phase system with one Sunny Island • Single-phase system witn two or three Sunny Islands connected in parallel •...

  • Page 69: Concluding Tasks

    SMA Solar Technology AG Sunny Island Electrical Connection The configuration possibilities of the rotary code switch at a glance: Parameter Meaning Master Slave 1 Slave 2 7.8 Concluding Tasks Remove all tools from the enclosure. Have all cables been laid so as to be strain-relieved?

  • Page 70: Control Elements

    SMA Solar Technology AG Control Elements 8 Control Elements Before commissioning the island grid system, familiarize yourself with the operation of the device. The Sunny Island is operated with the control panel on the enclosure only under the standard setup (for default values see chapter 17.2 "Adjustable System Parameters"...
  • Page 71 SMA Solar Technology AG Control Elements Depending on the message, the corresponding LED glows red, green, orange, or not at all. The following table describes the meanings of the color signals from the inverter LED: Operating mode of the Green...

  • Page 72: Sunny Remote Control 1

    SMA Solar Technology AG Control Elements 8.2 Sunny Remote Control 1 Information The Sunny Island is controlled via the external display (Sunny Remote Control 1). You can navigate the Sunny Island's menus with the external display (Sunny Remote Control 1).

  • Page 73: Display Messages

    SMA Solar Technology AG Control Elements 8.2.1 Display Messages The Sunny Remote Control 1 display consists of four lines with 20 characters each. You can find details on the symbols shown in chapter 10.2.1 "Standard View 1" (Page 92). Row:...

  • Page 74: Rotating Pushbutton

    SMA Solar Technology AG Control Elements 8.2.3 Rotating Pushbutton The Sunny Remote Control 1 is controlled via a rotating pushbutton. This pushbutton allows simple navigation of the Sunny Island menus (see chapter 10.2 "Navigation Area" (Page 89)). The rotating pushbutton can be pushed or turned.

  • Page 75: First) Commissioning

    Always use the MMC/SD card for saving data and events. This way, in case of a failure, the SMA Solar Technology AG can help you quickly. The Quick Configuration Guide (QCG) allows you to quickly install and commission your island grid system.

  • Page 76: Starting The Quick Configuration Guide (Qcg)

    SMA Solar Technology AG (First) Commissioning 9.2 Starting the Quick Configuration Guide (QCG) Information The QCG sets up all parameters values automatically. Reasonable operation is possible this way, with little manipulation. The QCG is automatically activated when the device is started for the first time. Please continue reading under point 7, otherwise follow this list.
  • Page 77 SMA Solar Technology AG (First) Commissioning When the bar on the display disappears and the Sunny Remote control emits a tone signal: Let go of the Sunny Remote Control pushbutton. You are now in the Quick Configuration Guide 001#01 ¿...
  • Page 78 SMA Solar Technology AG (First) Commissioning The following parameters must be set when "New Battery" is selected: (default setting shown in bold) Battery type: 002#05 BatTyp (VRLA, FLA, NiCd) Battery voltage: 002#06 BatVtgLst (22 V, 24 V in 2 V increments for FLA and VRLA, 21.6 V, 22.8 V, 24 V in 1.2 V increments for NiCd), 24 V Sunny Island 2224, 12 V Sunny...
  • Page 79 SMA Solar Technology AG (First) Commissioning Overview of System Configurations: The system configuration is described extensively in chapter 7.7 "Configuring a System with Several Sunny Islands" (Page 68). Displayed Text Meaning 1phase 1SI single-phase system, 1 Sunny Island 1phase 2SI...
  • Page 80 SMA Solar Technology AG (First) Commissioning If there is an error message If the device displays an error message, this error must be fixed before the device can be put into operation. Use the information in section 18 "Troubleshooting/Problem Solving"...

  • Page 81: Commissioning The Battery Current Sensor

    SMA Solar Technology AG (First) Commissioning 9.3 Commissioning the Battery Current Sensor When connecting a battery current sensor to the Sunny Island the internal offset must be calibrated. Proceed as follows: Place the Sunny Island in standby mode (see section 10.1.2 "Stopping" (Page 85)).
  • Page 82 SMA Solar Technology AG (First) Commissioning Subsequently, check the offset error "120.06 TotBatCur" should be (close to) zero Switch off the Sunny Island and remove all voltages (see chapter 10.1 "Switching On and Off" (Page 83)). 10. Connect the "BatCur+" wire to the battery current sensor's terminal clamp 2 again.

  • Page 83: Operating The Sunny Island

    SMA Solar Technology AG Operating the Sunny Island 10 Operating the Sunny Island 10.1 Switching On and Off 10.1.1 Switching On/Starting WARNING! Danger due to incorrect wiring of the island grid system Only qualified electricians should carry out the first commissioning. Check the island grid system beforehand for •...
  • Page 84 SMA Solar Technology AG Operating the Sunny Island Start the island grid system with the Sunny Remote Control 1 Insert the NH fuse in the BatFuse or close the BatFuse's DC disconnector. Press the DC start key on the Sunny Island The Sunny Island is switched on The Sunny Island initiates the startup phase.

  • Page 85: Stopping

    SMA Solar Technology AG Operating the Sunny Island Press and hold the pushbutton on the Sunny Remote Control 1. The Sunny Remote Control 1 emits a tone. The Sunny Island starts. 10. Let go of the pushbutton. The Sunny Island is in operation.
  • Page 86 SMA Solar Technology AG Operating the Sunny Island Stopping the system with Sunny Remote Control 1 Set the Sunny Island to standby using the external display. Proceed as follows: Press and hold the pushbutton on the Sunny Hold to stop...

  • Page 87: Switching Off

    SMA Solar Technology AG Operating the Sunny Island 10.1.3 Switching Off Switch off the Sunny Island in the following way: Disconnect all loads. Place the in standby mode (see section 10.1.2 "Stopping" (Page 85)). Press the DC stop key on the Sunny Island...

  • Page 88: Restarting The System After Automatic Shutdown

    SMA Solar Technology AG Operating the Sunny Island 10.1.5 Restarting the System after Automatic Shutdown NOTICE! System shutdown due to, for example, wrong device settings • Before and after recommissioning, inspect the whole island grid system for errors Wrong wiring?

  • Page 89: Navigation Area

    SMA Solar Technology AG Operating the Sunny Island If Sunny Island begins to operate in battery-preservation mode, disconnect the loads! If the Sunny Island enters the battery-preservation mode immediately after restarting see chapter 12.5 "Battery Preservation Mode" (Page 127). •...
  • Page 90 SMA Solar Technology AG Operating the Sunny Island Overview of the menu area: Main menu Submenu 1 Submenu 2 SI2012_2224-TEN082311 Technical Description...
  • Page 91 SMA Solar Technology AG Operating the Sunny Island 100# Meters (display values): In this main menu you can find the displayed values of the following components of the island grid system: • 110# Meter Inverter - Sunny Island • 120# Meter Battery •...

  • Page 92: Standard View 1

    SMA Solar Technology AG Operating the Sunny Island 10.2.1 Standard View 1 The standard view 1 (home screen) shows the operating states of the Sunny Island: Row: Uhrzeit in [hh:mm:ss] Row: grid or generator power in kW ("TotExtPwrAt") ggf. Pfeil in Energieflussrichtung (z. B. Š = Einspeiseleistung PV-Generator) Load power in kW ("TotExtPwrAt"...

  • Page 93: Standard View 2

    SMA Solar Technology AG Operating the Sunny Island 10.2.2 Standard View 2 The standard view 2 shows the operating states of the Sunny Island: • Battery charge power • Output power • Power from the grid/generator as well as various information items on the status line.
  • Page 94 SMA Solar Technology AG Operating the Sunny Island Row 1 The bar shows the charge state of the battery [¿¿¿¿¿ in [%] The value of the charge state is also shown digitally on the right. Row 2 The bar shows the magnitude of the totall ‡[¿¿¿¿...
  • Page 95 SMA Solar Technology AG Operating the Sunny Island 2. Connection to the public grid/a generator: • = the Sunny Island monitors the grid limits (grid operation) • x = the Sunny Island monitors the generator limits (operation with generator) 3. MMC/SD card (memory card) in the Sunny Remote Control 1: •...
  • Page 96 SMA Solar Technology AG Operating the Sunny Island The display changes The generator status and the reason for its deployment are shown (alternating) under "Generator-Status" in the display. • If, for example, the display changes every 3 seconds from "*" to "B", this means that the generator voltage and frequency lie within the specified limits and that the generator was requested as a result of the battery charge level.

  • Page 97: Select Menu

    SMA Solar Technology AG Operating the Sunny Island 10.2.3 Select menu You can navigate the Sunny Island's menus with the external display's (Sunny Remote Control 1) pushbutton. • By pressing the pushbutton, you reach a submenu level. • By turning the pushbutton you can move within this menu level.
  • Page 98 SMA Solar Technology AG Operating the Sunny Island Depress the pushbutton. 111# Meter Total The arrow jumps one menu level further. 112# Meter Device Now you have three possibilities: [<-- back] Depress the pushbutton. The arrow jumps one level further. You can see [<-- home]...

  • Page 99: Selecting Parameters

    SMA Solar Technology AG Operating the Sunny Island 10.2.4 Selecting Parameters Parameters are shown on the display as follows: 210#01 ¿ • To the left are the menu number and the InvVtgNom parameter number. To the right, a bar 230.0 shows the status of the value queried at present.

  • Page 100: Selecting Warnings And Faults

    SMA Solar Technology AG Operating the Sunny Island Skip back to the previous menu level: 430# Event • Turn the pushbutton completely to the left [<-- back] or right until "back" is shown on the display. • Press the pushbutton 10.2.6 Selecting Warnings and Faults...

  • Page 101: Making Adjustments

    SMA Solar Technology AG Operating the Sunny Island 10.3 Making adjustments 10.3.1 Adjusting parameters With the pushbutton on the Sunny Remote 222#02 ¿ Control 1 you can move through a menu and AptTmBoost select the desired parameter. When the parameter appears on the display, you can read [Min] the current value.

  • Page 102: Setting The Installer Password

    Do not provide the following information for entering the installer password to unauthorized persons. Illegal provision of this information to other persons will lead to invalidation of all guarantees by the SMA Solar Technology AG. Entering the password The Sunny Island allows you to enter the password not only in standby, but also during operation.
  • Page 103 SMA Solar Technology AG Operating the Sunny Island he password is dependent on the operating hours counter. In the installer level there are extended access privileges to all necessary parameters. Password = Sum of the digits of the number of operating hours.
  • Page 104 SMA Solar Technology AG Operating the Sunny Island Confirm the password. Press the PW:21 Level[1] pushbutton. OnTmh The password is confirmed. 123456 Operating level [1] = installer level has been set. Leave menu. 260# Set Password 250# Set System 260# Set Password [<-- back]...

  • Page 105: Accessing Parameters Directly

    SMA Solar Technology AG Operating the Sunny Island 10.3.3 Accessing Parameters Directly Under the menu "600# Direct Access" it is possible to directly access selected parameters via their name or number. Via the Select Name submenu, you have direct access to the following functions: •...
  • Page 106 SMA Solar Technology AG Operating the Sunny Island Bat1 (Battery Values 1) BatSocErr: Estimated error of BatSoc: present battery of SOC charge state Name of the Meter Compact 260# Set Password 75.2% 5.6% BatTmp: Battery temperature TotBatCur: Battery current 8.6A 20.3degC...

  • Page 107: Saving Data Onto A Mmc/Sd Card

    SMA Solar Technology AG Operating the Sunny Island ExtTot (Total AC Values of External Source) ExtFrq: Frequency of external ExtVtg: Voltage of external source source Name of the Meter Compact 260# Set Password 230V 51.1Hz ExtPwrRt: Reactive power o ExtPwrAt: Active power of -1.5kW...
  • Page 108 SMA Solar Technology AG Operating the Sunny Island Memory card types The SMA Solar Technology AG recommends using MMC/SD cards manufactured by Transcend. If you use a memory card by another manufacturer, check to see that it is a FAT-16- formatted card.
  • Page 109 SMA Solar Technology AG Operating the Sunny Island File name Meaning failhism.log (failhisN.log for SlaveN) Failure history of the device, saved by means of parameter "550.03 CardFunc", option StoFailHis si030607.evt Event/failure history for the day (format: ddmmyy) si030607.log Data recording for the day (format: ddmmyy) sipar1.lst...
  • Page 110 Always use the MMC/SD card for saving data and events. This way, in case of a failure, the SMA Solar Technology AG can help you quickly. The data saved on the MMC/SD card can be processed using common table calculation programs.

  • Page 111: Inserting The Card

    SMA Solar Technology AG Operating the Sunny Island 10.4.1 Inserting the Card Insert the MMC/SD card with the clipped corner toward the top (the sticker faces forward) into the external display's card slot. After inserting the MMC/SD card, its removal is...

  • Page 112: Removing The Card

    SMA Solar Technology AG Operating the Sunny Island 10.4.2 Removing the Card To ensure that all log data is saved upon deactivation, write all data not yet saved from the buffer to the MMC/SD card by using the parameter "550.03 CardFunc" with the option "ForceWrite".

  • Page 113: Writing Log Data

    SMA Solar Technology AG Operating the Sunny Island 10.4.4 Writing Log Data Using the "550.04 DatLogEna" parameter, you can activate the writing of log data onto your MMC/SD card (activated by default). If the Sunny Remote Control 1 is writing data onto the Do not remove MMC/SD card, removing the card is forbidden.

  • Page 114: Updating Firmware

    SMA Solar Technology AG Operating the Sunny Island Meaning Display The memory capacity of your MMC/SD is full. 312#07 CardStt Out Of Space The MMC/SD card has an invalid file format. 312#07 CardStt Bad File Sys The MMC/SD card is incompatible.
  • Page 115 SMA Solar Technology AG Operating the Sunny Island Please note: • Do not switch off the device during the firmware update! • Do not remove the MMC/SD card during the firmware update! • Observe notices regarding the update files. Updating the Firmware Set the Sunny Island to standby.
  • Page 116 SMA Solar Technology AG Operating the Sunny Island Parameter settings • Individual parameters and settings are retained during a firmware update. • When updating, new parameters in the updated firmware are saved with the factory default values automatically. SI2012_2224-TEN082311 Technical Description...

  • Page 117: Additional Functions

    SMA Solar Technology AG Additional Functions 11 Additional Functions 11.1 Load shedding The Sunny Island can automatically switch off loads to protect the batteries from deep discharge. To do this, an external (AC or DC) power contactor must be installed between the Sunny Island and the loads (see also chapter 19.3 "Accessories (Optional)"...

  • Page 118: Sleep Mode

    SMA Solar Technology AG Additional Functions Define the time intervals t1 and t2: • Starting time t1: with the parameter "242.05 Lod1Tm1Str", set the start time for t1 (and with it the end of t2). • Starting time t2: with the parameter "242.06 Lod1Tm2Str", set the start time for t2 (and with it the ent of t1).

  • Page 119: Time-Controlled Operation

    SMA Solar Technology AG Additional Functions 11.4 Time-controlled Operation The Sunny Island can be operated in a time-controlled fashion using a timer function (like a clock timer), supplying power at a planned point in time. To do this, this function must be activated by using the "510.02 InvTmOpEna" parameter. With the "510.03 InvTmOpStrDt"...

  • Page 120: Battery Management

    SMA Solar Technology AG Battery management 12 Battery management The battery management of the Sunny Island supports the following three battery types ("221.01 BatTyp" parameter): - Flooded Lead Acid: closed lead acid batteries with liquid electrolyte in all standard designs available on the market (grid plate, tubular plate, small, large, etc.)

  • Page 121: Start Options

    SMA Solar Technology AG Battery management NOTICE! Possible damage to the battery as a result of faulty temperature measurement! If the battery temperature sensor is defective or missing, the Sunny Island continues to run, assuming a battery temperature of 40 °C. This can result in insufficient charging of the battery in the long run.

  • Page 122: Charge Control

    SMA Solar Technology AG Battery management The battery's state of health (display value "320.01 Soh") is a measurement of the present useable capacity expressed as a percentage relative to the nominal capacity. 100 % means that the entire nominal capacity can be used. 50 % means that only half of the original nominal battery capacity can be used.
  • Page 123 SMA Solar Technology AG Battery management In this phase, the battery voltage is maintained at a constant level, resulting in a continually decreasing battery current. The Sunny Island remains in this phase for a defined period of time ("222.02 — 222.03", AptTmBoost or AptTmFul or AptTmEqu" parameters). For this charging phase, the Sunny Island automatically selects one of three possible charging methods (boost, full, equalizing) which are described in detail in sections 12.4.1 "Boost Charge"...

  • Page 124: Boost Charge

    SMA Solar Technology AG Battery management Charging voltage change The charging voltage does not rapidly change, but is slowly adjusted to the new nominal value by approx. 0.5mV/cell*s as the constant voltage phase changes to the float charge. This also takes place if the nominal value is changed manually.
  • Page 125 SMA Solar Technology AG Battery management Information If the Sunny Island changes to full charge after a boost charge has been running for a specific time, this boost charge time is fully credited toward the full charge. Information If more than 1 % of the battery's nominal capacity is discharged during a full charge, 50 % of the time elapsed is credited towards the constant voltage phase.

  • Page 126: Equalization Charge

    SMA Solar Technology AG Battery management 12.4.3 Equalization Charge A battery bank consists of many individual battery cells connected in series which all behave slightly differently. Over time, this results in different charge levels in the individual cells. This can lead to premature failure, initially of individual cells, and finally to failure of the entire bank.

  • Page 127: Manual Equalization Charge

    SMA Solar Technology AG Battery management 12.4.4 Manual Equalization Charge The parameter "520.01 ManChrgSel" activates the manual equalization charge on the Sunny Island. If a generator is connected to the system, it will be automatically started, and stopped again after the equalization charge is completed.
  • Page 128 SMA Solar Technology AG Battery management Level 2: The second level of the battery preservation mode ensures that the Sunny Island is started regularly every two hours only in the time period during which energy supply is expected, and that it attempts to charge the battery from the AC side.

  • Page 129: Battery Diagnostics

    SMA Solar Technology AG Battery management The battery preservation mode can be quit by manually starting the Sunny Island. If a charging current is detected within 5 minutes (see above) the Sunny Island remains in operation; otherwise, it is disconnected again.

  • Page 130: Connecting External Sources

    SMA Solar Technology AG Connecting External Sources 13 Connecting External Sources The Sunny Island supports the integration of external energy sources. A distinction is made between the integration of a generator and the integration of the public grid. Both the generator ans the public grid are integrated via the Sunny Island's AC2 connection. A single-phase or a three-phase connection is possible.

  • Page 131: Connecting Generator Connections In Parallel

    SMA Solar Technology AG Connecting External Sources 13.1.1 Connecting Generator Connections in Parallel In the case of Sunny Islands connected in parallel and which operate on the same phase, the internal transfer relay is activated simultaneously. It is thus possible to multiply the generator current and therefore to connect a larger generator or a higher grid current.
  • Page 132 SMA Solar Technology AG Connecting External Sources The following illustration shows the wiring for a generator that cannot be started remotely: Sunny Island Relay1 PE N L PE N L Island Grid Generator The generator must always be switched off manually too. The Sunny Island automatically switches to operation without generator.
  • Page 133 SMA Solar Technology AG Connecting External Sources After-run Autostart generators can have an internal after-run which is activated after the request has been disabled. This can extend the power down time accordingly. Information Some generator types connect voltage to the output only after the internal warm-up phase has been completed.
  • Page 134 Connecting External Sources GenMan If a GenMan (generator manager) (SMA order number: "SI-GenMan") is integrated into the system, it assumes direct control of the generator. It is connected between the Sunny Island and the generator. The GenMan assumes control of the generator (warm up time, cooling off time and autostart).

  • Page 135: Generator Operation

    SMA Solar Technology AG Connecting External Sources The generator is disconnected by the Sunny Island after the GENRDY signal has been withdrawn by the GenMan. Caution! A manual start directly at the generator is not possible (see GenMan manual). Unforseeable operational states could result (see the GenMan manual).
  • Page 136 SMA Solar Technology AG Connecting External Sources Generator Interface 233.07 GnSrtMod Manual; Start at the Generator Manual generator start "Generator is running" detected, beginning of warm-up phase Internal generator request is ignored GnReq Warm-up phase is completed, generator is connected...

  • Page 137: Automatic Generator Operation

    SMA Solar Technology AG Connecting External Sources Generator Interface 233.07 GnSrtMod GenMan; Start at the Generator Generator start at GenMan Beginning of GenMan generator warm-up phase Generator warm-up time GenMan sends ready for connection signal GnReq Generator is connected via Sunny Island...
  • Page 138 SMA Solar Technology AG Connecting External Sources Information If GnTm1Str = GnTm2Str, only t1 is active! The time intervals t1 and t2 are assigned charge states for start-up and stop with the "234.03 GnSocTm1Str", "234.04 GnSocTm1Stp", "234.05 GnSocTm2Str" and "234.06 GnSocTm2Stp"...
  • Page 139 SMA Solar Technology AG Connecting External Sources Information If the float charging process (see section 12.4 "Charge Control" (Page 122)) is activated before the cutoff limit (GnSocTm1Stp or GnSocTm2Stp) is reached, the generator request is disabled again. If a full or equalization charge is active, the generator is only stopped after this charge is completed and not when "234.04 GnSocTm1Stp"...
  • Page 140 SMA Solar Technology AG Connecting External Sources The following sequence charts provide an overview of the start/stop behavior of the Sunny Island in the case of automatic generator operation: Generator Interface 233.07 GnSrtMod Manual; Generator Request Via Sunny Island Generator is requested via Sunny Island...

  • Page 141: Limits And Power Adjustment

    SMA Solar Technology AG Connecting External Sources Generator Interface 233.07 GnSrtMod GenMan; Generator Request Via Sunny Island Generator start by Sunny Island using GenMan Generator start by GenMan Beginning of GenMan warm-up time GnReq GenMan warm-up time has expired, connection...
  • Page 142 SMA Solar Technology AG Connecting External Sources Information If the master device disconnects the generator, all slave devices are disconnected as well. Information If a slave device is disconnected from a generator (and the master continues to be connected to the generator), the slave device can reconnect once the voltage and frequency are within the valid range again.

  • Page 143: Run Times

    SMA Solar Technology AG Connecting External Sources 13.1.7 Run Times If the generator is started (or the Sunny Island detects an external generator start), the warm-up phase starts. If, during this time, the voltage or frequency detected is not within the permissible range, the warm-up phase begins again.

  • Page 144: Operation Together With Sunny Boys

    SMA Solar Technology AG Connecting External Sources Information The recording of autostarts is only reset after the generator has been successfully connected and the minimum run time has expired or when the locked error state (FailLock) is disabled. Information The error state and the locked error state can be cancelled by confirming the generator fault ("540.02 GnAck"...

  • Page 145: Stopping The Generator

    SMA Solar Technology AG Connecting External Sources In order to prevent this during such conditions, the stand-alone grid frequency is temporarily increased ("231.04 AcSrcFrqDel" parameter), in line with the synchronization, until the AC feed-in generators (Sunny Boys) are disconnected from the stand-alone grid as a result of the grid limits being exceeded.

  • Page 146: Failures

    SMA Solar Technology AG Connecting External Sources 13.1.10 Failures Reverse Power If the reverse power ("233.13 GnRvPwr" parameter) set for the "233.14 GnRvTm" time is exceeded, the generator is disconnected and stopped. The power down time (Cool, parameter "233.10 GnCoolTm") is skipped and the system transitions into the minimum stop time (Lock). After reverse power, the connection is blocked for at least for the period "231.02 ExtLkTm"...

  • Page 147: Conditions

    SMA Solar Technology AG Connecting External Sources 13.2.1 Conditions In order to operate on the grid, very strict limits (for voltage and frequency) must generally be maintained. This strict limits are not sensible for generator operation. The limits are therefore set separately for grid operation and the generator limits are not used.

  • Page 148: Grid Operation

    SMA Solar Technology AG Connecting External Sources 13.2.4 Grid Operation In grid operation, the stand-alone grid and main power grid are connected. The Sunny Island is connected along with the stand-alone grid to the main power grid. Therefore, the voltage and frequency in both grids are identical.

  • Page 149: Grid Failure

    SMA Solar Technology AG Connecting External Sources 13.2.5 Grid Failure A grid fault is characterized by the voltage or frequency being outside of the permissible limits (see section 13.2.3 "Grid Reconnection" (Page 147)) or the main power grid being disconnected. In this case, the time limits are relevant: Smaller deviations are permitted for longer than large deviations (see section 13.2.1 "Conditions"...

  • Page 150: Operation Together With Sunny Boys

    SMA Solar Technology AG Connecting External Sources 13.2.8 Operation Together With Sunny Boys Since electricity is fed into the grid through the relay of the Sunny Island, it must be prevented from overloading. For this reason, reverse power monitoring is used which, if required, disconnects the main power grid if the reverse power limit is exceeded or an excessive load is applied to the relay.

  • Page 151: Generator And Grid

    SMA Solar Technology AG Connecting External Sources 13.3 Generator and Grid In addition to the public grid, a generator can also be integrated into an island grid system as a secondary protective measure. This is particularly useful in case of long-term grid failures, if after some time the battery size no longer suffices either, to bridge the failure.

  • Page 152: Relay

    SMA Solar Technology AG Relay 14 Relay The Sunny Island offers you several options for the control of internal and external processes. For this purpose, there are two relays integrated into the device to which you can assign functions using the "241.01 Rly1Op"...
  • Page 153 SMA Solar Technology AG Relay Relay configuration You can only assign one function to each relay. Operating principles of the relays The relays are changeover contacts. They can be used as normally closed or as normally open contacts. The relay functions are listed as NO contact functions, in other words, the contact is closed if the relay is activated by selecting the function.

  • Page 154: Sunny Boy In The Island Grid System

    15 Sunny Boy in the Island Grid System The following section provides information for configuring the Sunny Boy inverter in island grid systems. The Sunny Island works with various inverters fromt the SMA Solar Technology AG. 15.1 Setting the Stand-alone Grid Parameters...
  • Page 155 SMA Solar Technology AG Sunny Boy in the Island Grid System Establish communication with the Sunny Boy. Go to the parameter settings. Set the parameter "Default" to "Off-Grid" (stand-alone grid). The "Off-Grid" parameter setting automatically sets the following Sunny Boy parameters to the...

  • Page 156: Frequency Shift Power Control (Fspc)

    Settings in Older SMA Inverters It may happen that older SMA inverters cannot yet be set to "Offgrid" (stand-alone grid) via the "Default" parameter. In this case, the values 1 - 6 in the table must be set individually.
  • Page 157 SMA Solar Technology AG Sunny Boy in the Island Grid System To prevent the excess energy from overcharging the batteries, the Sunny Island recognizes this situation and changes the frequency of the AC output. This frequency adjustment is analyzed by the Sunny Boy.

  • Page 158: Maintenance And Care

    SMA Solar Technology AG Maintenance and Care 16 Maintenance and Care 16.1 Enclosure Check to see that every device housing in the island grid system is mechanically sound. If damage (e.g. cracks, holes, missing covers) endangers the operating safety, the Sunny Island must be deactivated immediately.

  • Page 159: Battery

    Dispose of the devices at the end of their service life in accordance with the disposal regulations for electronic scrap which apply at the installation site at that time. Alternatively, send them back to the SMA Solar Technology AG with shipping paid by sender and labeled "FOR DISPOSAL" (chapter 21 "Contact" (Page 201)).

  • Page 160: Parameter List Overview

    SMA Solar Technology AG Parameter List Overview 17 Parameter List Overview Overview of the menu area: Main menu Submenu 1 Submenu 2 SI2012_2224-TEN082311 Technical Description...
  • Page 161 SMA Solar Technology AG Parameter List Overview Only parameters in the menu branches "200-Settings" and "500-Operation" can be changed. The other values are only shown on the display. The cells with a grey background in the following tables show all menu items that can only be changed after entering the installer password.

  • Page 162: Display Values

    SMA Solar Technology AG Parameter List Overview 17.1 Display Values 110# Meter Inverter Menu Parame Parameter Name Range/Unit Description ter Nr. 111# Meter Total TotInvPwrAt Total inverter power (single-phase, parallel, 3-phase) TotInvCur Total inverter current (single-phase, parallel, 3-phase) TotInvPwrRt kVAr...
  • Page 163 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Description ter Nr. 114# Meter Slave 2 InvOpSttSlv2 Operating mode of slave2: Init = waiting for request (ready) Standby = standby = change standby −> operation Startup RlyTest...
  • Page 164 SMA Solar Technology AG Parameter List Overview 130# Meter External Menu Parame Parameter Name Range/Unit Description ter.Nr. 131# Meter Total TotExtPwrAt Total effective power of external sources TotExtCur Total current of external sources TotExtPwrRt kVAr Total reactive power of external sources...
  • Page 165 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Description ter.Nr. ExtPwrRt kVAr reactive power of external source 135 # Meter Slave 1 ExtPwrAtSlv1 active power of external source at slave1 ExtVtgSlv1 voltage of external source at slave1...

  • Page 166: Adjustable System Parameters

    SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Description ter.Nr. 144# SIC40 3 Sic3PvPwr PV power of third SIC40 Sic3PvVtg PV voltage of third SIC40 Sic3BatVtg Battery voltage of third SIC40 Sic3BatCur Battery current of third SIC40 Sic3HsTmp °C...
  • Page 167 SMA Solar Technology AG Parameter List Overview Changes to parameters The cells with a grey background in the following tables show all menu items that can only be changed after entering the installer password. All parameters can be set using a connected PC/laptop with the Sunny Data Control software, a Sunny WebBox or a Sunny Boy Control (see section 7.5 "Communication"...
  • Page 168 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value AptTmBoost Absorption time at normal charge 120 = VRLA 90 = FLA 300 = NiCd depending on the setting in QCG AptTmFul Absorption time at full charge...
  • Page 169 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value AutoEquChrgEna Disable Enable activates automatic equalization charge Enable 223# Bat Protection BatPro1TmStr hhmmss 220000 time for starting battery preservation mode level 1 BatPro1TmStp hhmmss...
  • Page 170 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value ExtSrc Grid Grid Grid Operation 232# Grid Control GdVtgMin Minimum grid voltage GdVtgMax 259.5 Maximum grid voltage GdCurNom Nominal grid current GdFrqNom Nominal frequency GdFrqMin 47.65...
  • Page 171 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value GnStrMod Manual Automatic Generator interface start Automatic start GenMan GnOpTmMin Minimum generator operating time GnStpTmMin Minimum generator stop time GnCoolTm Cooling time for Generator...
  • Page 172 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value GnPwrStr Generator request starting capacity GnPwrStp Generator request interrupting capacity GnPwrAvgTm average time for power-related generator start 240# Set Relay Menu Parame Parameter Name...
  • Page 173 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value Lod1Tm1Str hhmmss Loadshed 1 time1 (begin time1, end time2) Lod1Tm2Str hhmmss Loadshed 1 time2 (begin time2, end time1) Lod2SocTm1Str SOC limit for load shedding 2 start for t1...
  • Page 174 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value 244# Relay Slave1 Rly1OpSlv1 function of relay 1 on slave1 = switched off = switched on AutoGn = automatic generator connection AutoLodExt = automatic disconnection of loads,...
  • Page 175 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value Rly2OpSlv1 function of relay 2 on slave1 = switched off = switched on AutoGn = automatic generator connection AutoLodExt = automatic disconnection of loads,...
  • Page 176 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value 245# Relay Slave2 Rly1OpSlv2 function of relay 1 on slave2 = switched off = switched on AutoGn = automatic generator connection AutoLodExt = automatic disconnection of loads,...
  • Page 177 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value Rly2OpSlv2 function of relay 2 on slave2 = switched off = switched on AutoGn = automatic generator connection AutoLodExt = automatic disconnection of loads,...

  • Page 178: Diagnosis

    SMA Solar Technology AG Parameter List Overview 250# Set System Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value AutoStr autostart (0=autostart deactivated) (Stby) yyyymmdd Date hhmmss Time ComBaud 1200 1200 baud rate interface 4800 9600 19200 38400 57600 115000...
  • Page 179 SMA Solar Technology AG Parameter List Overview Menu Para- Parameter Name Range/Unit Description meter CardStt MMC/SD card status message: = no Sunny Island Operational = in operation Mount = card initializing OutOfSpace = insufficient memory capacity (on card or in main...
  • Page 180 Ah/100Ah counter for battery discharging ampere hours since last equalization charge BatVtgPk Max. battery voltage applied (SMA) BatCurPk Max.battery current in charging direction (SMA) BatCurPkOut Max battery current in discharging direction (SMA) SocHgm100 frequency scale of state of charge 100 % > SOC >= 90%...
  • Page 181 SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Description ter Nr. SocHgm70 frequency scale of state of charge 70 % > SOC >= 60% SocHgm60 frequency scale of state of charge 60 % > SOC >= 50%...

  • Page 182: Events, Warnings And Failures (History)

    SMA Solar Technology AG Parameter List Overview Menu Parame Parameter Name Range/Unit Description ter Nr. GnOpTmh Counter for generator operating hours GnStrCnt Number of generator starts 17.4 Events, Warnings and Failures (History) Events and failure messages [410# (Fail Current), 420# (Fail History) and 430# (Event History)] are described in section 18.4 "Display of Failures and Events"...
  • Page 183 SMA Solar Technology AG Parameter List Overview 540# Oper Generator Menu Parame Parameter Name Range/Unit Default Description ter.Nr. value GnManStr Auto Auto Manual generator start Stop Start Run1h ManEquChrg GnAck Ackn Generator failure acknowledgment 550# Oper SD-Card Menu Parame Name...

  • Page 184: Troubleshooting/Problem Solving

    SMA Solar Technology AG Troubleshooting/Problem Solving 18 Troubleshooting/Problem Solving In general the Sunny Island distinguishes between events and failures. These messages are shown on the Sunny Remote Control 1 display. Events describe state changes or transient states (e.g. generator connection).

  • Page 185: Events

    SMA Solar Technology AG Troubleshooting/Problem Solving The letter at the beginning corresponds to the message. There are three categories of messages: F = Fault/Error W = Warning E = Event In the second position there is a digit between 1 and 8 which describes the area to which the...
  • Page 186 SMA Solar Technology AG Troubleshooting/Problem Solving Display Description number E119 manual start (transition from standby to operation) E120 manual stop (change from operation to standby) E121 Energy saving mode 1 Category BAT E202 (partial) reset of BMS due to new battery (QCG NewBat)
  • Page 187 SMA Solar Technology AG Troubleshooting/Problem Solving Display Description number E621 relay 2 on slave 2 open E622 relay 2 on slave 2 closed E625 digital input OFF (low) E626 digital input ON (high) E627 Digital Input Slave 1 to OFF (low) (not active)

  • Page 188: Error Categories

    SMA Solar Technology AG Troubleshooting/Problem Solving 18.6 Error Categories The Sunny Island distinguishes between five different levels of failures, each requiring different user interaction: Level Classification Display Meaning Warning Warning Warning, device continues to run. There is an explicit information on the Home Screen that a warning was recorded.
  • Page 189 SMA Solar Technology AG Troubleshooting/Problem Solving Display Level Description number W210 Warning Battery overvoltage (dependent upon charge voltage setpoint value) W211 insufficient battery temperature warning W212 high battery temperature warning Category EXT W309 relay protection W310 relay protection on slave 1...
  • Page 190 SMA Solar Technology AG Troubleshooting/Problem Solving Display Level Description number Category SYS W702 internal restart F703 Time limit exceeded during internal processing F704 DSP invalid calibration F705 Watchdog DSP triggered F706 watchdog meter has expired (watchdog triggered several times in succession)
  • Page 191 SMA Solar Technology AG Troubleshooting/Problem Solving Display Level Description number W856 Device overheating at first SIC40 W857 No communication with first SIC40 for more than 24 h W861 Battery connection polarity reversed or short-circuit at second SIC40 W862 Battery excess voltage (>65 V) at second SIC40...

  • Page 192: Troubleshooting

    SMA Solar Technology AG Troubleshooting/Problem Solving 18.8 Troubleshooting Questions that may be raised in practice are answered below: Why does the Sunny Island not connect to the running generator? • Check the generator fuses. • Has the power allowed to be fed back into the generator during the permissible time been exceeded ("233.14 GnRvTm"...
  • Page 193 SMA Solar Technology AG Troubleshooting/Problem Solving What happens if battery cell becomes useless? • Remove the unusable cell from your battery bank. Start the Sunny Island and change the battery voltage in the QCG under "New Battery". What can I do if the QCG does not start? •...
  • Page 194 SMA Solar Technology AG Troubleshooting/Problem Solving What happens if you insert a non-FAT16 card? • The Sunny Island displays "Incomp". Why doesn't the generator or grid reconnect, although the voltage/frequency lie within the limits for disconnection? • The connects with a so-called hysteresis, i.e., the connection value is slightly above the disconnection value.

  • Page 195: Optional Devices

    19 Optional Devices 19.1 External DC fuse WARNING! The Sunny Island 2012 / 2224 has no internal DC fuse. Install an external DC fuse between the Sunny Island and the battery (see chapter 7.2 "DC connection" (Page 43)). The SMA Solar Technology AG offers the following external DC fuses: BatFuse-A.01...

  • Page 196: Sma Products (Optional)

    Sunny Island. The software used to make settings in and read/analyze data from your Sunny Island can be downloaded for free from the website of the SMA Solar Technology AG at www.SMA.de (see section 21 "Contact" (Page 201)).

  • Page 197: Technical Data

    SMA Solar Technology AG Technical Data 20 Technical Data 20.1 Sunny Island 2012/2224 EC Declaration of Conformity You can download the CE Declaration of Conformity at www.SMA.de under "Certificates". SI 2012* SI 2224 Output Values Nominal AC voltage ( ) (adjustable)
  • Page 198 SMA Solar Technology AG Technical Data SI 2012* SI 2224 Charge control IUoU procedure with IUoU procedure with automatic full and automatic full and equalization charge equalization charge Battery type VRLA/FLA/NiCd VRLA/FLA/NiCd Efficiency/power consumption Max. efficiency 93.0 % 93.6 %...
  • Page 199 SMA Solar Technology AG Technical Data SI 2012* SI 2224 Load limits for multi-function relays 1 and 2: connection to ohmic loads AC1: 6.0 A at 250 V~ AC1: 6.0 A at 250 V~ connection to strongly inductive loads AC15: 1.2 A AC15: 1.2 A...

  • Page 200: Sunny Remote Control 1

    SMA Solar Technology AG Technical Data 20.2 Sunny Remote Control 1 Interfaces DC supply voltage 12 V (from the Sunny Island via communication cable) nominal current 200 mA Data archiving and display 128 MB MMC/SD card Communication RS422 Communication cable...

  • Page 201: Contact

    SMA Solar Technology AG Contact 21 Contact If you have technical problems with our products, contact the SMA Service Line. We require the following information in order to provide you with the necessary assistance: • Inverter type (Sunny Island 2012/2224, see name plate) •...

  • Page 202: Glossary

    In the Sunny Boy / Sunny Mini Central, this function is performed by the "SMA grid guard Version 2". In the case of the Sunny Backup 2200 and Sunny Backup 5000 it is integrated in the Automatic Switch Box.
  • Page 203 SMA Solar Technology AG Glossary Automatic Switch Box Switching unit which switches the Sunny Backup System between grid and off-grid operation. In grid operation, a PV plant in the Sunny Backup System is operated via an automatic disconnection device at its own feed-in counter. If the grid drops out it is switched to the stand-alone grid separated from the public grid.
  • Page 204 SMA Solar Technology AG Glossary Boost Charge Quick charge: allows the battery to be charged to a level of approx. 85 – 90 % as quickly and efficiently as possible. Bulk Phase I-Phase: the charging phase in which charging can be performed using the maximum charging current.
  • Page 205 SMA Solar Technology AG Glossary Derating A controlled reduction in performance, usually dependent on component temperatures. Compared with the (also common) practice of completely shutting down the device, the effect on the external grid is smaller with derating. Abbreviation for Digital Signal Processor. A DSP is a microprocessor chip especially developed for digital signal processing and control.
  • Page 206 SMA Solar Technology AG Glossary Flash EEPROM The abbreviation EEPROM stands for Electrically Erasable Programmable Read-Only Memory. Flash memories are digital storage devices (chips). The exact designation is "flash EEPROM". In contrast to "normal" EEPROM memories, in flash EEPROM it is not possible to delete individual bytes (the smallest addressable memory units).
  • Page 207 SMA Solar Technology AG Glossary Invert Mode See Inverter Operation. Inverter operation Operating mode of a battery inverter where it supplies the stand-alone grid from the battery energy. In this operating mode, the battery inverter is especially responsible for the control of frequency and voltage in the stand-alone grid.
  • Page 208 132 kHz modulated onto the AC cables, and data is transferred using FSK (Frequency Shift Keying) of this carrier signal. Details on the Powerline modem can be found in the technical description of the SMA-NLM among other places. Nominal Charge Throughput The charging throughput is the cumulative total discharge current over time, measured in ampere hours (Ah).
  • Page 209 SMA Solar Technology AG Glossary Piggy-Back (Board) A printed circuit board which is plugged into another board to increase performance or expand capabilities. A piggy-back board can also replace an individual chip. In this case, the chip is removed and the board is plugged into the empty socket.
  • Page 210 SMA Solar Technology AG Glossary State of Charge: the charge level of the battery, see Charge Level. If, for example, 25 Ah is taken from a 100-Ah battery, the charge level (SOC) is then 75 %. State of health: describes the relationship between the present capacity and the battery's nominal value, given as a percentage.
  • Page 211 The information contained in this document is the property of SMA Solar Technology AG. Publishing its content, either partially or in full, requires the written permission of SMA Solar Technology AG. Any internal company copying of the document for the purposes of evaluating the product or its correct implementation is allowed and does not require permission.
  • Page 212 SMA Solar Technology AG www.SMA.de Sonnenallee 1 34266 Niestetal, Germany Tel.: +49 561 9522 4000 Fax: +49 561 9522 4040 E-Mail: Vertrieb@SMA.de Freecall: 0800 SUNNYBOY Freecall: 0800 78669269...

This manual is also suitable for:

Sunny island 2224

Table of Contents
