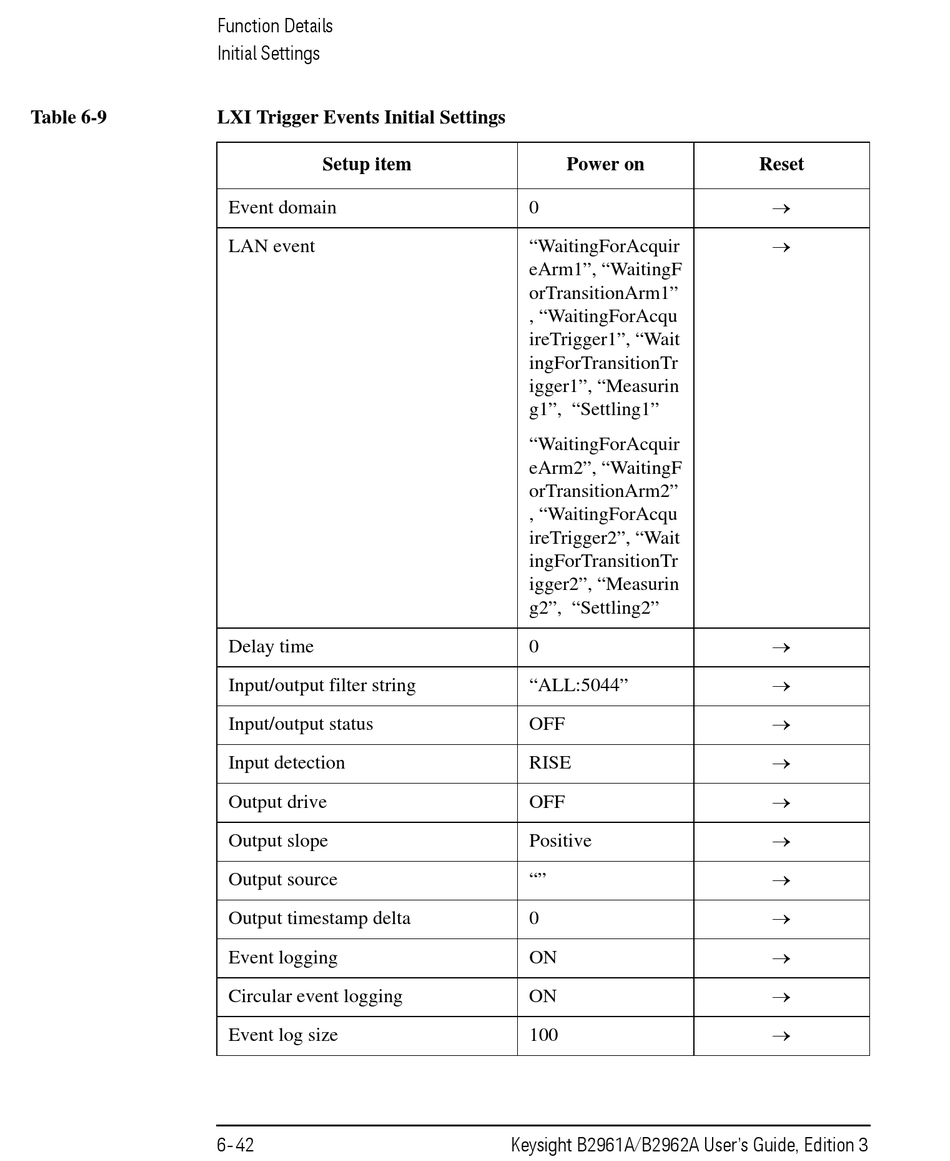

Table 6-9
Function Details
Initial Settings
LXI Trigger Events Initial Settings
Setup item
Event domain
LAN event
Delay time
Input/output filter string
Input/output status
Input detection
Output drive
Output slope
Output source
Output timestamp delta
Event logging
Circular event logging
Event log size
6-42
Power on
0
"WaitingForAcquir
eArm1", "WaitingF
orTransitionArm1"
, "WaitingForAcqu
ireTrigger1", "Wait
ingForTransitionTr
igger1", "Measurin
g1", "Settling1"
"WaitingForAcquir
eArm2", "WaitingF
orTransitionArm2"
, "WaitingForAcqu
ireTrigger2", "Wait
ingForTransitionTr
igger2", "Measurin
g2", "Settling2"
0
"ALL:5044"
OFF
RISE
OFF
Positive
""
0
ON
ON
100
Keysight B2961A/B2962A User's Guide, Edition 3
Reset













