Setup item
ARB triangle current rise time
ARB triangle current start level
ARB triangle current start time
ARB user defined current BOS points
ARB user defined current BOS signal
ARB user defined current BOS state
ARB user defined current BOS value
ARB user defined current level
ARB user defined current points
ARB user defined current step time
ARB exponential voltage end level
ARB exponential voltage start level
ARB exponential voltage start time
ARB exponential voltage time constant
ARB exponential voltage total time
ARB ramp voltage end level
ARB ramp voltage end time
ARB ramp voltage rise time
ARB ramp voltage start level
ARB ramp voltage start time
ARB sinusoidal voltage amplitude
ARB sinusoidal voltage frequency
ARB sinusoidal voltage offset
ARB sinusoidal voltage phase marker output
Keysight B2961A/B2962A User's Guide, Edition 3

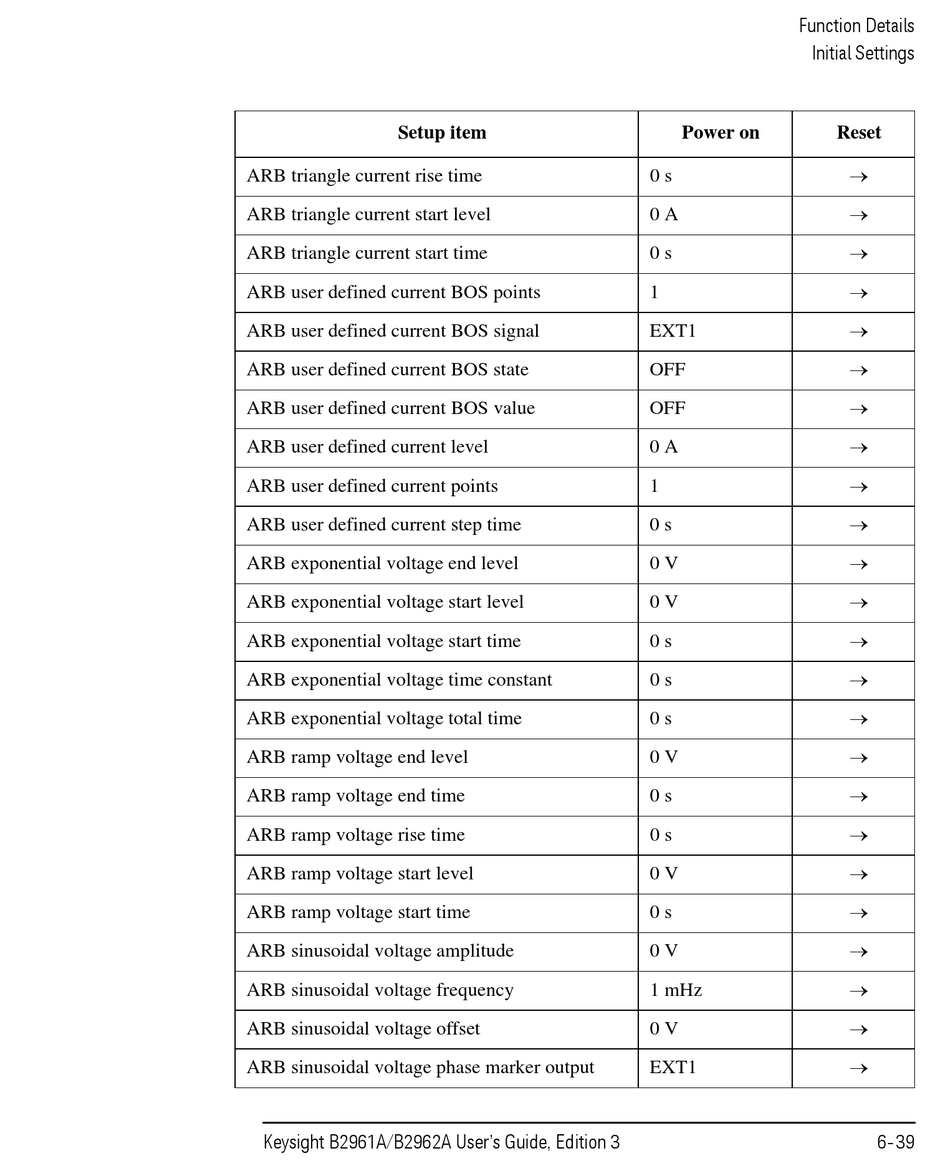

Function Details
Initial Settings
Power on
0 s
0 A
0 s
1
EXT1
OFF
OFF
0 A
1
0 s
0 V
0 V
0 s
0 s
0 s
0 V
0 s
0 s
0 V
0 s
0 V
1 mHz
0 V
EXT1
Reset
























6-39
