Front Panel Reference
I/O key group
Polarity
Output Trigger Type
Output Trigger Timing Timing of the output trigger, after action (arm, trigger,
Output Pulse Width
For more information about the trigger function, see
4-35.

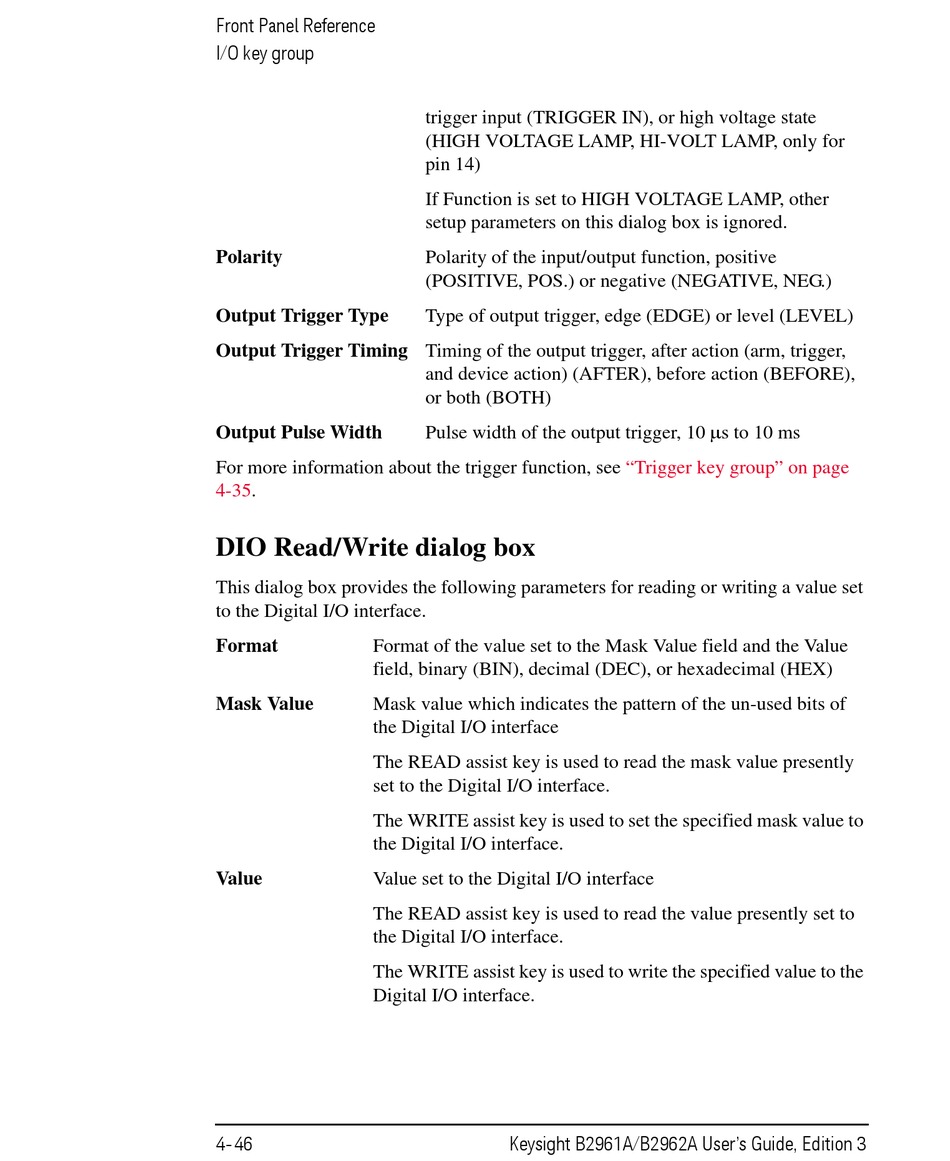

DIO Read/Write dialog box

This dialog box provides the following parameters for reading or writing a value set
to the Digital I/O interface.
Format Format of the value set to the Mask Value field and the Value
field, binary (BIN), decimal (DEC), or hexadecimal (HEX)
Mask Value Mask value which indicates the pattern of the un-used bits of
the Digital I/O interface
The READ assist key is used to read the mask value presently
set to the Digital I/O interface.
The WRITE assist key is used to set the specified mask value to
the Digital I/O interface.
Value Value set to the Digital I/O interface
The READ assist key is used to read the value presently set to
the Digital I/O interface.
The WRITE assist key is used to write the specified value to the
Digital I/O interface.
4-46
trigger input (TRIGGER IN), or high voltage state
(HIGH VOLTAGE LAMP, HI-VOLT LAMP, only for
pin 14)
If Function is set to HIGH VOLTAGE LAMP, other
setup parameters on this dialog box is ignored.
Polarity of the input/output function, positive
(POSITIVE, POS.) or negative (NEGATIVE, NEG.)
Type of output trigger, edge (EDGE) or level (LEVEL)
and device action) (AFTER), before action (BEFORE),
or both (BOTH)
Pulse width of the output trigger, 10 s to 10 ms
Keysight B2961A/B2962A User's Guide, Edition 3
"Trigger key group" on page
