CAUTION
Requirements
NOTE
CAUTION
Maximum voltage and current
The test fixture and adapters must be used under the following limitations to prevent
damage.
Keysight N1294A-001: 250 V maximum, 42 V maximum for connecting
N1295A
Keysight N1294A-002: 250 V maximum, 42 V maximum for connecting
N1295A
Keysight N1295A: 42 V, 1.05 A maximum

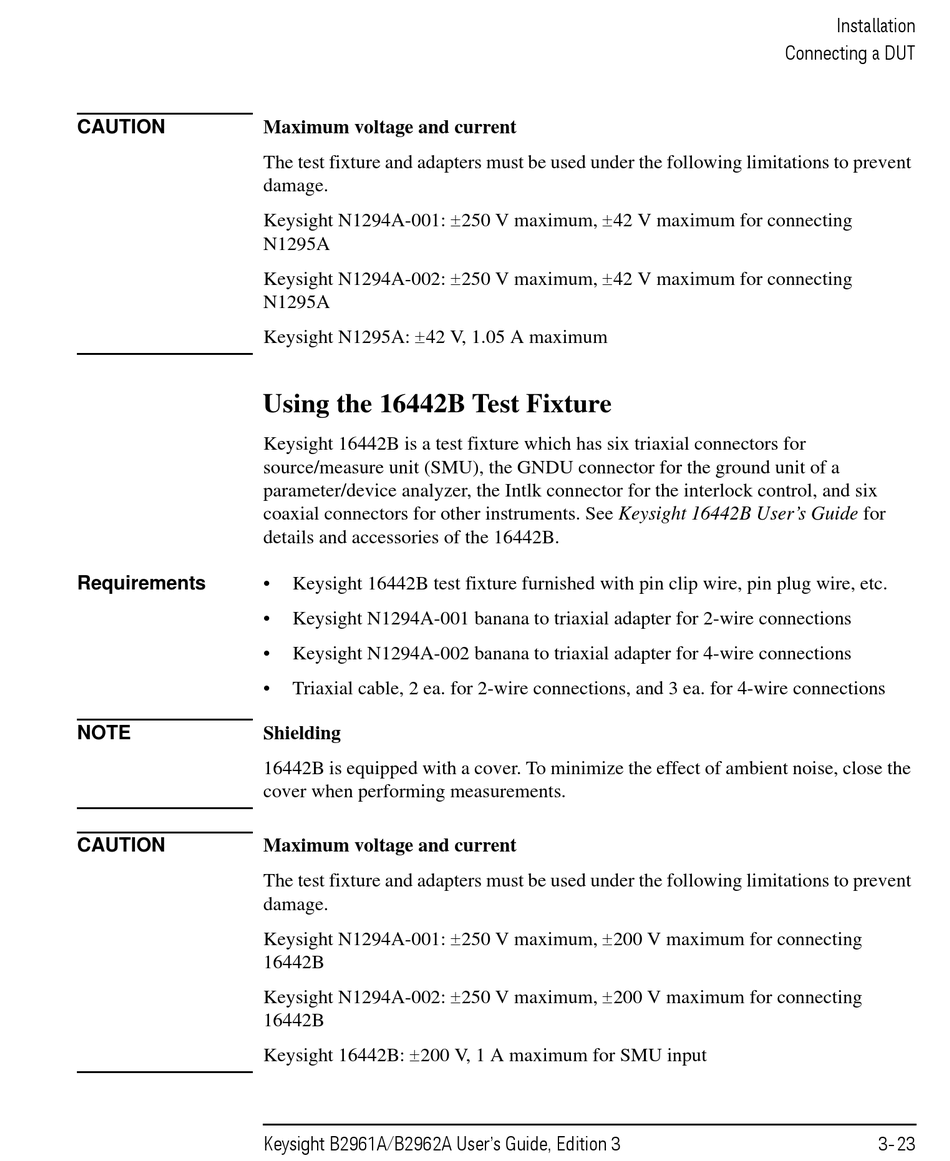

Using the 16442B Test Fixture

Keysight 16442B is a test fixture which has six triaxial connectors for
source/measure unit (SMU), the GNDU connector for the ground unit of a
parameter/device analyzer, the Intlk connector for the interlock control, and six
coaxial connectors for other instruments. See Keysight 16442B User's Guide for
details and accessories of the 16442B.
• Keysight 16442B test fixture furnished with pin clip wire, pin plug wire, etc.
• Keysight N1294A-001 banana to triaxial adapter for 2-wire connections
• Keysight N1294A-002 banana to triaxial adapter for 4-wire connections
• Triaxial cable, 2 ea. for 2-wire connections, and 3 ea. for 4-wire connections
Shielding
16442B is equipped with a cover. To minimize the effect of ambient noise, close the
cover when performing measurements.
Maximum voltage and current
The test fixture and adapters must be used under the following limitations to prevent
damage.
Keysight N1294A-001: 250 V maximum, 200 V maximum for connecting
16442B
Keysight N1294A-002: 250 V maximum, 200 V maximum for connecting
16442B
Keysight 16442B: 200 V, 1 A maximum for SMU input
Keysight B2961A/B2962A User's Guide, Edition 3
Installation
Connecting a DUT
3-23
