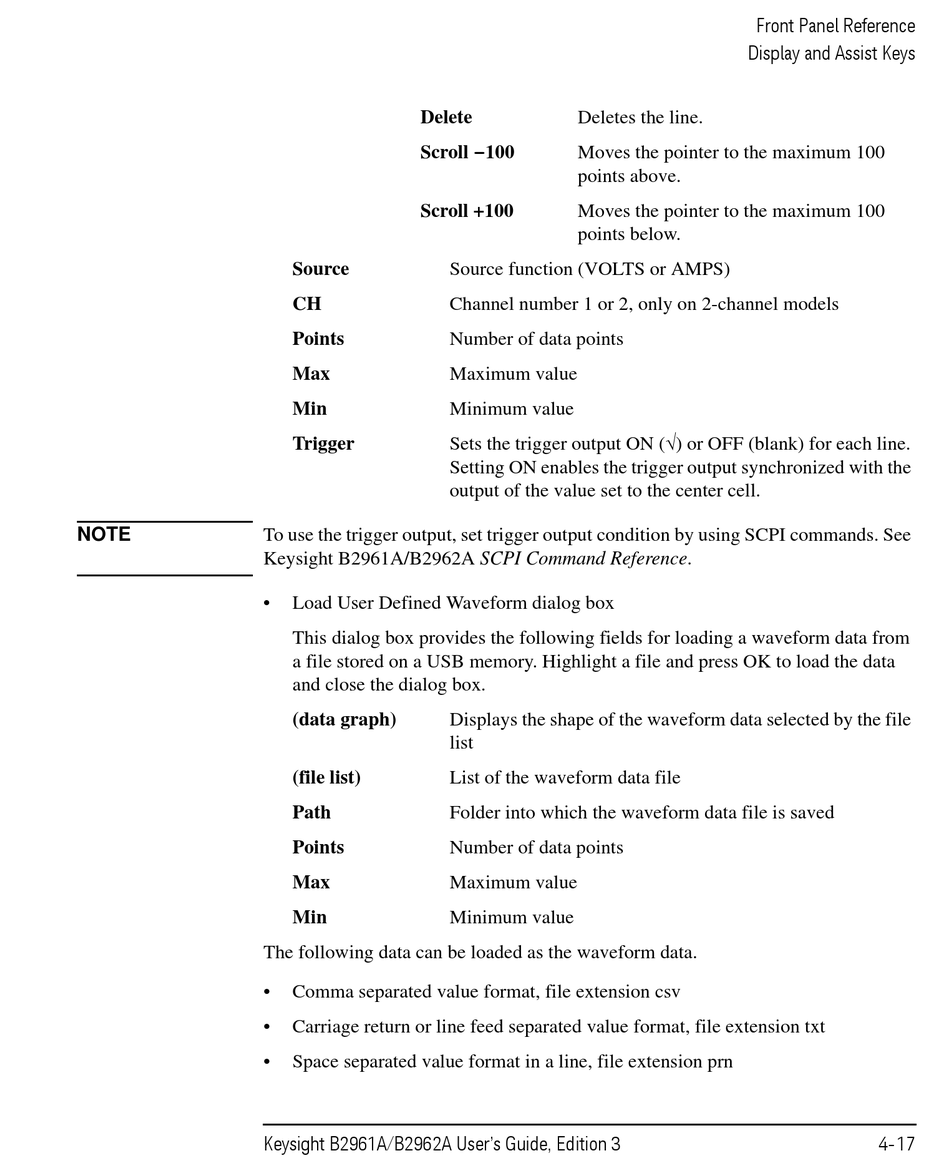

NOTE
Delete
Scroll -100
Scroll +100
Source
CH
Points
Max
Min
Trigger
To use the trigger output, set trigger output condition by using SCPI commands. See
Keysight B2961A/B2962A SCPI Command Reference.
• Load User Defined Waveform dialog box
This dialog box provides the following fields for loading a waveform data from
a file stored on a USB memory. Highlight a file and press OK to load the data
and close the dialog box.
(data graph)
(file list)
Path
Points
Max
Min
The following data can be loaded as the waveform data.
• Comma separated value format, file extension csv
• Carriage return or line feed separated value format, file extension txt
• Space separated value format in a line, file extension prn
Keysight B2961A/B2962A User's Guide, Edition 3
Deletes the line.
Moves the pointer to the maximum 100
points above.
Moves the pointer to the maximum 100
points below.
Source function (VOLTS or AMPS)
Channel number 1 or 2, only on 2-channel models
Number of data points
Maximum value
Minimum value
Sets the trigger output ON () or OFF (blank) for each line.
Setting ON enables the trigger output synchronized with the
output of the value set to the center cell.
Displays the shape of the waveform data selected by the file
list
List of the waveform data file
Folder into which the waveform data file is saved
Number of data points
Maximum value
Minimum value
