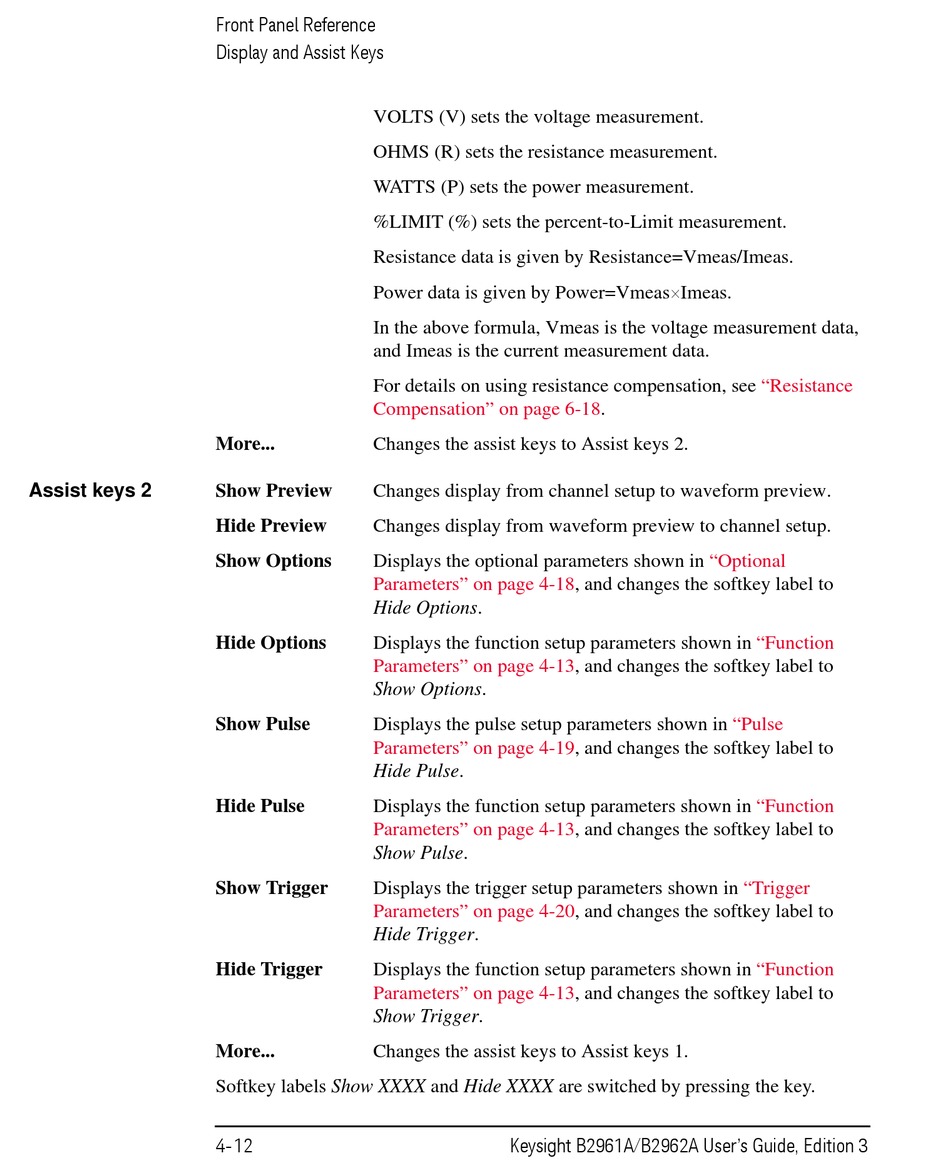

Keysight Technologies B2961A User Manual page 114

Assist keys 2
Front Panel Reference
Display and Assist Keys
VOLTS (V) sets the voltage measurement.
OHMS (R) sets the resistance measurement.
WATTS (P) sets the power measurement.
%LIMIT (%) sets the percent-to-Limit measurement.
Resistance data is given by Resistance=Vmeas/Imeas.
Power data is given by Power=VmeasImeas.
In the above formula, Vmeas is the voltage measurement data,
and Imeas is the current measurement data.
For details on using resistance compensation, see
Compensation" on page
More... Changes the assist keys to Assist keys 2.
Show Preview Changes display from channel setup to waveform preview.
Hide Preview Changes display from waveform preview to channel setup.
Show Options Displays the optional parameters shown in
Parameters" on page
Hide Options.
Hide Options Displays the function setup parameters shown in
Parameters" on page
Show Options.
Show Pulse Displays the pulse setup parameters shown in
Parameters" on page
Hide Pulse.
Hide Pulse Displays the function setup parameters shown in
Parameters" on page
Show Pulse.
Show Trigger Displays the trigger setup parameters shown in
Parameters" on page
Hide Trigger.
Hide Trigger Displays the function setup parameters shown in
Parameters" on page
Show Trigger.
More... Changes the assist keys to Assist keys 1.
Softkey labels Show XXXX and Hide XXXX are switched by pressing the key.
4-12
6-18.
4-18, and changes the softkey label to
4-13, and changes the softkey label to
4-19, and changes the softkey label to
4-13, and changes the softkey label to
4-20, and changes the softkey label to
4-13, and changes the softkey label to
Keysight B2961A/B2962A User's Guide, Edition 3
"Resistance
"Optional
"Function
"Pulse
"Function
"Trigger
"Function
