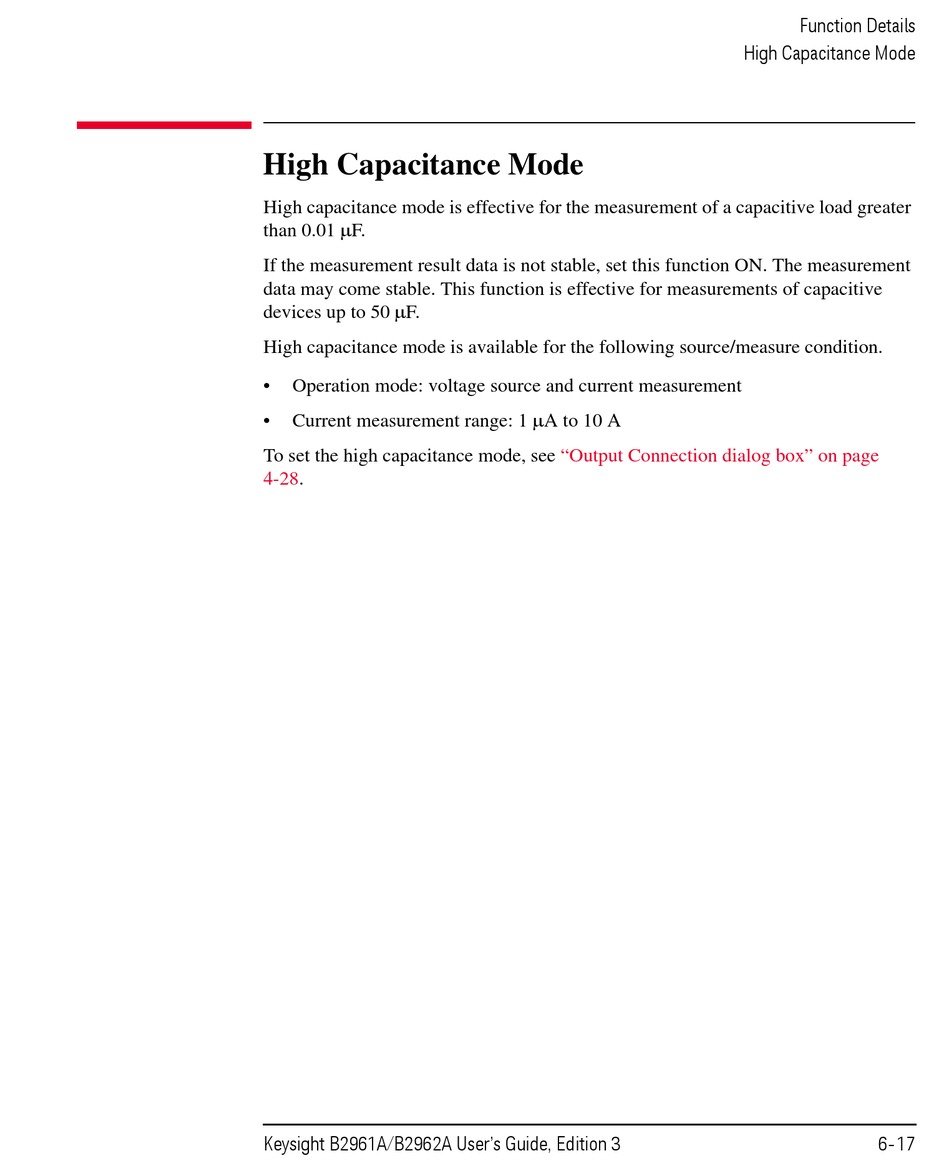

High Capacitance Mode

High capacitance mode is effective for the measurement of a capacitive load greater
than 0.01 F.
If the measurement result data is not stable, set this function ON. The measurement
data may come stable. This function is effective for measurements of capacitive
devices up to 50 F.
High capacitance mode is available for the following source/measure condition.
• Operation mode: voltage source and current measurement
Current measurement range: 1 A to 10 A
•
To set the high capacitance mode, see
4-28.
Keysight B2961A/B2962A User's Guide, Edition 3
"Output Connection dialog box" on page
Function Details
High Capacitance Mode
6-17
