Function Details

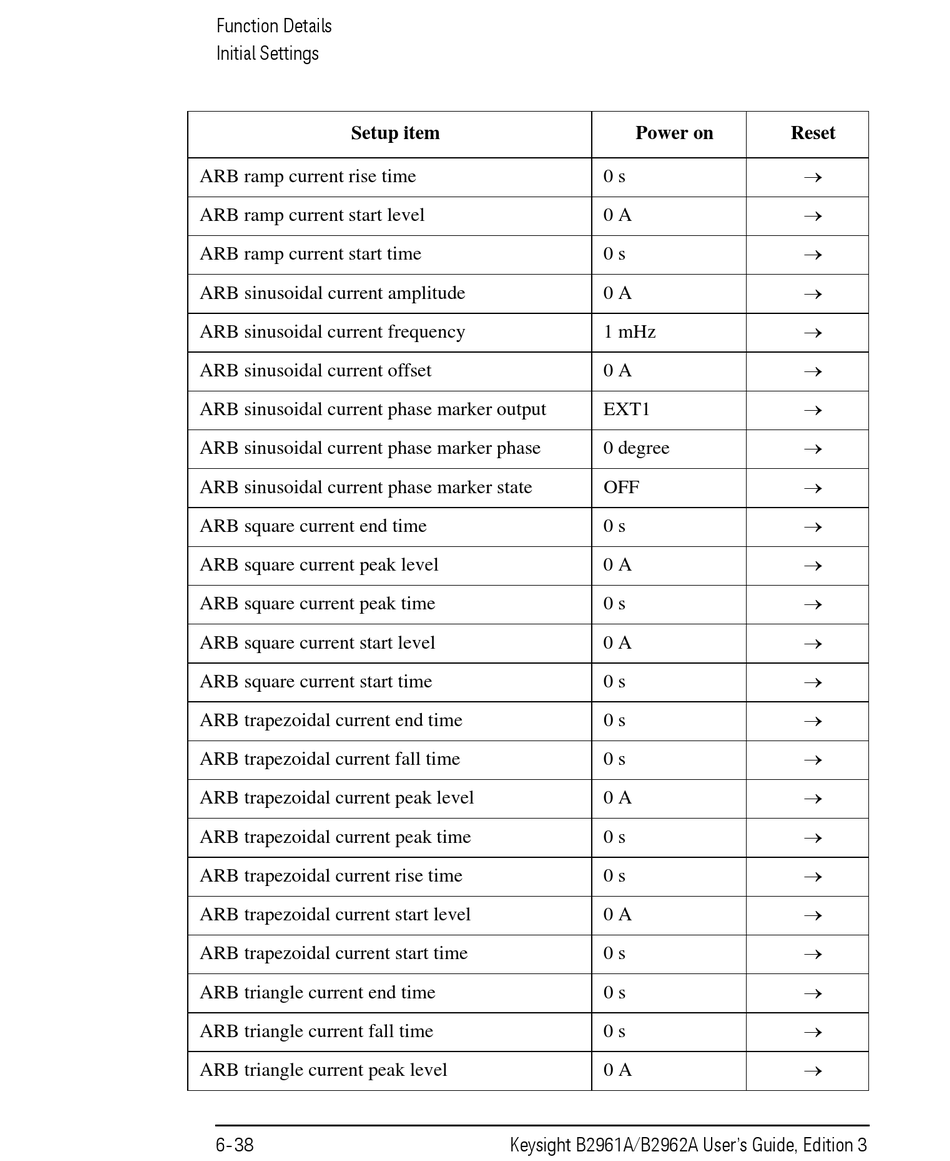

Initial Settings
Setup item
ARB ramp current rise time
ARB ramp current start level
ARB ramp current start time
ARB sinusoidal current amplitude
ARB sinusoidal current frequency
ARB sinusoidal current offset
ARB sinusoidal current phase marker output
ARB sinusoidal current phase marker phase
ARB sinusoidal current phase marker state
ARB square current end time
ARB square current peak level
ARB square current peak time
ARB square current start level
ARB square current start time
ARB trapezoidal current end time
ARB trapezoidal current fall time
ARB trapezoidal current peak level
ARB trapezoidal current peak time
ARB trapezoidal current rise time
ARB trapezoidal current start level
ARB trapezoidal current start time
ARB triangle current end time
ARB triangle current fall time
ARB triangle current peak level
6-38
Power on
0 s
0 A
0 s
0 A
1 mHz
0 A
EXT1
0 degree
OFF
0 s
0 A
0 s
0 A
0 s
0 s
0 s
0 A
0 s
0 s
0 A
0 s
0 s
0 s
0 A
Keysight B2961A/B2962A User's Guide, Edition 3
Reset
























