Checking The Brake; Checking The Emergency Stop - Still EXV 10 Basic Original Instructions Manual

Application
The truck moves forward.
– Activate the anti-crush safety device (2).
WARNING
The truck stops and shifts into fast reverse.
– Release the anti-crush safety device.
The truck stops.

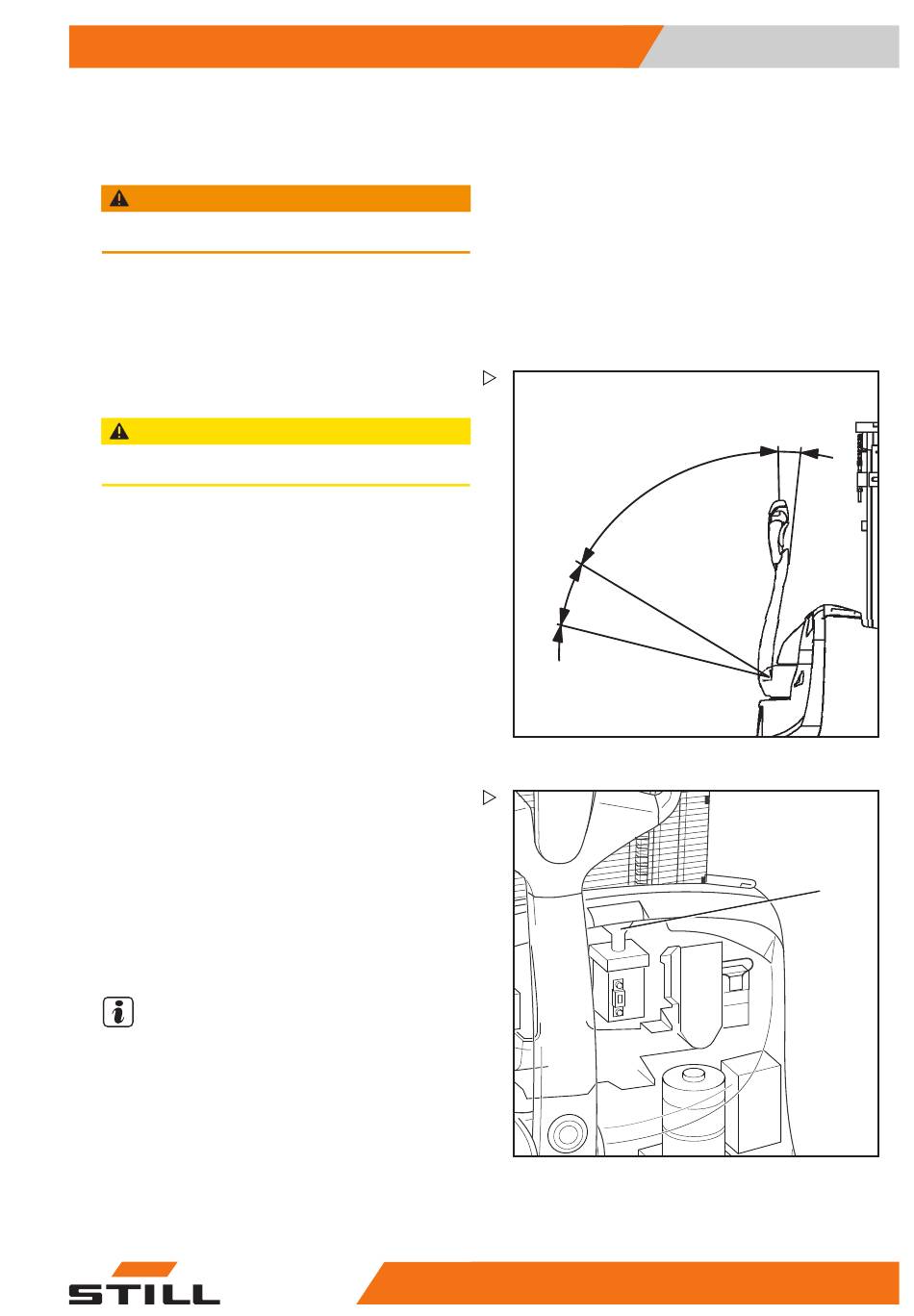

Checking the brake

CAUTION
Perform this check on a flat surface.
– While driving, tilt the tiller in areas (C) and
(A) to test brake response.
In these two areas, the truck is stopped and
the drive unit is no longer powered. Releasing
the tiller in driving area (B) sends the tiller into
the area (C) and cuts traction.

Checking the emergency stop

– Drive slowly forwards.
– Press emergency stop button (1).
The truck stops.
– Pull the emergency stop button (1).
The truck is functional.
NOTE
Ensure the stabilising wheels are correctly ad-
justed. This influences braking effectiveness.
