Technical description

Technical description

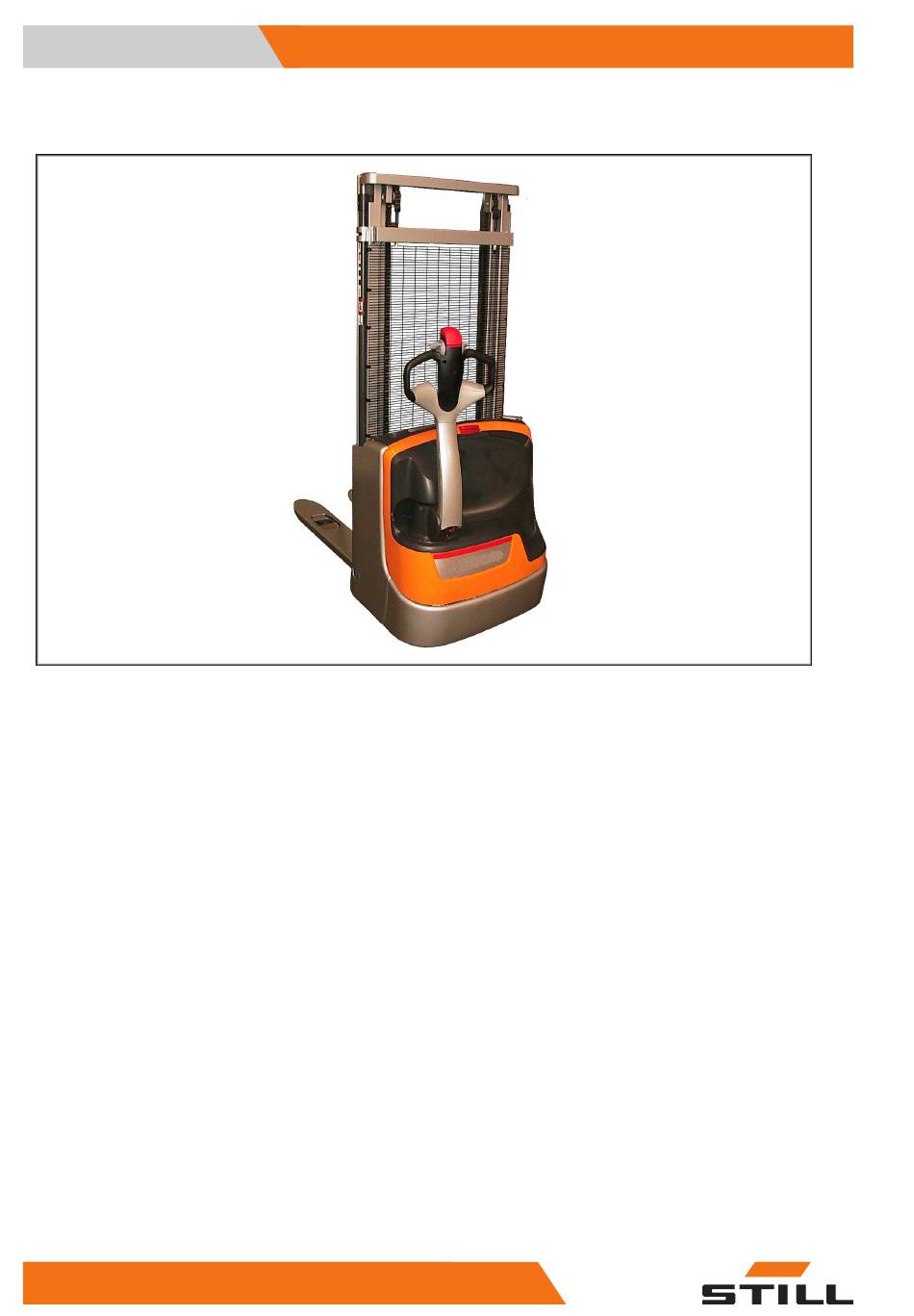

EXV10 Basic, EXV10, EXV12 and EXV12 i,
EXV14C and EXV14iC trucks are designed
to handle and stack pallets with a maximum
weight of 1000 kg (EXV10 Basic and EXV10),
1200 kg (EXV12 and EXV12 i) and 1400 kg
(EXV14C and EXV14iC) inside shops, ware-
houses and factories.
General characteristics
• The steering motor operates the drive wheel
using a reduction unit.
• Asynchronous steering motor, 1.2 kW
• Starting and accelerating without jerking
• Regenerative braking
• 6 km/h speed even fully laden
Raising
Nominal load:
• EXV10 Basic and EXV10: 1000 kg
• EXV12 and EXV12 i: 1200 kg
• EXV14C and EXV14iC: 1400 kg
24
Pump unit:
• EXV10 Basic: power 2.2 kW
• EXV10: power 1.5 kW
• EXV12 - EXV12 i - EXV14C - EXV14iC:
power 3.2 kW
Different types of lift mast:
• "Simplex" mast (E): non-telescopic with
central cylinder
• "Telescoping" mast (TE): two-stage tele-
scoping mast without free lift and two lateral
cylinders
• "NiHo" mast: two-stage telescoping mast
with free lift, lateral chains and two lateral
cylinders plus a central cylinder
• "Triplex" mast (TR): three-stage telescop-
ing mast with free lift, lateral chains and two
lateral cylinders plus a central cylinder
Driving
A long, robust and ergonomic tiller arm allows
the operator to drive the truck easily.
