Instruments and controls

Tiller positions

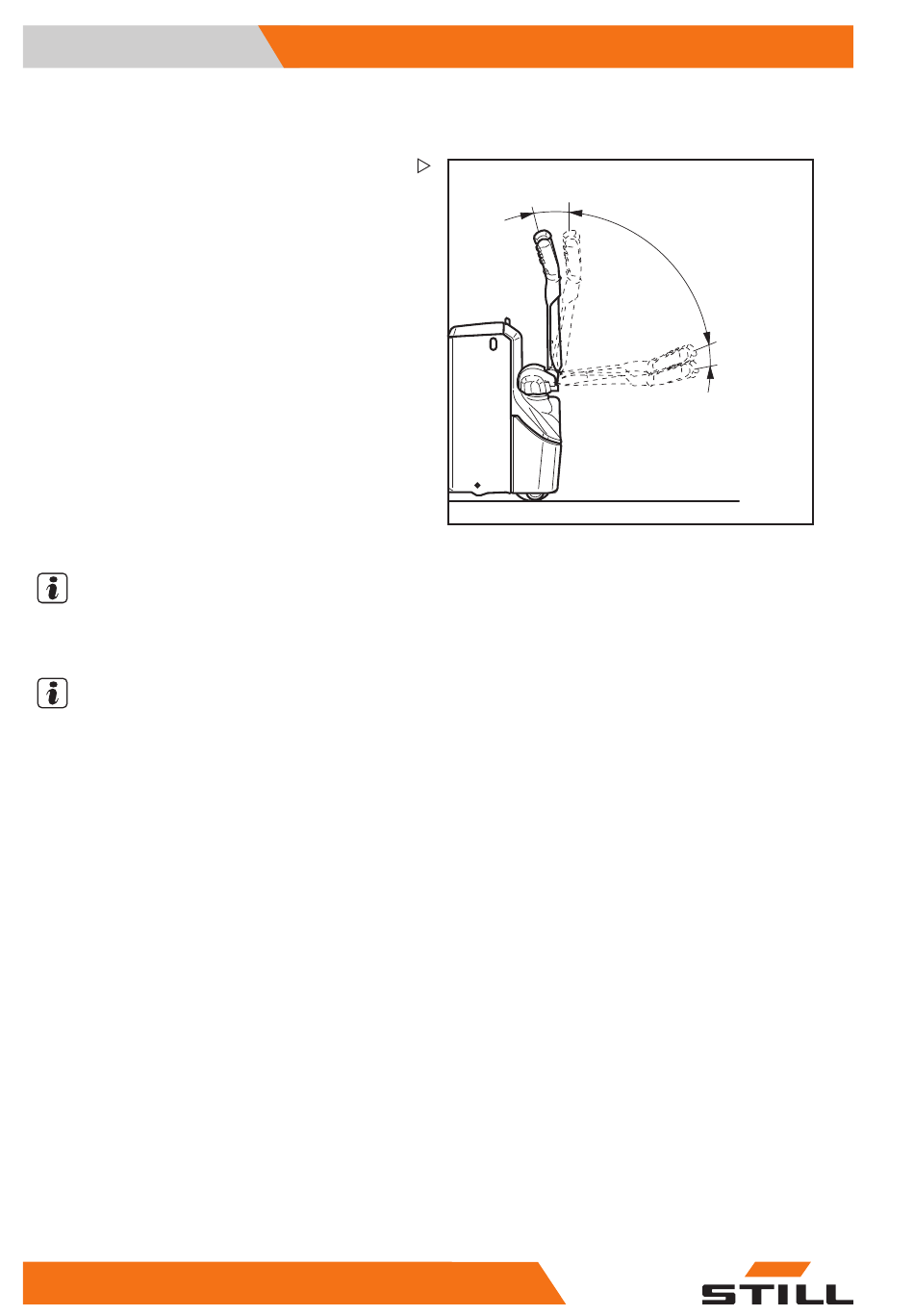

Position the tiller in accordance with the
truck functions
With the truck stopped, the two following tiller
positions are available:
• Position (1) = working position.
In this position, the operator can begin travel
using the throttle.
In this position, the operator can begin lifting
or lowering the forks using the appropriate
button.
In this position, the operator can raise
or lower the straddles; for versions with
straddle initial lift only.
• Position (2) = braking position.
In this position the drive is locked and the
parking brake is engaged.
NOTE
In this position, lifting and lowering of the
•
forks and straddles, if fitted, is blocked.
NOTE
When the tiller is released, it automatically
returns to position (A), the braking position.
